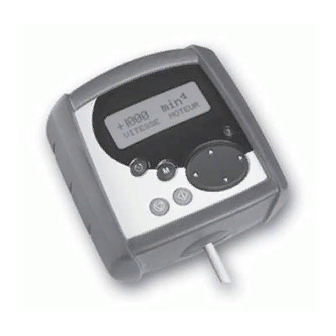

Leroy-Somer VARMECA 30 Parameter-Setting Manual

Leroy-Somer VARMECA 30 Parameter-Setting Manual

Variable speed motors and geared motors
Hide thumbs Also See for VARMECA 30:

Advertisement

Variable speed motors and geared motors
VARMECA 30
Parameter-setting manual
VARMECA 31/32
1
0-10 V/4-20 mA
2
speed reference
cal options or external reference)
3
4
Motor PTC input
5
Indication for local options
6
7
External fault input
8
Run FWD/Stop
9
Run REV/Stop
10
Selection of 0-10 V/4-20 mA
speed reference
11
Locking input
12
13
Indicator relay
14
3847 en - 2013.06 / i
10V
L1
ADI1
L2
Mains supply
0V
L3
ADI2
QS
24V
ADIO3
DI01
R+
Braking resistor
DI2
(optional)
DI3
R-
Dl4
Jumper to be removed if
Fi
Braking resistor option
+24V
connected
ENA
RL1
RL2
