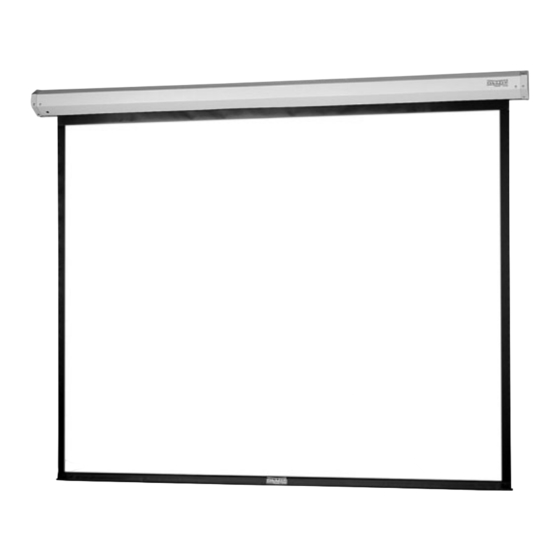

Da-Lite COSMOPOLITAN ELECTROL Instruction Book

For sizes up to 9'x12'
Hide thumbs Also See for COSMOPOLITAN ELECTROL:

Advertisement

Quick Links

The
POWER
In
PRESENTATION PRODUCTS
Instruction Book for
DA-LITE SCREEN COMPANY, INC.
3100 North Detroit Street
®
®
COSMOPOLITAN
ELECTROL
Post Office Box 137
Warsaw, Indiana 46581-0137
Phone: 574-267-8101
For Sizes Up To 9'x12'
800-622-3737
Fax: 574-267-7804
Toll Free Fax: 877-325-4832
www.da-lite.com
e-mail: info@da-lite.com

Advertisement

loading

Summary of Contents for Da-Lite COSMOPOLITAN ELECTROL

  • Page 1 POWER PRESENTATION PRODUCTS Instruction Book for DA-LITE SCREEN COMPANY, INC. 3100 North Detroit Street ® ® COSMOPOLITAN ELECTROL Post Office Box 137 Warsaw, Indiana 46581-0137 Phone: 574-267-8101 For Sizes Up To 9'x12' 800-622-3737 Fax: 574-267-7804 Toll Free Fax: 877-325-4832 www.da-lite.com...
  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS When using your video equipment, basic safety precautions should always be followed, including the following: 1. Read and understand all instructions before using. 2. Position the cord so that it will not be tripped over, pulled, or contact hot surfaces. 3.
  • Page 3 COSMOPOLITAN ELECTROL INSTALLATION ® ® Overall length A=fabric width + 8". 3/4" DIAMETER HOLE FOR Length B is the distance between wall mounting holes WALL INSTALLATION at back of end caps and is the fabric width + 6-1/2". MOTOR END 4"...
  • Page 4 Surface travel is stopped automatically in the fully opened and closed positions by limit switches that are properly adjusted at DA-LITE. Should it be necessary to adjust for more or less picture drop (viewing area), proceed in the following manner: NOTE: Use a screwdriver or allen wrench to make adjustments.
  • Page 5: Wiring Diagram

    Surface travel is stopped automatically in the fully opened and closed positions by limit switches that are properly adjusted at DA-LITE. Should it be necessary to adjust for more or less picture drop (viewing area), proceed in the following manner: NOTE: Use a screwdriver or allen wrench to make adjustments.
  • Page 6 SCREEN ADJUSTMENT FOR SCREENS WITH A BUILT-IN LOW VOLTAGE CONTROL 1. Remove the cover plate from the 3-button wall switch and remove the switch from the junction box. 2. Locate small 3-position switch on back of wall switch. See Figure 4 for 120V screens or Figure 5 for 220/240V screens.
  • Page 7 COSMOPOLITAN ® ELECTROL ® INSTALLATION 120V WIRING DIAGRAM WITH OPTIONAL BUILT-IN OPTIONAL IR AND RF LOW-VOLTAGE WALL SWITCH REMOTE CONTROL LOW VOLTAGE CONTROL UP DN GND +5V WHITE (COMMON) BLACK (HOT) MOTOR STOP RJ22 RJ22 120VAC 60HZ GREEN DOWN 3-POSITION RJ22 SWITCH GROUND–MUST BE...
  • Page 8: Troubleshooting

    TROUBLESHOOTING SYMPTOM CAUSE SOLUTION 1. Screen will not operate. (a) Blown fuse. (a) Replace fuse. Motor does not hum. (b) Tripped circuit breaker. (b) Reset circuit breaker. (c) No power to operating switch (c) Check above. Tighten all loose or junction. wire connections.
