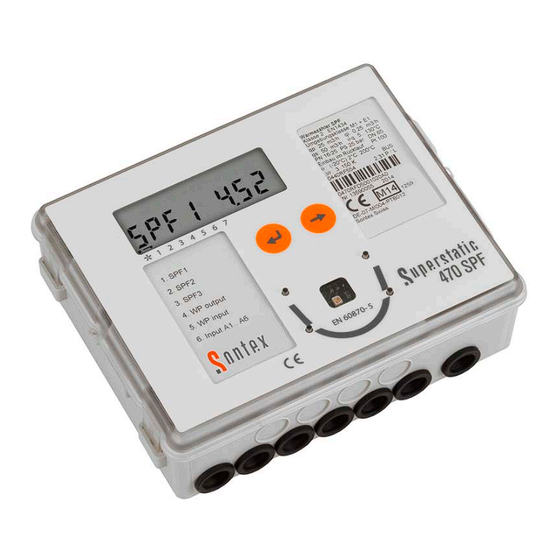

Page 4: General
1. General 1.1 Introduction This instruction describes the operation and installation of the Superstatic 470 SPF and 479 SPF, together with the technical data and specifications for the Superstatic 470/479 SPF. The static flow sensor and the computing unit may only be operated within the range of conditions shown on the rating plate and in the technical specification. -
Page 5: Instructions For Installation
Primary address Identification number Reaction time Parity Digital inputs: Counting type: deactivated/pulse counting/Operating time counting/Time factor for each digital input Determination of the units Pulse factor value 0470P004 Manual Superstatic 470 SPF 02-03-2015... -
Page 6: Differences Between Spf1, Spf2, Spf3
Example of configuration: Electric Electric Electric Electric meter meter meter meter Digital inputs Module Useful energy Umwälz- Circulating pumpe pump and hot water Heat pump Environmental heat Superstatic 470/479 Losses 0470P004 Manual Superstatic 470 SPF 02-03-2015... -
Page 7: Functional Description
For cleaning purposes use only a cloth moistened with water. Do not use cleaning fluids or solvents. The connection cables must not be secured to the pipe and under no circumstances may they be insulated. 0470P004 Manual Superstatic 470 SPF 02-03-2015... -
Page 8: Cable Connections
Make sure that all the earthing connection points (external power supply) of the system are equipotential. Voltage supply modules The voltage supply module is connected by means of a cable to the main connection board of the Superstatic 470/479 computing unit. 0470P004 Manual Superstatic 470 SPF 02-03-2015... -
Page 9: Error Messages
The Superstatic 470/479 must be discarded in an environmentally-friendly way or returned to the manufacturer for disposal. Our components are then compliant with the criteria governing electronic waste. If you effect disposal yourself please enquire about recycling possibilities in your particular region. 0470P004 Manual Superstatic 470 SPF 02-03-2015... -
Page 10: Use Of The Superstatic 470/479
Performance Performance Performance Heat energy Electrical energy Digital input energy factor SPF1 factor SPF2 factor SPF3 emitted absorbed configuration 1253.925 SPF 1 4.25 SPF 2 4.20 SPF 3 4.31 E0 129.63 129.63 00000063 0470P004 Manual Superstatic 470 SPF 02-03-2015... -
Page 11: Main Display
Current day -1 SPF 3 4. 27 SPF1 4. . 25 Current day -2 SPF 3 4. 27 01 . 01 . 2013 01 . 01 . 2014 Current day -31 SPF 3 4. 27 0470P004 Manual Superstatic 470 SPF 02-03-2015... - Page 12 Used with input « Binary counting ». Time IF : Used with input « Time counting ». State IF : Not used presently. Const IF : Used with input « Amount counting ». OFF : Input disabled. 0470P004 Manual Superstatic 470 SPF 02-03-2015...
-
Page 13: Software Prog470 / Prog479
The Prog470/Prog479 software is supplied by Sontex SA by e-mail or can be downloaded from http://www.sontex.ch/downloads_e.html. The data file must be downloaded into a folder on your PC (e.g. in C: \ Sontex \ Prog470\ Vx.xxx). Make sure that none of the data files contained in this folder are write-protected. If some data files are write-protected the characteristics of the data files must be altered (via Windows Explorer). -
Page 14: Operating Instructions For Prog470/Prog479 Software
The computing unit 470/479 must be closed. Fig. 2: Communication interface If communication problems are experienced the filter settings must be altered as follows: 0470P004 Manual Superstatic 470 SPF 02-03-2015... -
Page 15: Modules" Tab
As soon as the computing unit has been read by the software Prog470/Prog479, select the “Modules” tab and detect the SPF module. The configuration parameters are displayed in the “Modules” tab of the Prog470/Prog479 software. 0470P004 Manual Superstatic 470 SPF 02-03-2015... - Page 16 SPF1 is calculated. Here: 3.4. to 3.3. of the following year. “SPF Input” contains the inputs used in the SPF function (sum of electrical energies). Here: sum of inputs A3, A4 and A6. 0470P004 Manual Superstatic 470 SPF 02-03-2015...
- Page 17 The unit used is the minute. This value is independent of the electrical energy consumed by the heating pump. The counting can be by open or close contact. 0470P004 Manual Superstatic 470 SPF 02-03-2015...
- Page 18 Inputs A1 and A2 Inputs A1-A2 only allow “Binary Counting” and are controlled under the menu point “Inputs/Outputs”. The inputs can be configured in the long (<=5 Hz) or fast (>5 Hz) mode. 0470P004 Manual Superstatic 470 SPF 02-03-2015...
- Page 19 Notes 0470P004 Manual Superstatic 470 SPF 02-03-2015...
- Page 20 Technical Support For technical support, please contact the local Sontex representations or Sontex SA directly. Sontex hotline: sontex@sontex.ch, +41 32 488 30 04 Sontex SA 2013 0470P004 Manual Superstatic 470 SPF 02-03-2015 0470P004 Manual Superstatic 470 SPF 02-03-2015...
