Paradigm Flush Wall Switch
AUTOMATE

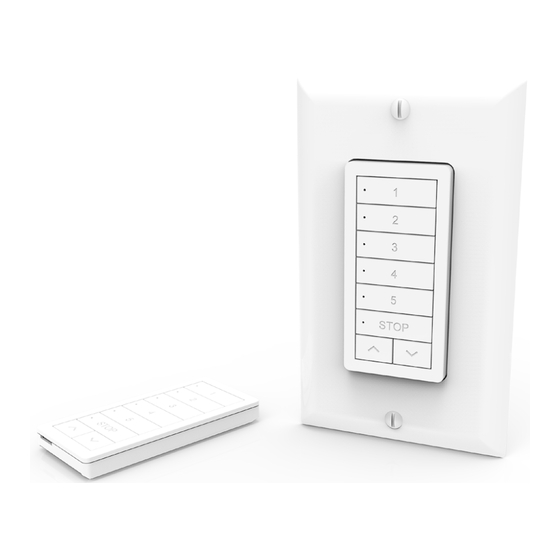

| Paradigm flush wall switches feature a contemporary design and a
™
wirefree deployment, making them retrofit ready for any location. Paradigm 5 channel
switches are perfect for individual shade, room and whole home control.
The Paradigm flush mount switch can be mounted on top of any surface. It's slim profile
eliminates the need for any holes to be cut in walls.
FEATURES:
• Multi channel selectable
• Retrofit Ready
• Group Control
• Compatible with screwless decorator cover plates
• Optionally functions as handheld remote
™
433 MHz
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for rollease acmeda AUTOMATE Series
Summary of Contents for rollease acmeda AUTOMATE Series
- Page 1 AUTOMATE ™ Paradigm Flush Wall Switch 433 MHz AUTOMATE | Paradigm flush wall switches feature a contemporary design and a ™ wirefree deployment, making them retrofit ready for any location. Paradigm 5 channel switches are perfect for individual shade, room and whole home control. The Paradigm flush mount switch can be mounted on top of any surface.
-
Page 2: Table Of Contents
FUNCTIONAL OVERVIEW 4.1 Buttons 4.2 Selecting a channel - (multi channel remote PROGRAMMING 5.1 Using motor P1 button 5.2 Using pre-existing controller 5.3 Locking the limit setting function TROUBLESHOOTING 2 | Automate ROLLEASE ACMEDA Programming Instructions | Flush Wall Switch ™... -
Page 3: Technical Data / Pack Contents
2 x Wall fixing screws & anchors 1 x Mountable holder 1 x Instruction manual 1 x 3V – CR2430 Battery 1 x White single gang Decorator style wall plate (incl 2 mounting screws) ROLLEASE ACMEDA Programming Instructions | Flush Wall Switch | 3 Automate ™... -
Page 4: Safety
Keep clear when in operation. • Replace battery with correctly specified type. Rollease Acmeda declares this equipment is in compliance with the essential requirements and other relevant provisions of R&TT EC Directive 1999/5/EC Statement Regarding FCC Compliance This device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. -
Page 5: Installation
Best Practice tip; Program Switch to motors prior to installation, then test radio performance In the location the switch will be installed in, to insure best performance Use supplied fasteners and anchors as needed to attach base. ROLLEASE ACMEDA Programming Instructions | Flush Wall Switch | 5 Automate... -
Page 6: Functional Overview
Blue LEDs will illuminate indicating channel Switch requires that at least one channel be selected at all times. First select an additional channel, then deselect selection. channel you don’t want to operate 6 | Automate ROLLEASE ACMEDA Programming Instructions | Flush Wall Switch ™... -
Page 7: Programming
• Ensure that each motor you want to group is also assigned to another channel by itself Select a channel on Hold P1 button on motor Hold STOP on switch. switch. head. Motor Response Motor Response RELEASE P1 ROLLEASE ACMEDA Automate Programming Instructions | Flush Wall Switch | 7 ™... -
Page 8: Using Pre-Existing Controller
15 seconds. for 15 seconds. Release STOP Release STOP button. button. Locked limit Unlocked limit settings. settings. Remote response Remote response All lights flash x1 All lights flash x2 8 | Automate Programming Instructions | Flush Wall Switch ROLLEASE ACMEDA ™... -
Page 9: Troubleshooting
DOWN and STOP buttons. NOTE The switch can be used to set/adjust limits. Please refer to the motor instructions for limit setting functions. ROLLEASE ACMEDA Automate Programming Instructions | Flush Wall Switch | 9 ™... - Page 10 NOTES 10 | Automate Programming Instructions | Flush Wall Switch ROLLEASE ACMEDA ™...
- Page 11 NOTES ROLLEASE ACMEDA Automate Programming Instructions | Flush Wall Switch | 11 ™...
- Page 12 ROLLEASE ACMEDA AUSTRALIA Queensland Branch 110 Northcorp Boulevard, Unit 2/62 Borthwick Avenue, Broadmeadows VIC 3047 Murarrie QLD 4172 T +61 3 9355 0100 | F +61 3 9355 0110 ROLLEASE ACMEDA 200 Harvard Avenue Stamford, CT 06902 6320 T +1 203 964 1573 | F +1 203 964 0513...
