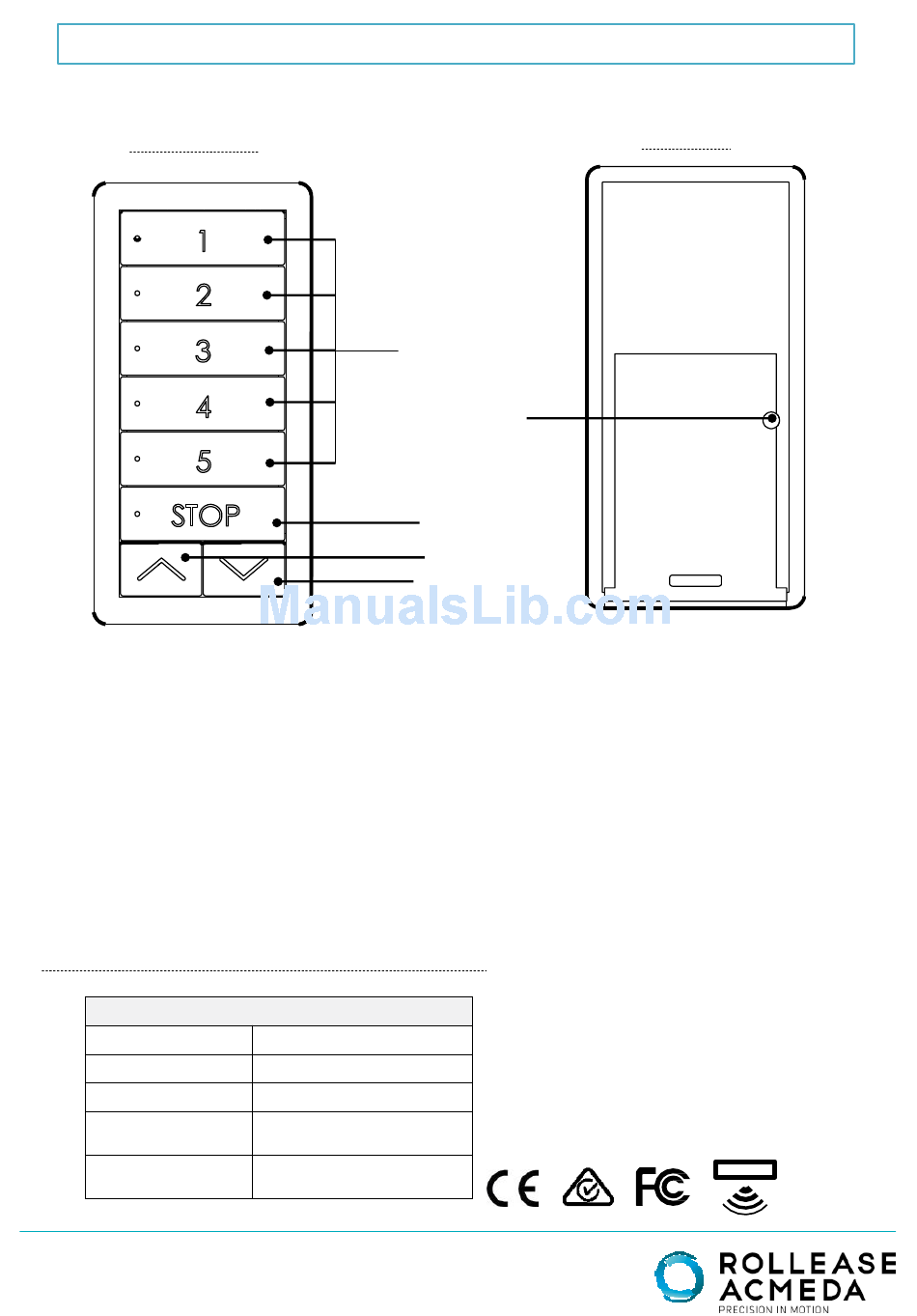

AUTOMATE PARADIGM FLUSH WALL SWITCH
FRONT

PACK CONTENTS

Switch
Fixing screws & anchors
Instruction Manual
3V – CR2430 Battery

TECHNICAL SPECIFICATIONS

Voltage:
Frequency:
Transmitting Power: 10 milliwatt
Ambient Operating
Temperature:
Transmission
Distance:
Page. 1 of 6
CHANNELS
P2 BUTTON
STOP
DOWN
3V (CR2430)
433.92 MHz
-10˚C - 50˚C
up to 200 meters (open
space)
UP
BACK
433MHz

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Paradigm and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for rollease acmeda Paradigm

  • Page 1 AUTOMATE PARADIGM FLUSH WALL SWITCH BACK FRONT CHANNELS P2 BUTTON STOP DOWN PACK CONTENTS • Switch • Fixing screws & anchors • Instruction Manual 3V – CR2430 Battery • TECHNICAL SPECIFICATIONS Voltage: 3V (CR2430) Frequency: 433.92 MHz Transmitting Power: 10 milliwatt -10˚C - 50˚C...
  • Page 2 CO NT ENT S Installing switch batterY Mounting switch Select channel Pairing to motor Group Control Adding & deleting switches. Adding & deleting channels. Troubleshooting U.S. Radio Frequency FCC Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation.
  • Page 3 INSTALL SWITCH BATTERY Install battery with Remove cover positive(+) side from switch: facing up Insert a flat-tip screw driver into the gap between Replace cover covers located by placing on the bottom of halves together switch. Twist and pressing driver as shown firmly until to separate snaps engage...
  • Page 4 1. SELECT CHANNEL Detail View of Switch Controls To select a To de-select channel or a channel: group of Press channels: channel Press button(s) desired until channel channel button(s) disappears until LED’s appear 2. PAIRING SWITCH TO M OT OR ACTIVATE PAIRING MODE ON MOTOR (Non-Battery Within 4sec,...
  • Page 5 4. ADDING & DELETING SWITCHES A = Existing Controller A = Existing Controller ADDING DELETING B = Controller to be added B = Controller to be deleted Press P2 (1sec) on Press P2 (1sec) on Press P2 (1sec) on existing controller existing controller controller to be added or deleted...
  • Page 6: Troubleshooting

    TROUBLESHOOTING PROBLEM CAUSE REMEDY Motor is not responding Switch battery is dis- Replace battery charged Battery is inserted incorrectly Check battery polarity Radio interference / Shielding Ensure switch is positioned away from metal objects and that aerial on motor or receiver is kept straight and away from metal.
