AUTOMATE
Paradigm Flush Wall Switch
AUTOMATE

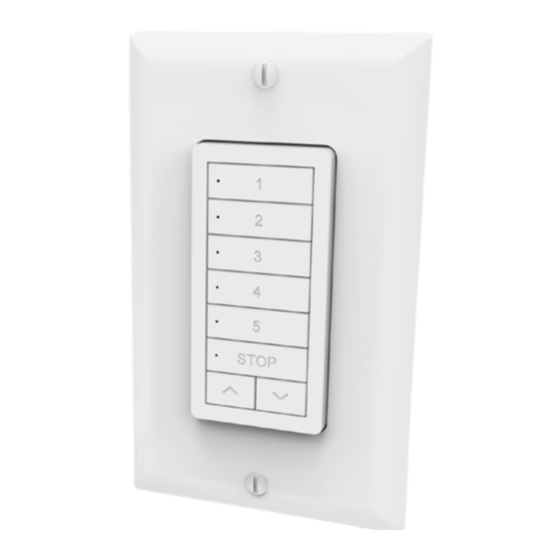

| Paradigm flush wall switches feature a contemporary design and a
™
wirefree deployment, making them retrofit ready for any location. Paradigm 5 channel
switches are perfect for individual shade, room and whole home control.
The Paradigm flush mount switch can be mounted on top of any surface. Its slim profile
eliminates the need for any holes to be cut in walls.
FEATURES:
• Multi channel selectable
• Retrofit Ready
• Group Control
• Compatible with screwless decorator cover plates
• Optionally functions as handheld remote
™
433 MHz

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AUTOMATE Paradigm and is the answer not in the manual?

Questions and answers

Related Manuals for rollease acmeda AUTOMATE Paradigm

Summary of Contents for rollease acmeda AUTOMATE Paradigm

  • Page 1 AUTOMATE ™ Paradigm Flush Wall Switch 433 MHz AUTOMATE | Paradigm flush wall switches feature a contemporary design and a ™ wirefree deployment, making them retrofit ready for any location. Paradigm 5 channel switches are perfect for individual shade, room and whole home control. The Paradigm flush mount switch can be mounted on top of any surface.

  • Page 2: Table Of Contents

    7.1 Adjust upper limit 7.2 Adjust lower limit FAVORITE POSITIONING 8.1 Set a favorite position 8.2 Send shade to favorite position 8.3 Delete favorite position TROUBLE SHOOTING NOTES 2 | Automate ROLLEASE ACMEDA Programming Instructions | Flush Wall Switch ™...

  • Page 3: Technical Data / Pack Contents

    Voltage: 3V (CR2430) Frequency: 433.92 MHz Transmitting Power: Less than 10mW Ambient Operating Temperature: -10°C [°F] -50°C [122°F] Transmission Distance: 20m - 100m [65' - 328'] (open space) ROLLEASE ACMEDA Programming Instructions | Flush Wall Switch | 3 Automate ™...

  • Page 4: Safety

    1) L’appareil ne doit pas produire de brouillage; Do not dispose of in general waste. FCC ID: 2AGGZMTRFWS5FLUSH Please recycle batteries and damaged electrical products appropriately. 21769-MTRFWS5FLUS 4 | Automate ROLLEASE ACMEDA Programming Instructions | Flush Wall Switch ™...

  • Page 5: Installation

    Note: FOR CHILD SAFETY, SCREW MUST BE USED On Startup, Remove Battery AT ALL TIMES TO SECURE BATTERY COVER isolation tab (remove cover screw if needed). IN PLACE. ROLLEASE ACMEDA Programming Instructions | Flush Wall Switch | 5 Automate ™...

  • Page 6: Magnetic Wall Clip

    Use supplied fasteners and anchors as needed to attach the base and cover. Switch is secured unless the Cover is removed. Safely dispose of the unused Magnetic Wall Clip. 6 | Automate ROLLEASE ACMEDA Programming Instructions | Flush Wall Switch ™...

  • Page 7: Functional Overview

    Blue LEDs will illuminate indicating channel selection. Switch requires that at least one channel be selected at all times. First select an additional channel, then deselect channel you don't want to operate. ROLLEASE ACMEDA Programming Instructions | Flush Wall Switch | 7 Automate ™...

  • Page 8: Programming

    • Ensure that each motor you want to group is also assigned to another channel by itself Hold P1 button on motor Select a channel on Hold STOP on switch. switch. head. Motor Response Motor Response RELEASE P1 Approx. Approx. 8 | Automate ROLLEASE ACMEDA Programming Instructions | Flush Wall Switch ™...

  • Page 9: Using Pre-Existing Controller

    Select channel that Select desired channel on new switch. Press P2 on operates motor on existing switch. existing switch. new switch. Press P2 Motor response Motor response Motor response ROLLEASE ACMEDA Programming Instructions | Flush Wall Switch | 9 Automate ™...

  • Page 10: Initial Set Up

    IMPORTANT For FT Motors, the bottom limit should be set ~ 1.38 in. (35mm) below the Ultra-Lock to disengage the auto lock mechanism when the shade is raised. 10 | Automate ROLLEASE ACMEDA Programming Instructions | Flush Wall Switch ™...

  • Page 11: Locking The Limit Setting Function

    All lights flash x 2 IMPORTANT The locked setting will prevent any multi-button functions. These include reversing direction before setting limits, limit setting and toggling between tilt and roller modes. ROLLEASE ACMEDA Programming Instructions | Flush Wall Switch | 11 Automate ™...

  • Page 12: Adjusting Limits

    IMPORTANT For FT Motors, the bottom limit should be set ~ 1.38 in. (35mm) below the Ultra-Lock to disengage the auto lock mechanism when the shade is raised. 12 | Automate ROLLEASE ACMEDA Programming Instructions | Flush Wall Switch ™...

  • Page 13: Favorite Positioning

    Send shade to favorite position Approx. Delete favorite position Press P2 on controller. Press STOP on controller. Press STOP on controller. Motor Response Motor Response Motor Response DOWN ROLLEASE ACMEDA Programming Instructions | Flush Wall Switch | 13 Automate ™...

  • Page 14: Trouble Shooting

    Press and hold STOP button for 15 Motor will pair, but can not set Control must be unlocked limits. to set limits or perform any seconds, until locked state changes. multi-button functions. 14 | Automate ROLLEASE ACMEDA Programming Instructions | Flush Wall Switch ™...

  • Page 15: Notes

    NOTES ROLLEASE ACMEDA Programming Instructions | Flush Wall Switch | 15 Automate ™...
  • Page 16 ROLLEASE ACMEDA ROLLEASE ACMEDA AUSTRALIA 750 East Main Street, 7th Floor 110 Northcorp Boulevard, Queensland Branch Stamford, CT 06902 Broadmeadows VIC 3047 Unit 2/62 Borthwick Avenue, T +1 203 964 1573 | F +1 203 358 5865 T +61 3 9355 0100 | F +61 3 9355 0110...
