AUTOMATE

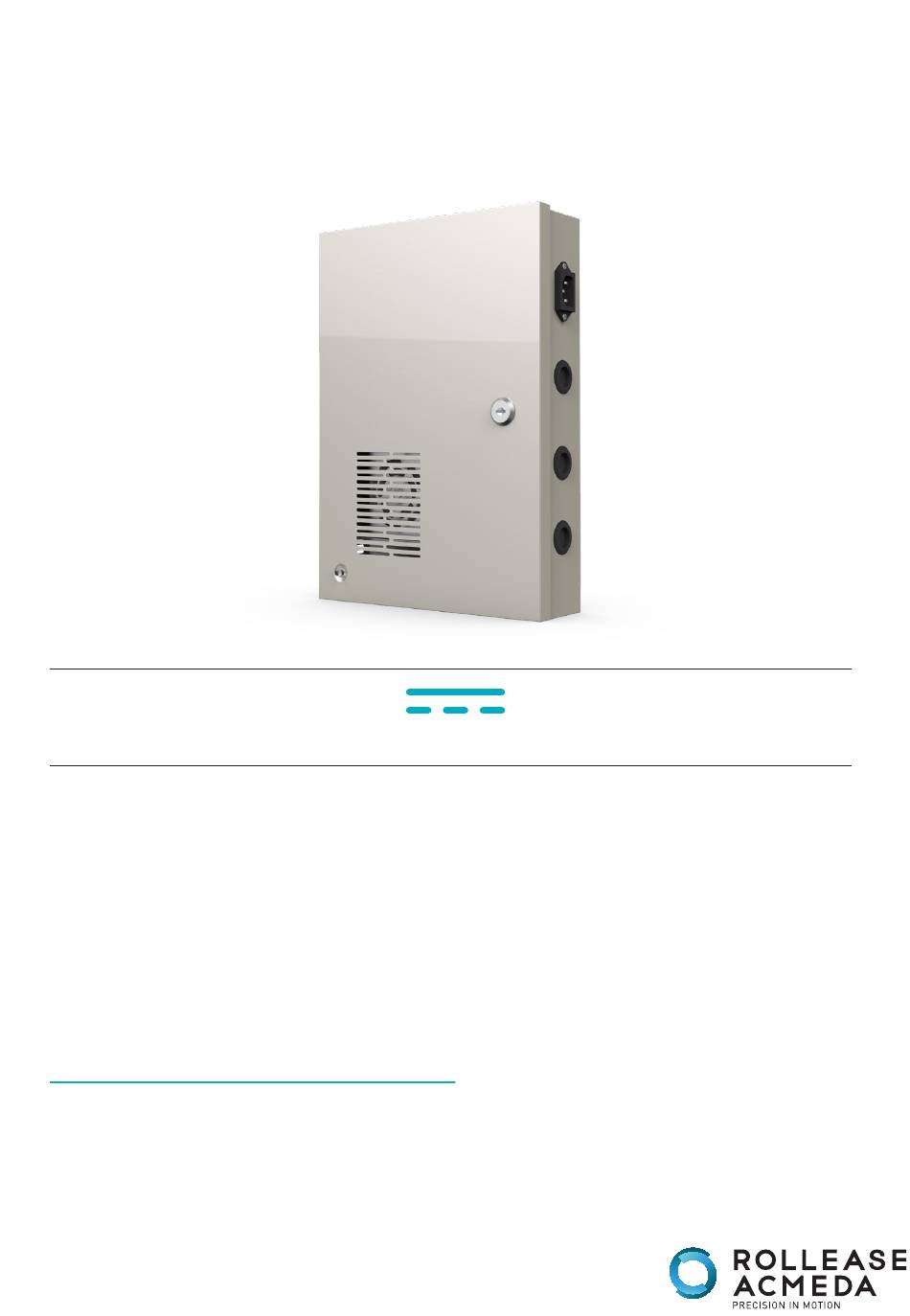

DC Power Distribution Panel
AUTOMATE | DC Power Distribution Panel provides power for up to 18 separate DC ARC motors.
Higher 15V output allows for greater cable lengths from motor to power panel, freeing up routing
options within an installation.
Removes the need for multiple individual power adaptors for each DC motor in an installation,
combining each power source into a single location. Channels may also be wired in parallel to
provide additional power to larger motors. Additional information and updates are available at
https://www.rolleaseacmeda.com
FEATURES:
•
Capacity for up to 18 ARC DC motors (18mm, 25mm, and 28mm motors)
•
Ability to parallel connect motor supplies for higher current motors (35mm and 45mm motors)
•
LED status indication for checking whether power is being applied to panel
•
LED status indication for each individual motor supply
INSTR. MT03-0301-411005 V1.2 APRIL 2019
™
DC POWER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AUTOMATE Series and is the answer not in the manual?

Questions and answers

Related Manuals for rollease acmeda AUTOMATE Series

Summary of Contents for rollease acmeda AUTOMATE Series

  • Page 1 AUTOMATE ™ DC Power Distribution Panel DC POWER AUTOMATE | DC Power Distribution Panel provides power for up to 18 separate DC ARC motors. Higher 15V output allows for greater cable lengths from motor to power panel, freeing up routing options within an installation.

  • Page 2: Table Of Contents

    3. 18 Channels with Individual Terminal Blocks 4. IEC-C14 Connector for Mains Power Input 5. 18 Individual fuses for channel protection 6. 18 Channel Status LEDs 7. Plastic Plugs (For cable routing) ROLLEASE ACMEDA 2 | Automate Installation Instructions | DC Power Distribution Panel ™...
  • Page 3 Save these instructions for future reference. Do not dispose of in general waste. Please recycle batteries and damaged electrical products appropriately. 5005833 5 0 1 4 3 6 0 ROLLEASE ACMEDA 3 | Automate Installation Instructions | DC Power Distribution Panel ™...

  • Page 4: Installation

    Before connection of any motors to the power distribution panel, check cable lengths and wire gauge (AWG), against this table in order to ensure system will operate to specification. ROLLEASE ACMEDA MOTORS MTDCRF45-10 MTDCRF18-0.2 MTDCRF25-1.1...

  • Page 5: Motor Power Distribution Setup

    All motor connections must be made before the power distribution panel can have power applied • Use of parallel connections ensure power supply cannot be overloaded Cable Run ROLLEASE ACMEDA 5 | Automate Installation Instructions | DC Power Distribution Panel ™...

  • Page 6: Wiring Diagram - Series (Mtdcrf28/25/18)

    Negative Due to 1.33A limit per channel, working current can be doubled to 2.66A with parallel configuration as shown above, allowing connection of 45mm and 35mm motors. ROLLEASE ACMEDA 6 | Automate Installation Instructions | DC Power Distribution Panel ™...

  • Page 7: Jst Connector Recommendations For Custom Cable Adaptors

    Female (Power Output) Grey Dashes (Positive) Male (Motor Input) Solid White (Positive) JST Connector Recommendations for Custom Cable Adaptors Rollease Acmeda recommends the following JST connectors for DC power connections: RECOMMENDED JST CONNECTORS DESCRIPTION PART NO. MANUFACTURER Digikey.com PART NO.

  • Page 8: Status Led Indication

    Output Voltage Range 15 VDC Maximum Output Current (all 18 channels) 24 A Power Output Rating 360 W Single Channel Absolute Maximum Current Output 1.33 A Ingress Protection IP20 ROLLEASE ACMEDA 8 | Automate Installation Instructions | DC Power Distribution Panel ™...

  • Page 9: Troubleshooting

    0.8128 mm (0.032 in) 0.518 mm (0.00080 in 18 AWG 1.02362 mm (0.0403 in) 0.823 mm (0.00128 in 16 AWG 1.29032 mm (0.0508 in) 1.31 mm (0.00203 in ROLLEASE ACMEDA 9 | Automate Installation Instructions | DC Power Distribution Panel ™...

  • Page 10: Notes

    NOTES ROLLEASE ACMEDA 10 | Automate Installation Instructions | DC Power Distribution Panel ™...
  • Page 11 NOTES ROLLEASE ACMEDA 11 | Automate Installation Instructions | DC Power Distribution Panel ™...
  • Page 12 ROLLEASE ACMEDA | AUSTRALIA 110 Northcorp Boulevard, Broadmeadows VIC 3047 T +61 3 9355 0100 | F +61 3 9355 0110 ROLLEASE ACMEDA | USA 200 Harvard Avenue Stamford, CT 06902 6320 T +1 203 964 1573 | F +1 203 964 0513...
