QUICK START GUIDE - AUTOMATE
INTEGRATION SUPPORT

HUB OVERVIEW

Take your Automate experience to the next level by integrating Automate
industry-leading smart home control systems. TSS's rich integration supports discrete shade control and
features a two-way communication system offering real time shade position and battery level status.
The Pulse Hub supports plug 'n play RS485 or RS232 Serial integration through a RJ9 port conveniently
located on the back of the hub. Each hub can support integration of up to 30 shades.

CONTROL4 HUB DRIVER INSTALLATION

1.
Connect the Rollease Acmeda Pulse Bridge to an available Control4 serial port.
2.
Download the Automate
Pulse Hub Serial Driver (here).
TM
3.

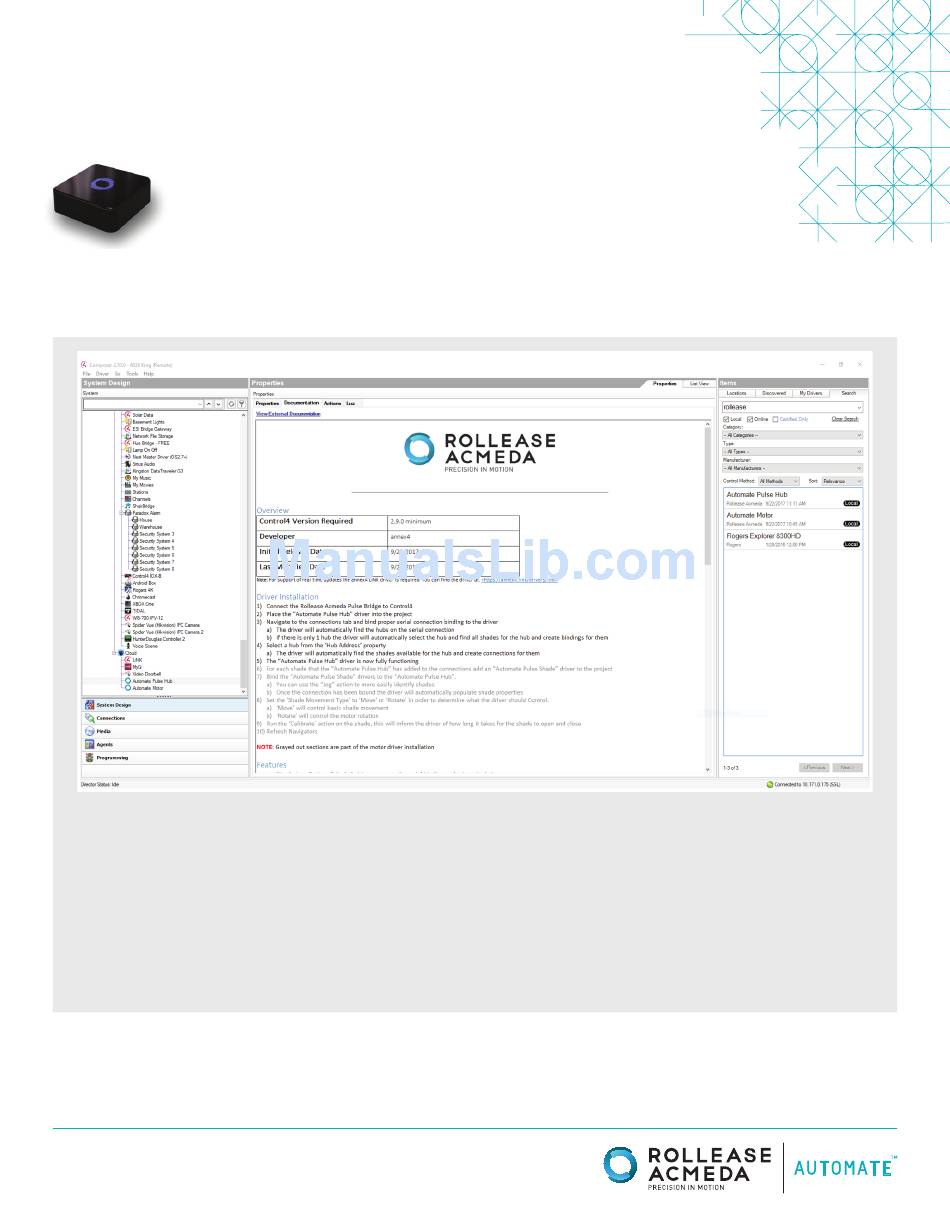

In Composer software, place the Automate
4.
Navigate to the connections tab and bind proper serial connection binding to the driver.
a.
The driver will automatically find the hubs on the serial connection.
b.
If there is only 1 hub, the driver will automatically select the hub and find all shades for the hub and create bindings for them.
5.
Select a hub from the 'Hub Address' property.
a.
The driver will automatically find the shades available for the hub and create connections for them.
6.
The "Automate Pulse Hub" driver is now fully functioning.
