To prevent possible SERIOUS INJURY or DEATH from
electrocution, disconnect electric power to operator BEFORE
installing.
ALL electrical connections MUST be made by a qualified
individual.
WARNING: This product can expose you to chemicals including
lead, which are known to the State of California to cause
cancer or birth defects or other reproductive harm. For more
information go to www.P65Warnings.ca.gov

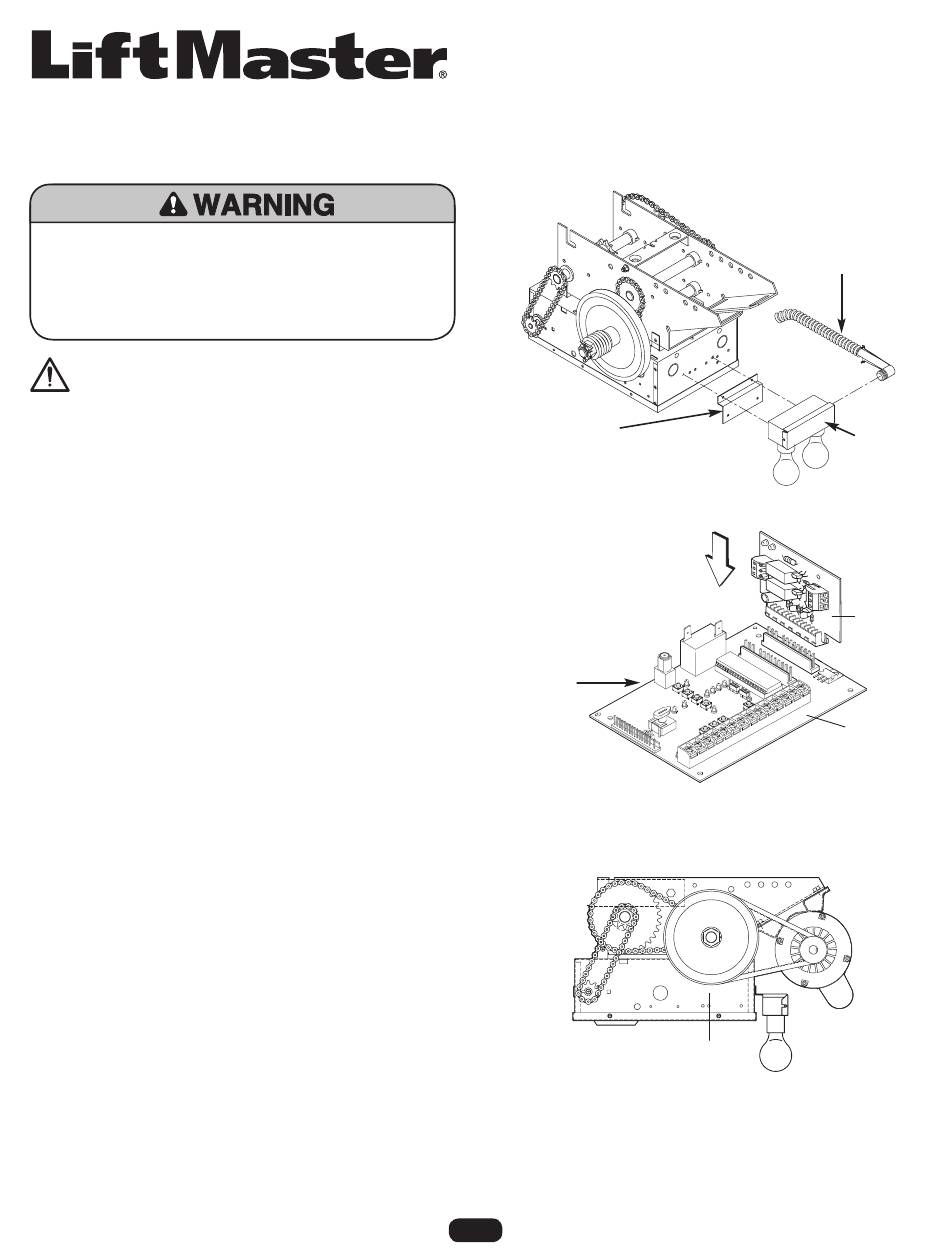

INSTALLATION
MOUNT THE LIGHT BOX
STEP 1:
Attach mounting bracket to the electrical box with the
self-threading screws (2) provided.
STEP 2:
Remove light box cover. Fasten light box to mounting bracket
with self-threading screws (2) provided.
STEP 3:
Attach flex conduit to electrical box.
STEP 4:
Insert Red/Green Light Control Module into either of the two
slots located on the logic board (see step 4 illustration).
NOTE: To avoid damage to relays, do not exceed the following:
• Red light output - 75W, 120V incandescent bulb or 3A,
250VAC (Resistive load).
• Green light output - 75W, 120V incandescent bulb or 3A,
250VAC (Resistive load).
RED/GREEN LIGHT
FOR USE WITH LOGIC 2 OR 3 MODEL APT, T, AND GT OPERATORS
Step 1
Step 4
1
CONTROL KIT
ACCESSORY P/N: RDGRNCARD
Step 3
Side View
Electrical Box
Step 2
Red/Green
Light Control
Module
Logic Board
Advertisement
Table of Contents
Related Manuals for Chamberlain RED/GREEN LIGHT CONTROL KIT
Summary of Contents for Chamberlain RED/GREEN LIGHT CONTROL KIT
- Page 1 RED/GREEN LIGHT CONTROL KIT FOR USE WITH LOGIC 2 OR 3 MODEL APT, T, AND GT OPERATORS ACCESSORY P/N: RDGRNCARD To prevent possible SERIOUS INJURY or DEATH from electrocution, disconnect electric power to operator BEFORE Step 3 installing. ALL electrical connections MUST be made by a qualified individual.
- Page 2 STEP 5: (FIGURE1) STEP 6: Complete wiring connections as follows: Install red and green light bulbs (not provided). Maximum wattage should not exceed 75 watts. • Connect red wire to red light terminal on the Red/Green Light Control Module connector. •...
- Page 3 LIGHT CONTROL MODULE OPERATION TIMER SETTING RED LAMP HOLDER RECEIVES POWER The green lights on the option board will turn on if the board is seated properly and the power is on. When the door reaches the Greater than or equal to 10 seconds before door starts to close and until close limit is full open position or programmed mid-stop, the timer circuit will...
- Page 4 ©2006, The Chamberlain Group, Inc. 01-31098E All Rights Reserved...
