Summary of Contents for Fillauer AllPro Foot

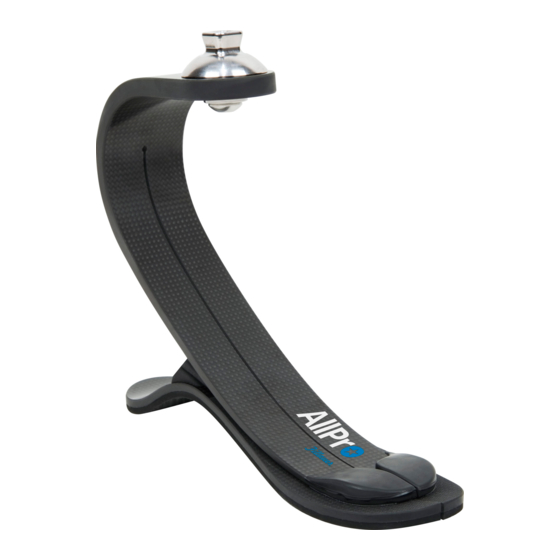

- Page 1 AllPro Foot Product Manual...
- Page 2 • Please review the FAQ section of the manual on page 7 before use of the foot. These instructions should be read prior to fitting and followed to ensure the proper integration of the AllPro foot into the patient’s prosthetic system.
- Page 3 Installation Attention: Deviating from the installation instructions or modifying the foot in any way will void any product warranty and could lead to product failure and injury to the patient. Reversible Pyramid Insert (RPI) 35% Position The RPI is set at 35% of foot length, Pyramid (Standard) Dome...
- Page 4 Heel Bumper Installation The foot is supplied with two heel Pin Lock Heel Bumper bumpers: 40A durometer is standard Apply Glue and pre-installed. If desired, the “Firm” Heel Lock bumper (60A) can be installed to stiffen the heel performance. Pull the pylon and foot plate Figure 3 apart.
- Page 5 Transfemoral Static Bench Alignment Standard TKA alignment can be utilized with the trochanter line bisecting the distal ankle. Another alignment option is to use a proximal sagittal socket bisection 10 – 15 mm posterior 5° to the midfoot. The foot should be aligned with 5° of toe out (Figure 2).
- Page 6 Foot Shell Installation and Removal The AllPro foot features a unique cosmetic foot shell that is flexible and durable. Use care in the installation and removal of the foot shell to maintain its appearance and durability. NOTE: Never use a sharp edged tool such as a screwdriver to install or remove the foot shell.
- Page 7 Frequently Asked Questions What can the practitioner do if the heel or toe is too soft or too firm? The heel and toe rollover resistance may also be fine-tuned during the dynamic alignment (page 5) by plantarflexing, dorsiflexing, or shifting the foot anterior or posterior.
- Page 8 • 24 months from date of patient fitting • Foot Shell (sold separately) - 6 months from date of patient fitting The AllPro Foot System has been designed and manufactured for specific patient weights. Failure to follow the weight guidelines and/or overload conditions caused by the patient, such as heavy lifting, high impact sports, or abusive activities that would otherwise damage the natural limb, may void the warranty.
