Axis DVR1905K Instruction Manual page 3

2. INSTALLATION GUIDE

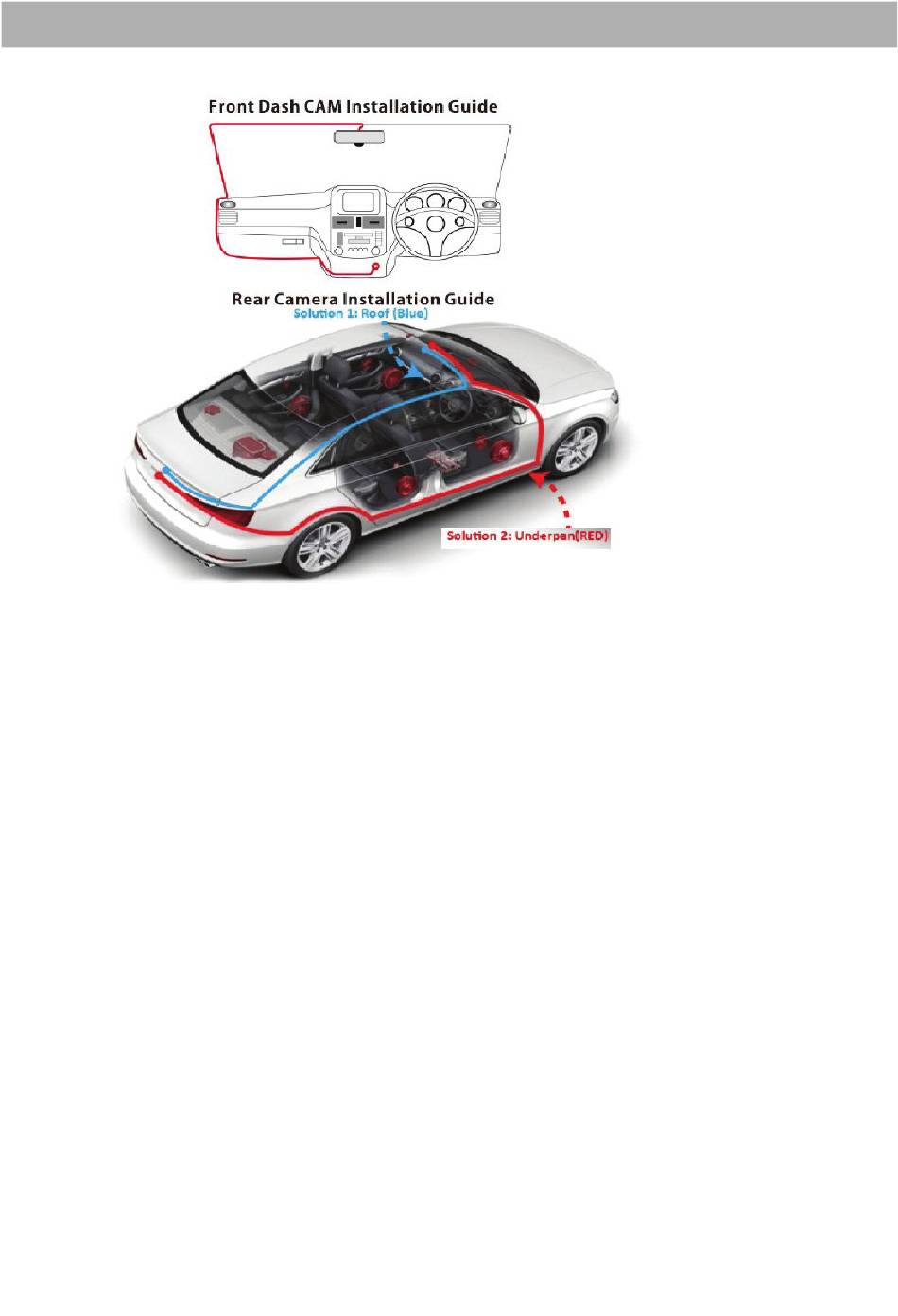

Please refer to the diagram below for Installation.
1. Turn the car engine off.
2. Insert a Class10 TF card (8GB-64GB) into the SD card slot of the Mirror Dash CAM.
3. Use the straps to fix the Mirror Dash CAM onto the car rearview mirror in a proper position.
4. Plug the car charger into the car cigarette lighter socket.
5. Connect the car charger extension cable to the Mirror Dash CAM USB interface.
[NOTE] Charging extension cable can be laid along the edge of the windshield.
6. The rear camera wiring can be run through the vehicle roof lining. After finishing the wiring
installation, plug the rear camera jack into the rear camera interface.
7. Adjust the lens position and ensure that the camera is aligned with the ground.
8. Start the car engine. Check if the DVR is working and installed properly.
Stop the recording, open the settings and format the SD Card.
[ATTENTION]: If the DVR is correctly installed, it will start recording automatically.
Please check if the image on the screen is normal.
3
