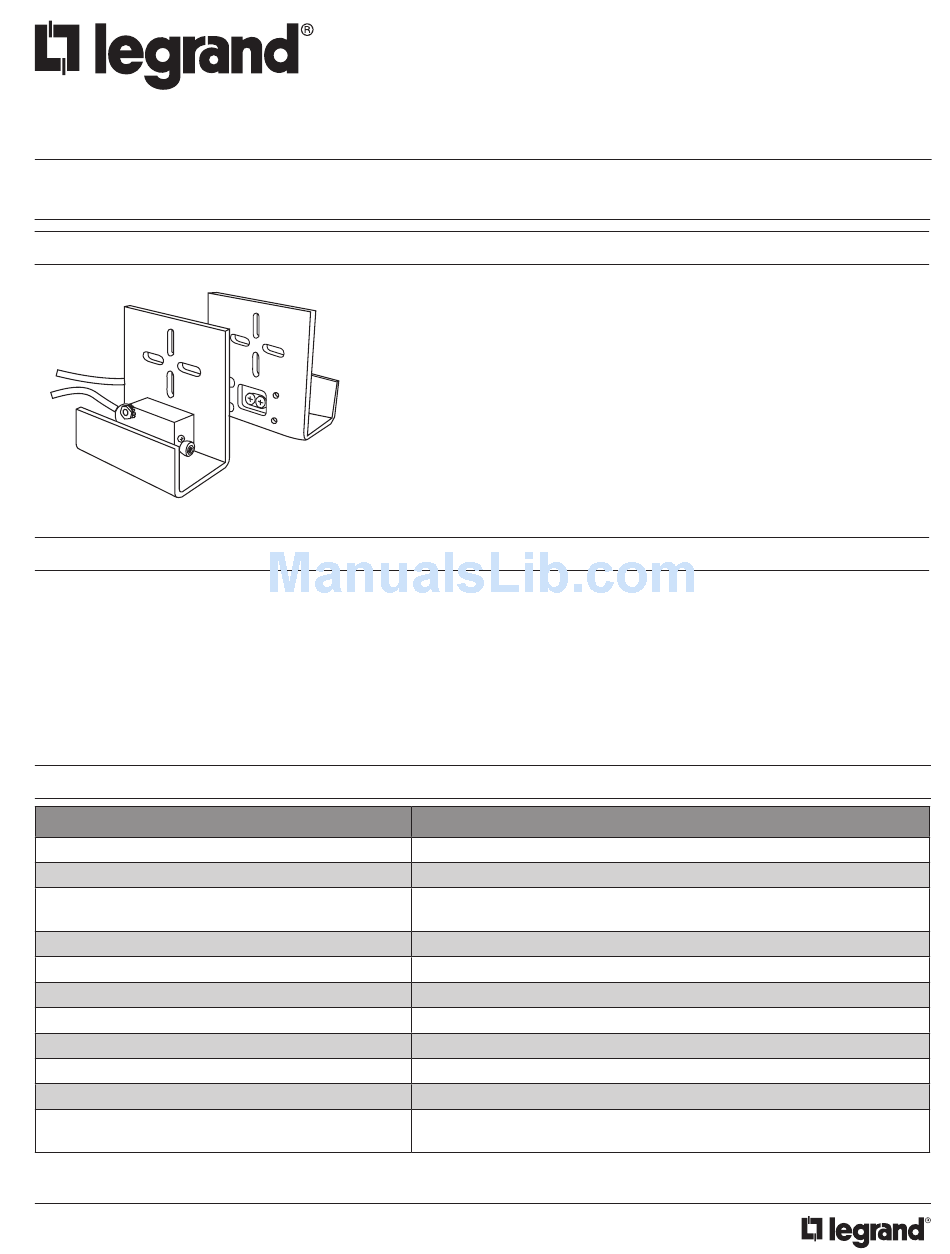

LEGRAND Wattstopper PARTITION-SENSOR Installation Instructions

No: IS-00717– Rev. B
PARTITION-SENSOR
Country of Origin: Made in China
• Excess gain (sensitivity) controlled by a screwdriver adjustment to prevent tampering
• Fixed optics
• Immune to most indirect ambient light and direct strobes
• Waterproof and enclosed in high impact plastic housing
• High speed (1100 μs Thru-Beam)
• Potted 6' cable
• Power supply requirements: 10 to 30 VDC Note: PARTITION-SENSOR ships with a BZ-50 Power Pack
Description
Supply Voltage
Current Requirements
Response Time
LED Light Source
Excessive Gain Adjustment
Range
Hysteresis
Light Immunity
Diagnostic Indicators
Ambient Temperature
Rugged Construction
No: IS-00717 – Rev. B
Wattstopper
Partition Sensor
Installation Instructions
OVERVIEW
The Wattstopper PARTITION-SENSOR uses an infrared transmitter/receiver
pair to detect partition opening and closing and, in conjunction with other
Architectural Dimming products, coordinates lighting and shade preset functions
in areas such as partitioned meeting rooms or ballrooms. When used with the
unique partitioning programming features of Design Center and the divide and
combine widget on the Equinox touchscreens, the PARTITION-SENSOR allows
for automation of partitioned spaces and visual indication of room lighting and
shade status.
FEATURES AND OPERATION OVERVIEW

SPECIFICATIONS

10- 30 VDC; 5 volt models: 4.5 to 5.5 VDC, polarity protected
Sinks up to 100mA
Light State response = 600 usµ (1,100 µs Thru-Beam)
Dark State response = 600 µs (1,100 µ Thru-Beam)
Infrared = 880nm, Pulse-modulated LED
Sensitivity controlled by a screwdriver adjustment to prevent tampering
65' (20m)
Approximately 20% of signal
High immunity to most ambient light
Red LED = Output Status, Green LED = Power "ON"
-40°F to 158°F (-40° to 70°C)
Chemical resistant, high impact polycarbonate house
Waterproof ratings: NEMA 4X, IP66
1
®
Specification
