LEGRAND Wattstopper HB300W Installation Instructions

No: 24161 – 08/17 rev. 2
Catalog Number • Numéro de Catalogue • Número de Catálogo: HB300W
Country of Origin: Made in China • Pays d'origine: Fabriqué en Chine • País de origen: Hecho en China
HB300W L3W
The HB300W low voltage occupancy sensor is designed for automatic lighting control in high bay wet location applications. The
HB300W sensor contains a passive infrared sensor (PIR) and is modular being made up of two parts, a Sensor Module and a Lens.
Time delay and PIR sensitivity values are set using DIP switches.
1. Review the ADJUSTMENTS section and complete any
necessary DIP switch setting changes.
2. Mount the sensor so the lens is below the edge of the
fixture and away from the lamps. Heat from the lamps
could affect the sensor operation.
Make sure that you have the appropriate accessories for the sensor
mounting configuration. (See MOUNTING OPTIONS.)
3. Assemble any necessary mounting accessories and attach them to the
sensor module. Make sure that the flying leads from the sensor module
cable are accessible inside the fixture.
4. Connect the line voltage and load wires to the power pack leads as
shown in the applicable Wiring Diagram for the sensor module.
• Do not allow bare wire to show.
• Make sure all connections are secure.
• Check all gaskets for watertight fit.
5. Connect the low voltage wires from the power pack to the sensor.
6. Check sensor operation. Refer to the TESTING section.
7. Attach the Lens to the HB300W as shown in the sensor assembly
drawing.
Wattstopper
High Bay • Line Voltage • Passive Infrared
IP65 Occupancy Sensors for Wet Locations
Installation Instructions • Instructions d'Installation • Instrucciones de Instalación
HB300W L7W
DESCRIPTION AND OPERATION

INSTALLATION OVERVIEW

SPECIFICATIONS

Voltage ........................................................................................... 24VDC
Wiring cable ................ 3 or 4-conductor 18AWG stranded, UL Style 2517
Unit Dimensions ...............................................4.08" diameter, 1.88" thick
Threaded nipple ................................................0.81" diameter, 0.40" long
fits standard 1/2" electrical conduit fitting
Weight ........................................................................ 0.28 lb (130 grams)
Material ......................................................... PC flame retardant material,
............................................................UV resistant, indoor use only,
............................................. minimum plastic wall thickness 2.5mm
Environment ......................................................................IP65 Compliant
Operating humidity .................................... 5 to 95% RH, non-condensing
Maximum Dew Point ............................................................. 29°C (85°F)
US Patents: ........................................................5,640,113 and 5,804,991
CAUTION
TURN THE POWER OFF AT THE
CIRCUIT BREAKER BEFORE INSTALLING THE SENSOR.
®

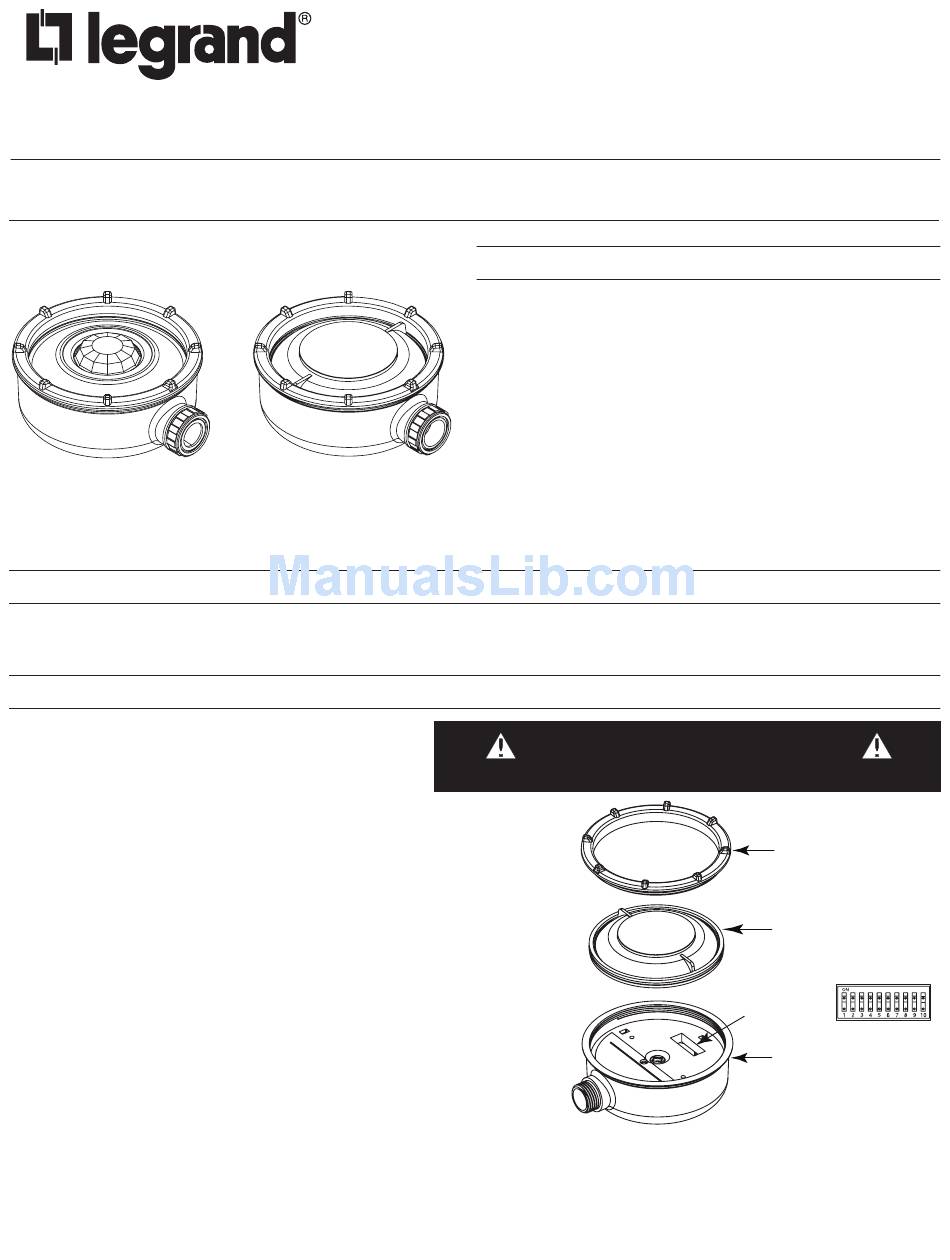

Tightening ring
HBLxW (lens module)
L7 lens may require pliers
to remove the lens. (Grab
one of the fins to remove.)
DIP switches
HB300W (sensor module)
Sensor Assembly
