Summary of Contents for LEGRAND Radiant WWRR15LACCV2

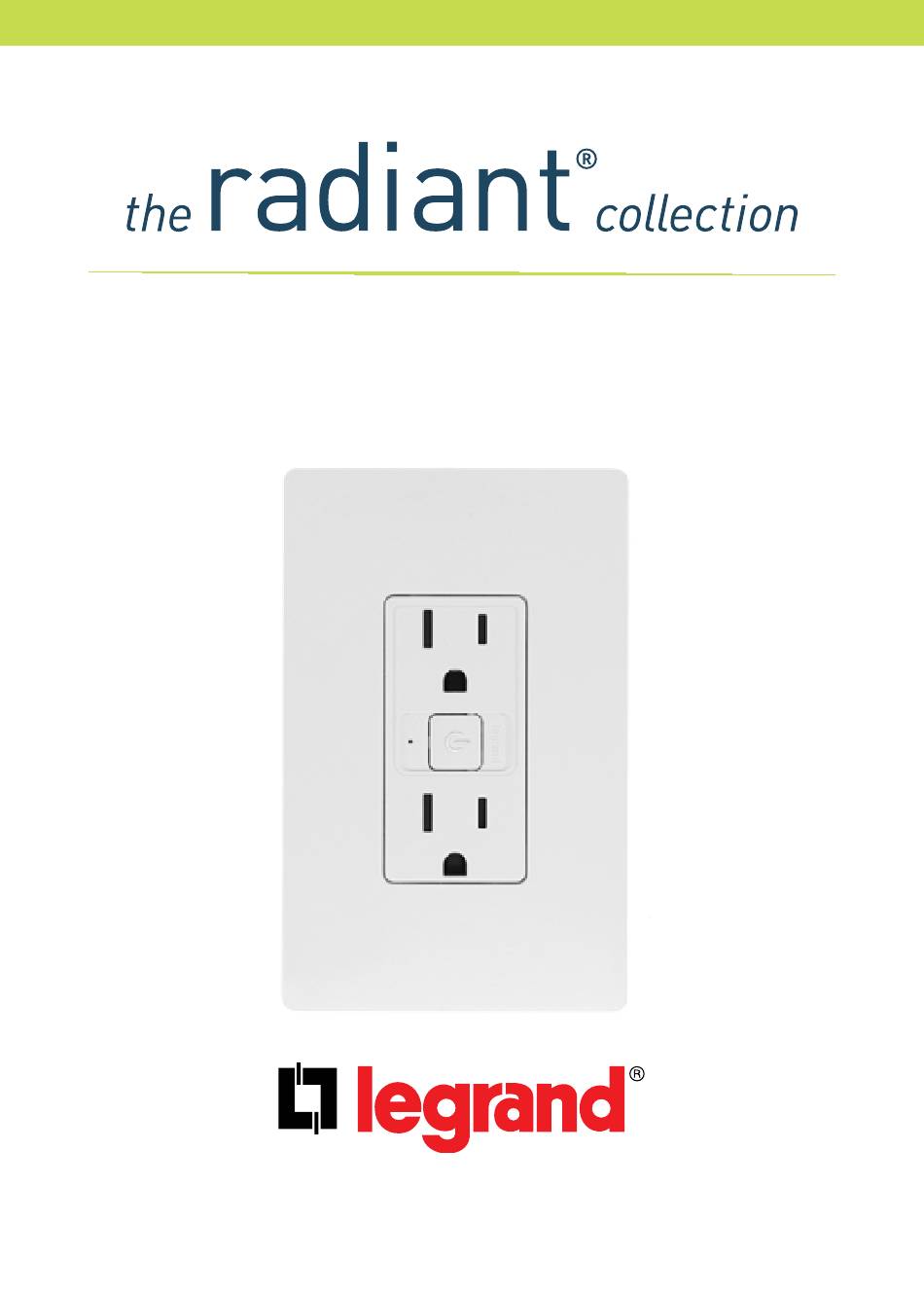

- Page 1 Smart Outlet, Wi-Fi...
-
Page 2: Before You Start
• Do not use with loads exceeding the electrical codes. device load rating. Visit www.legrand.us/radiant/smart-lighting/support for support. what you need REQUIRED: YOU MAY ALSO NEED: Voltage tester, pliers, wire cutter, wire Phillips-head screwdriver... -
Page 3: Installation And Setup
installation & setup turn off power to device at circuit breaker Plug a light or a fan into the outlet and turn it on. Next go the circuit breaker and turn off the breaker that connects to the outlet. Confirm that power is now out to BOTH receptacles. - Page 4 Connect the GREEN ground wire on the switch to the ground wire in the box. NOTE: This outlet can be optionally wired to control downstream outlets. For more information please see the resources section for this product on the Legrand.us website.
- Page 5 secure smart outlet Fold wires into electrical box, taking care not to pinch a wire. Use included screws to secure outlet to electrical box. Do not fully tighten the screws.
-
Page 6: Troubleshooting Tip
Press the on/off button to turn the smart outlet on. Your lamp or device should become powered. Press the on/off button to turn the smart outlet off. Your lamp or device should power off. TROUBLESHOOTING TIP: If the device is not powering, visit www.legrand.us/radiant/smart-lighting/ support for support. - Page 7 attach wall plate Use the sub-plate screws (provided) to secure the sub-plate to the smart outlet. Tighten device screws to secure to the electrical box. Angle the end of the wall plate over the top edge of the sub-plate. Push the screwless wall plate down and in until it “snaps” into place over the sub-plate.
- Page 8 Download and launch the Smart Lights, Wi-Fi app by Legrand. The app is available on the App Store or on Google Play. SCAN TO DOWNLOAD Connect your smart outlet to your home network by following the step by step instructions in the app.
-
Page 9: Reset To Factory Default
getting to know your outlet Item Name Description Indicates operation. See “Indicator Light Indicator Light Explanations” for detail. On/Off Button Turns the outlet on or off Uncontrolled Outlet “Always on” outlet INDICATOR LIGHT EXPLANATIONS State of Explanation Color Light Solid Factory default;... -
Page 10: Regulatory Information
regulatory information FCC NOTICE This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesirable operation. - Page 11 This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 cm between the transmitter’s radiating structure(s) and the body of the user or nearby persons. NOTE: Any changes or modifications to this device that are not expressly approved by the manufacturer will void the warranty and the user’s authority to operate...
-
Page 12: Warranty
Additional warranty details are available at under your device’s product page. specifications Load Rating Resistive 120 VAC, 60 Hz,15 A Incandescent/halogen 1500 W Ballast 15 A standard/electronic Motor 1/2 HP Legrand reserves the right to change specifications without notice. - Page 13 Does the Smart Outlet control downstream outlets? Yes. This outlet can be optionally wired to control downstream outlets. For more information please see the resources section for this product on the Legrand.us website. NOTE: In new construction, the smart outlet can be wired to control half-controlled outlets downstream.
- Page 14 Legrand, North America 50 Boyd Avenue Syracuse, NY 13209 1-877-833-3303 www.legrand.us...
