Inspection and Handling

Handling

CAUTION
Do not lift an IntelliRupter fault interrupter by
the pole-units, the base, or any part or fitting on
the base except the lifting brackets. Damage to
IntelliRupter fault interrupter components, such as the
Wi-Fi antenna or interrupter open/closed indicators,
may result.
CAUTION
Use a crane capable of safely lifting the
IntelliRupter fault interrupter.
Non-disconnect-style weights:
15-kV/27-kV 835 lbs. (379 kg)
38-kV 865 lbs. (392 kg)
Disconnect-style weights:
15-kV/27-kV 1010 lbs. (458 kg)
38-kV 1040 lbs. (472 kg)
8
S&C Instruction Sheet 766-510
Lifting
cable

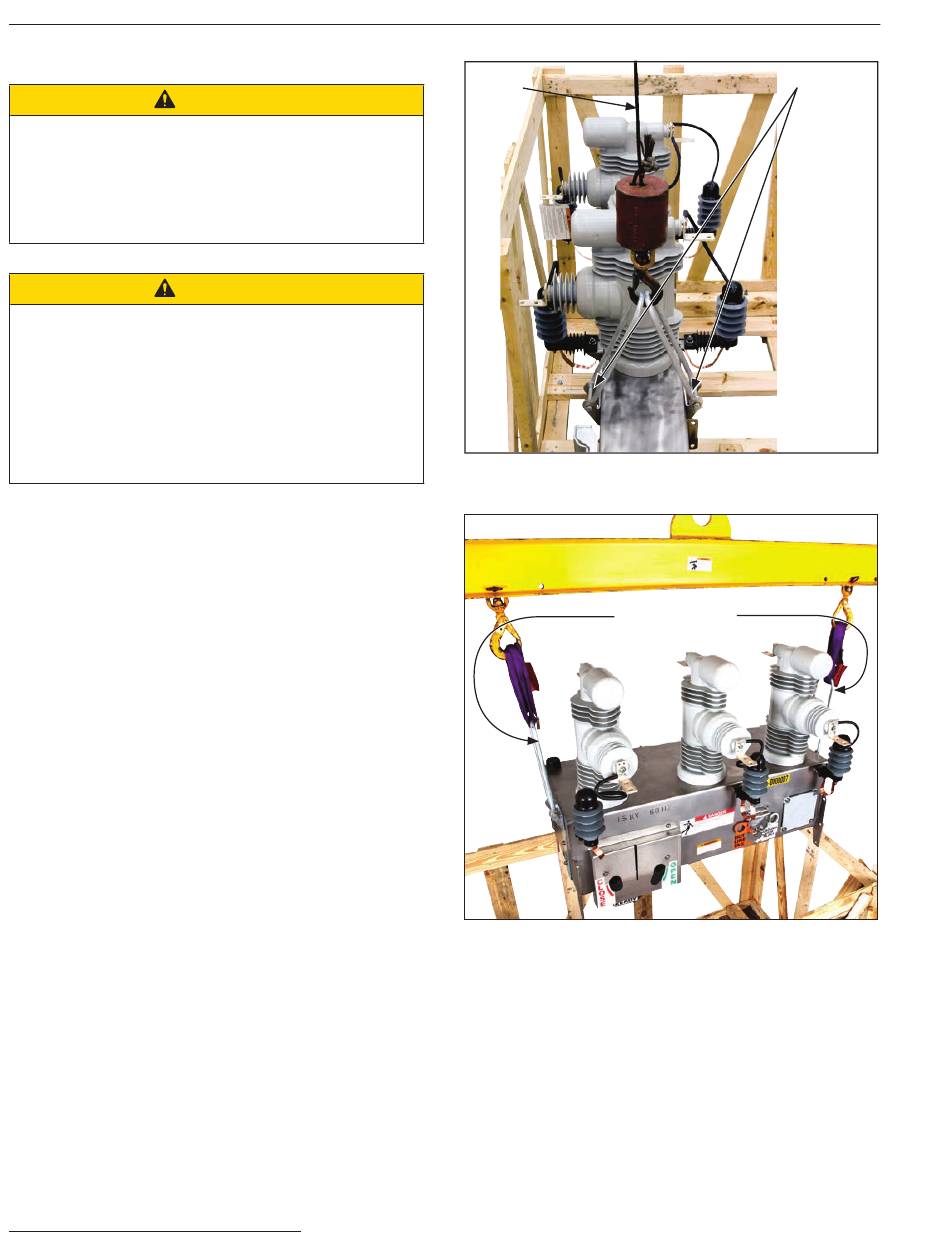

Figure 1. Lifting the upright-crossarm, non-disconnect-style
IntelliRupter fault interrupter.
Lifting brackets
Figure 2. Lifting the compact-crossarm IntelliRupter fault
interrupter with a two-point lifting bar.
Lifting
brackets
