Operating Instructions-41315
2-2

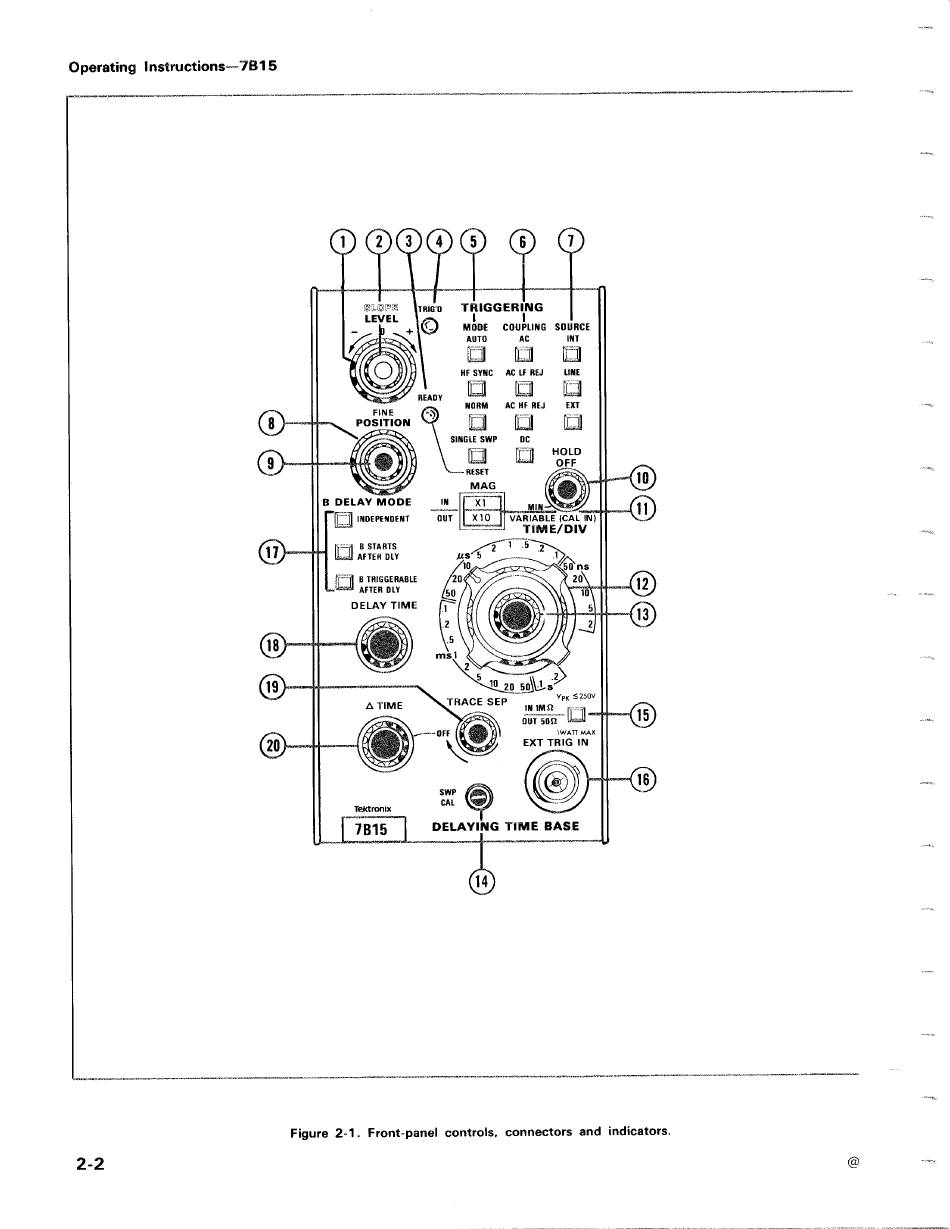

Figure 2-1 . Front-panel controls, connectors and indicators .
Table of
Contents
Previous
Page
Next
Page
1
...
13
14
15
16
17
18
19
20
