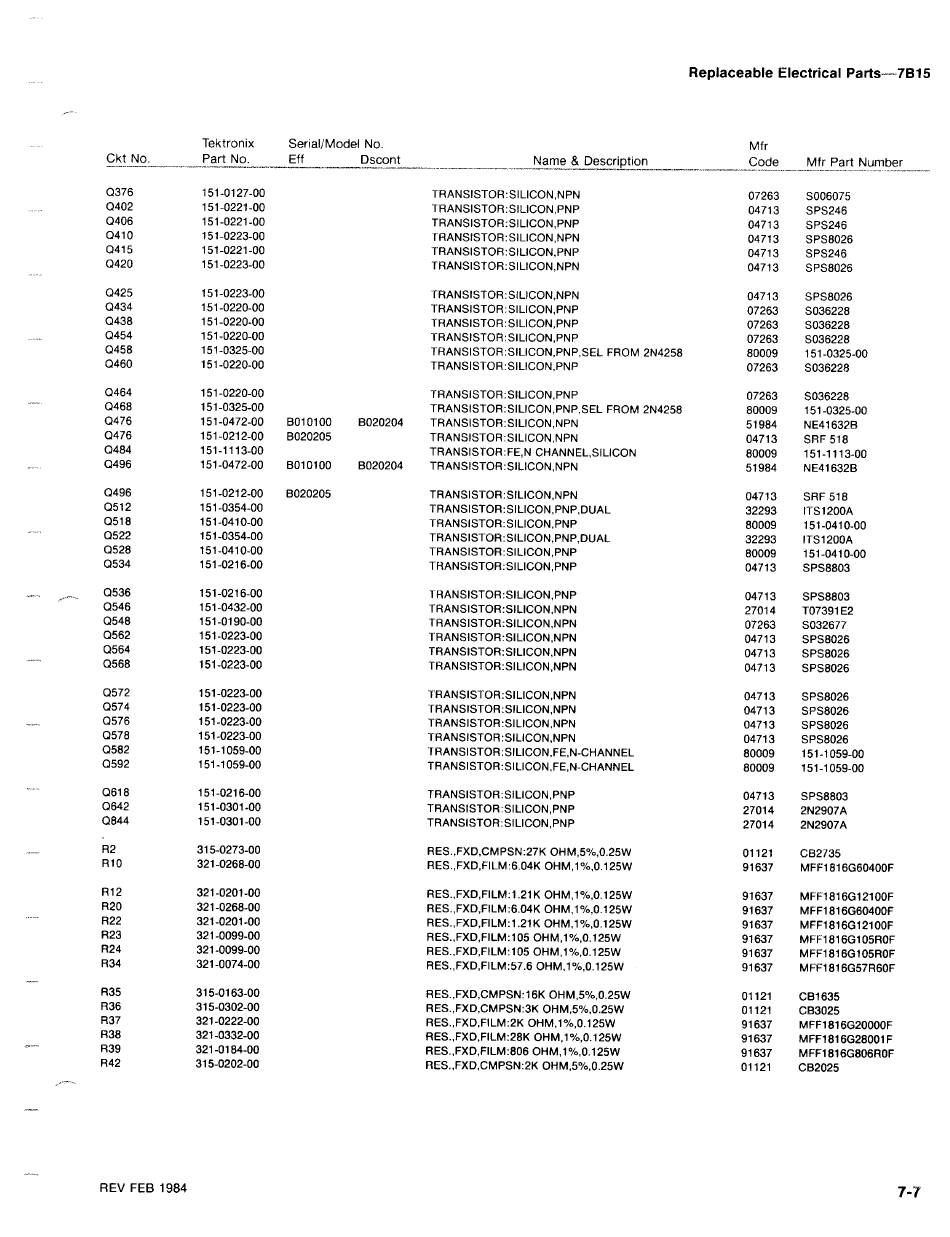

Tektronix 7B15 Instruction Manual page 114

Replaceable Electrical Parts-71315
REV FEB 1984
7_7
CktmNo ;
Tektronix
No _, . XYF. Part
Serial/Model
Eff .._
q,
No .
~Dscont
Name & Description
Mfr
Code, T Mfr Part Number
Q376
151-0127-00
TRANSISTOR : SILICON,NPN 07263
S006075
Q402
151-0221-00 TRANSISTOR :SILICON,PNP
04713 SPS246
0406
151-0221-00 TRANSISTOR : SILICON, PNP
04713
SPS246
0410
151-0223-00
TRANSISTOR : SILICON,NPN
04713 SPS8026
0415
151-0221-00
T'RANSISTOR:SILICON,PNP 04713
SPS246
0420
151-0223-00
TRANSISTOR :SILICON,NPN
04713 SPS8026
Q425
151-0223-00
fRANSISTOR :SILICON,NPN
04713 SPS8026
0434 151-0220-00
TRANSISTOR : SILICON, PNP
07263 S036228
Q438
151-0220-00
TRANSISTOR : SILICON, PNP
07263 S036228
Q454 151-0220-00
7RANSISTOR :SILICON,PNP
07263 S036228
Q458
151-0325-00
'I'RANSISTOR :SILICON,PNP,SEL FROM 2N4258
80009 151-0325-00
Q460 151-0220-00
TRANSISTOR : SILICON,PNP
07263 S036228
Q464
151-0220-00
TRANSISTOR : SILICON, PNP
07263 S036228
0468
151-0325-00
TRANSISTOR : SILICON,PNP,SEL FROM 2N4258
80009 151-0325-00
Q476
151-0472-00 8010100 8020204
TRANSISTOR : SILICON,NPN
51984 NE416328
0476
151-0212-00 8020205
TRANSISTOR : SILICON,NPN
04713 SRF 518
0484 151-1113-00
TRANSISTOR :FE,N CHANNEL,SILICON
80009 151-1113-00
0496 151-0472-00 8010100
B020204 TRANSISTOR : SILICON, NPN
51984 NE41632B
0496 151-0212-00 8020205
TRANSISTOR :SILICON,NPN
04713 SRF 518
0512 151-0354-00
TRANSISTOR : SILICON, PNP, DUAL
32293 IT'S 1200A
0518 151-0410-00
TRANSISTOR : SILICON, PNP
80009 151-0410-00
0522 151-0354-00
TRANSISTOR : SI LICON, PNP, DU AL
32293 ITS1200A
0528
151-0410-00
TRANSISTOR : SILICON,PNP
80009 151-0410-00
0534 151-0216-00
"I'RANSISTOR :SILICON,PNP
04713 SPS8803
0536 151-0216-00
1RANSISTOR :SILICON,PNP
04713 SPS8803
Q546
151-0432-00
TRANSISTOR :SILICON,NPN
27014 T07391E2
0548 151-0190-00
TRANSISTOR :SILICON,NPN
07263 S032677
0562
151-0223-00
TRANSISTOR :SILICON,NPN
04713 SPS8026
0564 151-0223-00
TRANSISTOR : SILICON,NPN
04713 SPS8026
Q568 151-0223-00
TRANSISTOR : SILICON,NPN
04713 SPS8026
Q572 151-0223-00
1'RANSISTOR :SILICON,NPN
04713 SPS8026
0574 151-0223-00
TRANSISTOR : SILICON, NPN
04713 SPS8026
0576 151-0223-00
TRANSISTOR : SILICON,NPN
04713 SPS8026
0578 151-0223-00
TRANSISTOR :SILICON,NPN
04713 SPS8026
0582 151-1059-00
TRANSISTOR :SILICON,FE,N-CHANNEL
80009 151-1059-00
Q592 151-1059-00
TRAN S
I
STOR : SI LI CON, FE,N-CHANNEL
80009 151-1059-00
Q618 151-0216-00
TRANSISTOR : SILICON,PNP
04713 SPS8803
0642
151-0301-00
TRANSISTOR : SILICON, PNP
27014 2N2907A
0844 151-0301-00
TRANSISTOR : SILICON,PNP
27014 2N2907A
R2
315-0273-00
RES.,FXD,CMPSN:27K OHM,5%,0 .25W
01121 CB2735
R10
321-0268-00
RES.,FXD,FILM :6 .04K OHM,1%,0.125W
91637 MFF1816G60400F
R12
321-0201-00
RES.,FXD,FILM : 1 .21K OHM,1%,0.125W
91637 MFF1816G12100F
R20 321-0268-00
RES.,FXD,FILM :6 .04K OHM,1%,0.125W
91637 MFF1816G60400F
R22
321-0201-00
RES.,FXD,FILM :1 .21K OHM,1%,0 .125W
91637
MFF1816G1210OF
R23 321-0099-00
RES.,FXD,FILM : 105 OHM,1%,0.125W
91637 MFF1816G105R0F
R24
321-0099-00
RES.,FXD,FILM :105 OHM,1%,0 .125W
91637 MFF1816G105R0F
R34
321-0074-00
RES.,FXD,FILM :57.6 OHM,1%,0 .125W
91637 MFF1816G57R60F
R35 315-0163-00
RES.,FXD,CMPSN:16K OHM,5%,0 .25W
01121 CB1635
R36
315-0302-00
RES.,FXD,CMPSN:3K OHM,5%,0 .25W
01121 CB3025
R37
321-0222-00
RES.,FXD,FILM :2K OHM,1%,0 .125W
91637 MFF1816G20000F
R38
321-0332-00
RES.,FXD,FILM :28K OHM,1%,0 .125W
91637 MFF1816G28001F
R39
321-0184-00
RES.,FXD,FILM :806 OHM,1%,0 .125W
91637 MFF1816G806ROF
R42
315-0202-00
RES.,FXD,CMPSN:2K OHM,5%,0 .25W
01121 CB2025
