Appendix

A.

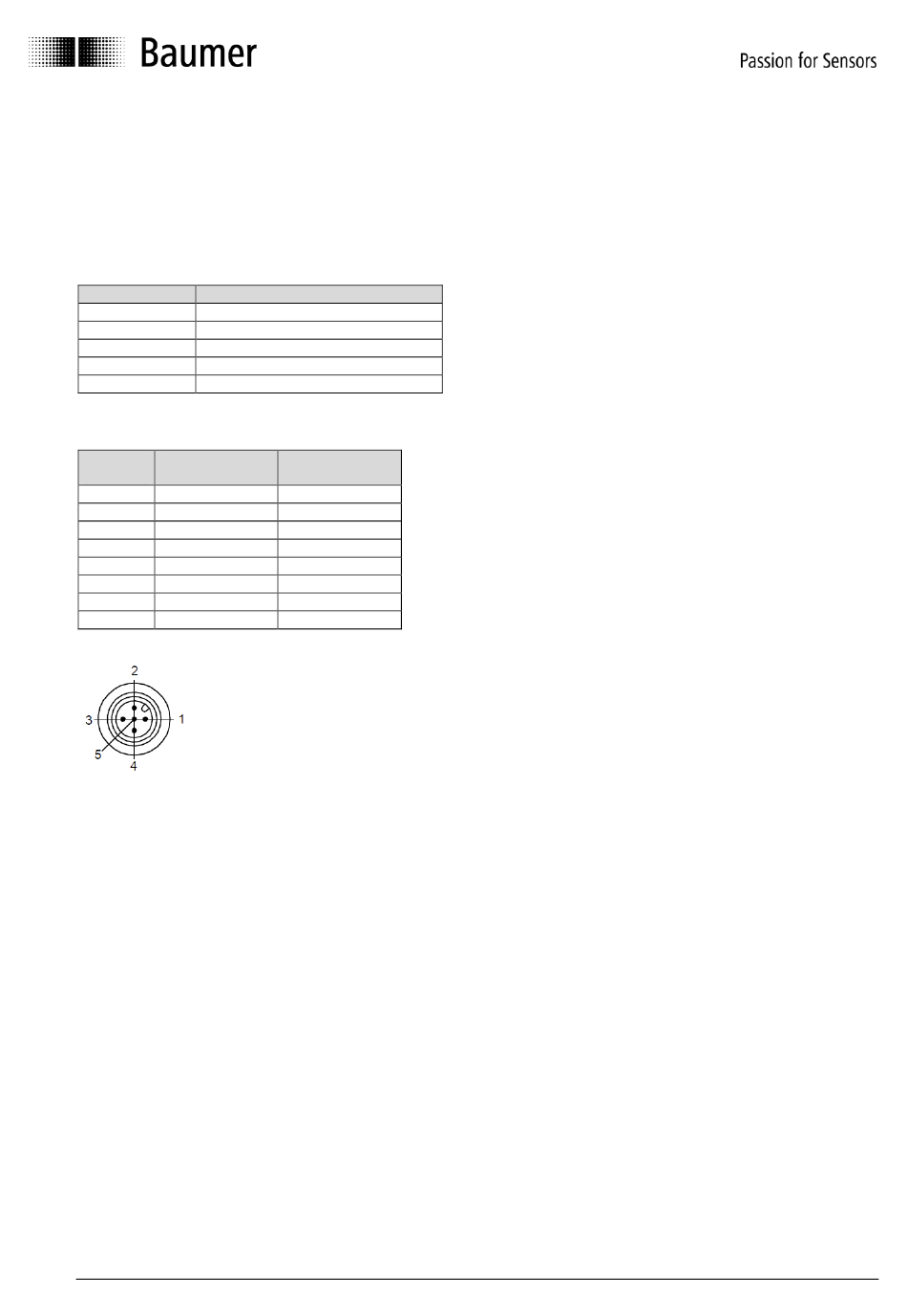

Pin Assignments

Default Pin Assignments for galvanically isolated encoders are listed below (non-isolated on request).
Description
signal description
+Vs Supply voltage
0 V Supply voltage
CAN_GND CAN bus ground
CAN_H CAN bus Signal (dominant HIGH)
CAN_L CAN bus signal (dominant LOW)
Assignment cable (connection – L) and connector 1 x M12 (connection – N)
A.1
Cable M12
color
grey 1
brown 2
white 3
green 4
yellow 5
pink -
blue -
red -
Baumer_EAM580_360_SAE_J1939_MA_EN_Rev0003.0000h_Index0002.docx
06.08.2018
Cable
0 V
+Vs
0 V
CAN_H
CAN_L
-
-
-
