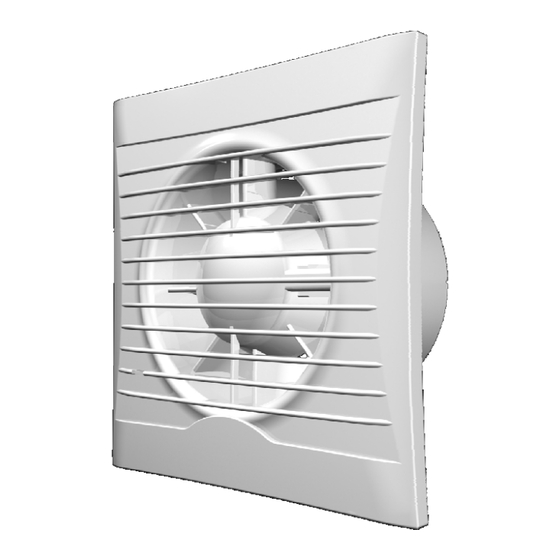

Silhouette
SELV 12 RANGE
Installation and Wiring Instructions
FAN UNITS 12V 50Hz SELV (CLASS III)
CONTROLLERS 220-240V 50Hz MAINS SUPPLY (CLASS II)
WITH 12V 50Hz SELV OUTPUT
PLEASE READ INSTRUCTIONS IN CONJUNCTION WITH ILLUSTRATIONS.
PLEASE SAVE THESE INSTRUCTIONS.
Stock Ref. N°
439974A (100SV12)
439975A (100SV12T)
439976A (100SV12H)
IPX7
Advertisement
Table of Contents
Related Manuals for Vent-Axia Silhouette SELV 12 Series
Summary of Contents for Vent-Axia Silhouette SELV 12 Series
- Page 1 Silhouette SELV 12 RANGE Installation and Wiring Instructions Stock Ref. N° 439974A (100SV12) 439975A (100SV12T) 439976A (100SV12H) FAN UNITS 12V 50Hz SELV (CLASS III) CONTROLLERS 220-240V 50Hz MAINS SUPPLY (CLASS II) WITH 12V 50Hz SELV OUTPUT IPX7 PLEASE READ INSTRUCTIONS IN CONJUNCTION WITH ILLUSTRATIONS. PLEASE SAVE THESE INSTRUCTIONS.
- Page 2 L. The exterior grille should be at least 2.3m above the ground to prevent people from being able to access moving parts. If the external grille is positioned between 0-2.3m from the ground, Please use the Vent-Axia wall kit as detailed below to ensure people cannot access the fans impeller from the outside.
- Page 3 Ducted Applications. These fans can be used with short lengths of rigid ducting, but check details first with your Vent-Axia sales centre. Where an excessive amount of moisture is present in the air, a condensation trap will need to be installed in the exhaust duct.
- Page 4 Mark the screw centres on the wall through the holes of the fan back plate. Drill plug and screw into position. Repeat for the external grille sub-frame. Fix exterior grille into position with the louvres positioned downwards. AFTER INSTALLATION ENSURE IMPELLER ROTATES FREELY B.
- Page 5 Manual Override: The 100SV12H Humidistat has an additional LS connection (connection made via the transformer) to enable the fan to be manually switched on via a separate light switch/other controller (Fig.5). (See Fig.4 if not using the LS connection) IMPORTANT: Upon installation it is possible that the humidity controller will make the fan run continuously until it has acclimatised to the environment.
- Page 6 Fig.4 SILHOUETTE 100 SV12H (Without remote switch) SELV Supply 1 Phase Supply (12V 50Hz) (220-240V 50Hz). FUSE Switched Fused Spur Controller Fig.5 SILHOUETTE 100 SV12H SELV Supply (12V 50Hz) Controller IMPORTANT: Ls SIGNAL MUST BE THE SAME PHASE AS THE MAINS INPUT PHASE...
- Page 8 SALES ENQUIRIES: Tel: 0844 8560590 Fax: 01293 565169 TECHNICAL SUPPORT: Tel: 0844 8560595 Fax: 01293 539209 For details of the warranty and returns procedure please refer to www.vent-axia.com or write to Vent-Axia Ltd, Fleming Way, Crawley, RH10 9YX 403042 A 0413...
