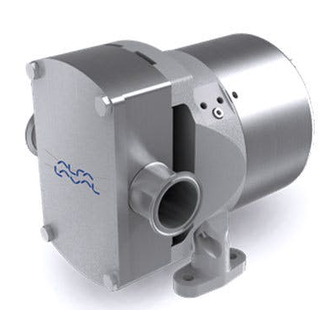

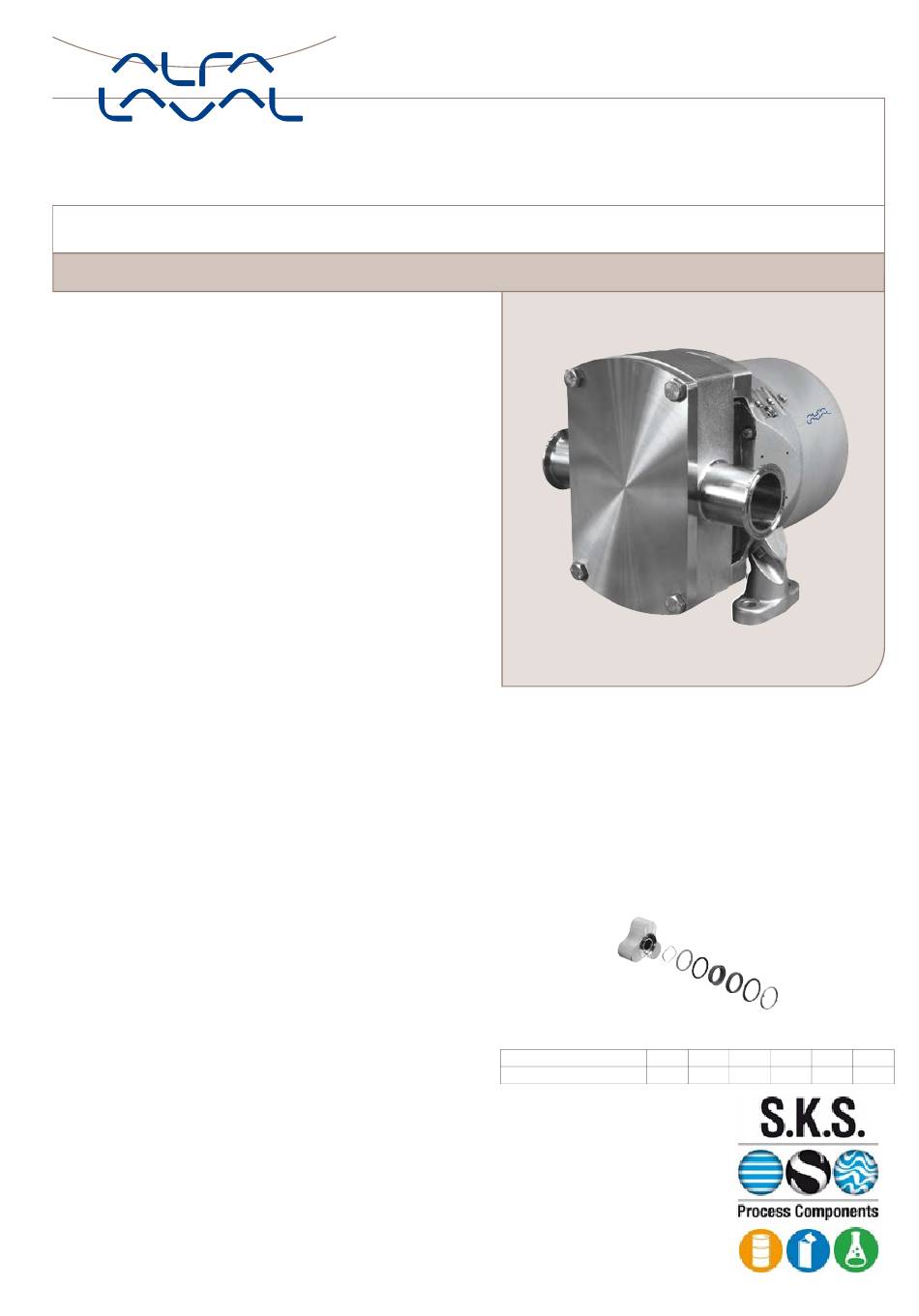

Alfa Laval OptiLobe Rotary Lobe Pump
Application
The OptiLobe range of rotary lobe pumps combines cost-effective
simplicity with Alfa Laval quality and reliability. The OptiLobe range has
been developed for general applications within the Dairy, Beverage
and Food Industries.
The 'OptiLobe' pump range has been certified by EHEDG (European
Hygienic Equipment Design Group) as fully CIP cleanable to their
protocol, and therefore is ideally suited for applications where
cleanability is paramount.
Also the OptiLobe pump range conforms to USA 3-A Hygienic
Standard and all media contacting components are FDA compliant.
The pump features the "EasyFit" front loading seal which allows quick
and easy inspection or replacement without the need for pipework
disassembly.
The 'OptiLobe' pump range is compact, efficient and capable of flow
rates up to 48 m³/h and pressures up to 8 bar.
.
TECHNICAL DATA
Pump Sizing
In order to correctly size a rotary lobe pump some essential information
is required. Provision of this information listed below enables our
Customer Support personnel to obtain the optimum pump selection.
Materials
Gear canister . . . . . . . . . . . . 304 stainless steel.
Bearing housing . . . . . . . . . . 304 stainless steel.
Shafts
. . . . . . . . . . . . . . . . duplex stainless steel.
Pumphead
. . . . . . . . . . . . . product wetted components in 316L.
Product wetted elastomers . . . EPDM, FPM all FDA conforming.
Mechanical Seals . . . . . . . . . Carbon/Stainless Steel, Carbon/Sili-
Shaft Seal Options
- EasyFit type single or single flush/quench mechanical seals.
All sealing options are fully front loading and fully interchangeable.
Specialised seal setting of the mechanical seal is not required as the
seal is dimensionally set on assembly. This feature further enhances
fast and efficient on-site seal interchangeability.
con Carbide or Silicon Carbide/Silicon
Carbide.
www.sks-online.com
www.sks-webshop.com
OPERATING DATA
Product/Fluid Data
- Fluid to be pumped
- Viscosity
- SG/Density
- Pumping temperature, minimum, normal and maximum
- Cleaning in Place temperature(s), minimum, normal and maximum
Performance Data
- Flow rate, minimum, normal and maximum
- Discharge head/pressure (closest to pump outlet)
- Suction condition
Weight
Pump Model
22
Bare Shaft Pump (kg)
20.5
23
32
33
42
43
21.5
33.5
34.5
60.0
63.0
