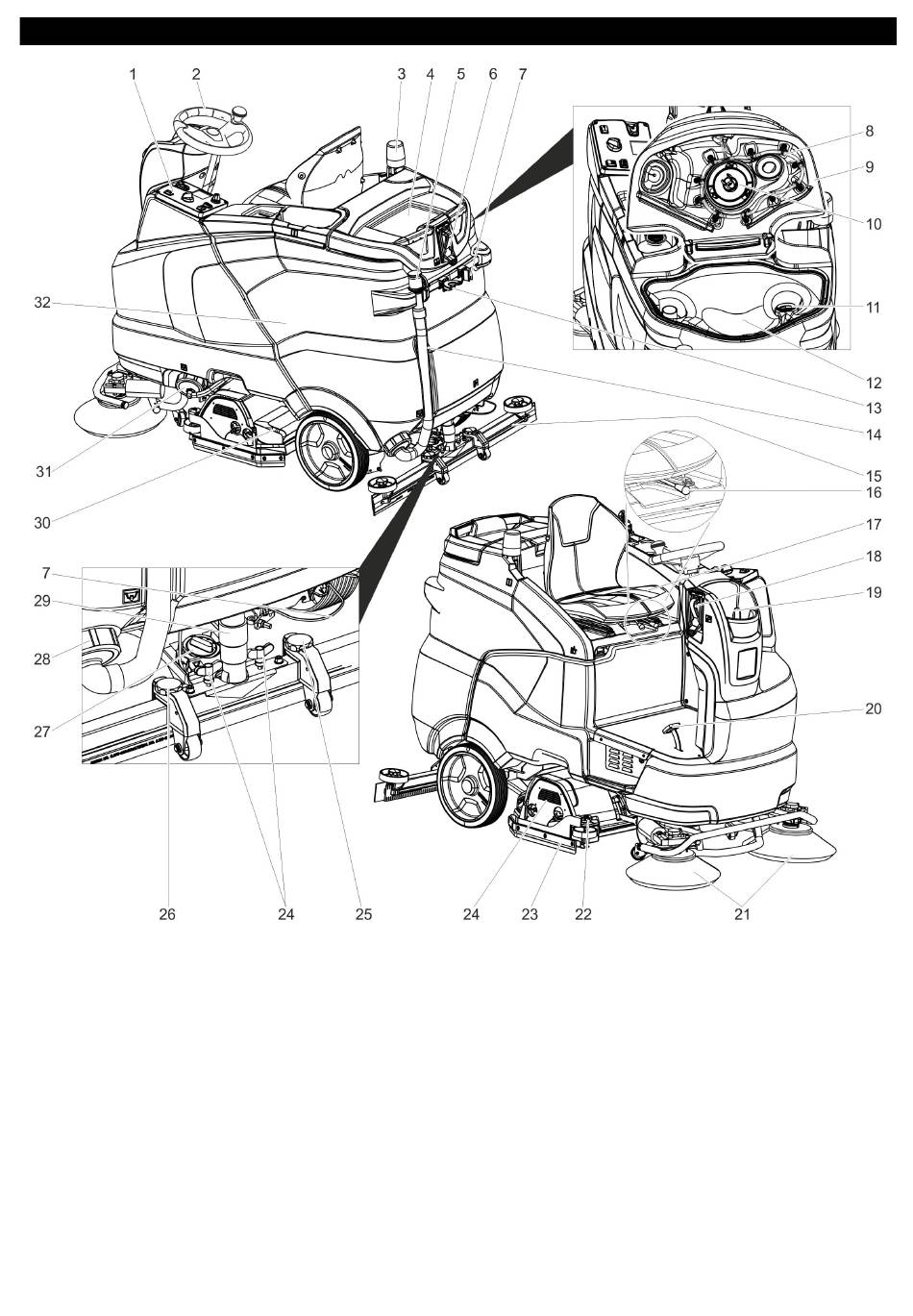

Control Elements - Kärcher B 150 R Manual

1 Operating field
2 Steering wheel
3 Warning lamp **
4 Storage surface for cleaning set
"Home base box"
5 Dosing equipment for dirt water
6 Water connection for wastewater
tank rinsing system **
7 Mop holder **
8 Wastewater tank rinsing system **
9 Cover dirt water reservoir
10 Float
11 Fluff filter
12 Dirt water reservoir
13 Tool holder **
14 Dirt water discharge hose
15 Vacuum bar *

Control elements

16 Lever for seat adjustment
17 Seat (with seat switch)
18 Filling system **
19 Fresh water tank cover
20 Drive pedal
21 Side brush (only SB version)
22 Adjustment wheel for wiping flap*
23 Wiping flap
24 Cleaning head *
25 Height adjustment of suction bar
26 Wing nuts for fastening the vacuum
bar
27 Rotary handle to incline the vacuum
bar
28 Lock, dirt water reservoir
29 Suction hose
7
-
EN
30 Waste container (only with R clean-
ing head) *
31 Closure fresh water tank with fresh
water filter
32 Battery
* not included in the delivery
** option
