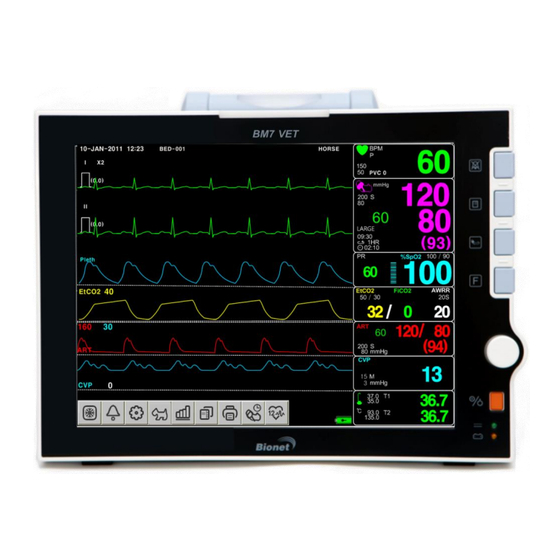

BM7VET
Operation Manual
Veterinary Patient Monitor
For Veterinary Use Only
Ver. 2.12
2016.12.19
www.ebionet.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BM7VET and is the answer not in the manual?

Questions and answers

Related Manuals for Bionet BM7VET

Summary of Contents for Bionet BM7VET

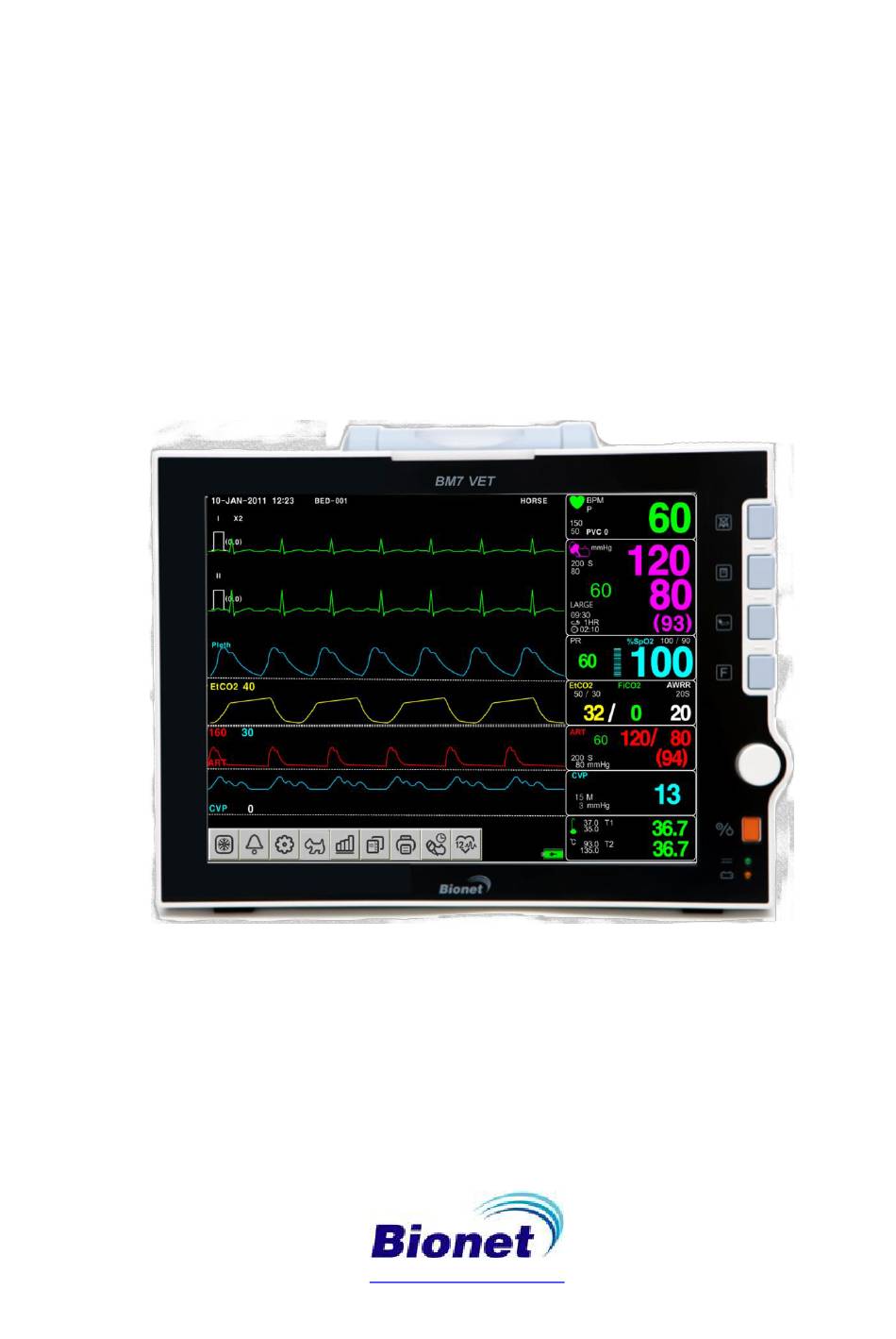

  • Page 1 BM7VET Operation Manual Veterinary Patient Monitor For Veterinary Use Only Ver. 2.12 2016.12.19 www.ebionet.com...

  • Page 2: Table Of Contents

    BM7VET User’s Manual Table of Contents Table of Contents ..........................2 1. BASIC ..........................7 1.1 CE Standard Information ......................8 1.2 Read before Use ......................... 9 How to Contact Us ............................9 Warranty Period ............................10 Warning, Caution, Note ..........................11 General Precaution on Environment ......................
  • Page 3 BM7VET User’s Manual PARAMETER2 LEVEL ..........................59 ARRHYTHMIA LEVEL ..........................60 ALARM REVIEW ............................. 60 ALARM LIST ............................61 SAVE CONDITION ..........................62 ALARM VOLUME ............................ 62 ALARM PRINT ............................63 NURSE CALL ............................63 NURSE CALL TYPE..........................64 NURSE CALL DURATION ........................64 NURSE CALL LEVEL ..........................
  • Page 4 BM7VET User’s Manual 5.3 ECG Data Setup........................98 ALARM LIMIT ............................99 QRS VOLUME ............................101 DISPLAY ..............................101 ECG FILTER ............................102 ECG SWEEP SPEED ..........................103 ECG SIZE..............................104 ECG VIEW ............................... 105 HR Source ..............................105 ARRHYTHMIA SETTING ........................106 ARRHYTHMIA ALARM LEVEL ......................
  • Page 5 BM7VET User’s Manual 10. EtCO2 ..........................164 10.1 Introduction ......................... 165 10.2 EtCO2 Parameter Window ....................171 10.3 EtCO2 Parameter Setting Menu ..................172 ALARM LIMIT(Upper/lower limit value of alarm) ................173 WAVEFORM SCALE (Measured waveform scale setting) ..............174 EtCO2 SWEEP SPEED ..........................
  • Page 6 BM7VET User’s Manual 15.2 SpO2 malfunction ........................ 212 15.3 Temp malfunction ........................ 212 15.4 NIBP malfunction ........................ 213 15.5 Abnormality in NIBP measurements ................. 213 15.6 Failure in battery recharge ....................214 15.7 Power failure ........................215 15.8 Periodic noises ........................216 15.9 Print failure ..........................

  • Page 7: Basic

    BM7VET User’s Manual 1. BASIC 1.1 CE Standard Information 1.2 Read before Use Warranty Period Warning, Caution, Note General Precaution on Environment General Precaution on Electric Safety Equipment Connection, Maintenance & Washing Equipment Connection Product Components Product Outline Principal Characteristics of Product...

  • Page 8: Ce Standard Information

    BM7VET User’s Manual 1.1 CE Standard Information Electromechanical safety standards met: Information supplied by the manufacturer of medical devices 1. EN 60601-1(2006) Medical electrical equipment Part1: General requirements for safety 2. EN 60601-1-2 (2007) (IEC 60601-1-2) Electromagnetic Compatibility Requirement and tests 3.

  • Page 9: Read Before Use

    Service@ebionet.com • URL: http://www.ebionet.com ※ In the event of a malfunction or failure, contact Service Dept. Of Bionet Co., Ltd. along with the model name, serial number, date of purchase and explanation of failure. ※ If you need the supply circuit diagram, component list, description and calibration instruction etc.

  • Page 10: Warranty Period

    “Consumer’s protection law” noticed by Korea Fair Trade Commission.  Warranty period is 1 year.(Two years in Europe).  We will repair or replace any part of the BM7VET found to be defective in usual operating circumstance for free to you.

  • Page 11: Warning, Caution, Note

    BM7VET User’s Manual Warning, Caution, Note For special emphasis on agreement, terms are defined as listed below in user’s manual. Users should operate the equipment according to all the warnings and cautions. Indicated in this manual In order to improve the product specifications and features are subject to change without notice.

  • Page 12: General Precaution On Environment

    BM7VET User’s Manual General Precaution on Environment - Do not keep or operate the equipment in the environment listed below. Avoid placing in an area exposed to moist. Avoid exposure to direct Do not touch the equipment sunlight with wet hand.
  • Page 13 BM7VET User’s Manual CAUTIONS Before Installation Compatibility is critical to safe and effective use of this device. Please contact your local sales or service representative prior to installation to verify equipment compatibility. Defibrillator Precaution Patient signal inputs labeled with the CF and BF symbols with paddles are protected against damage resulting from defibrillation voltages.
  • Page 14 MPSO as it will increase the chance of the single protective earth conductor interruption. Negligence BIONET does not assume responsibility for damage to the equipment caused by improperly vented cabinets, improper or faulty power, or insufficient wall strength to support equipment mounted on such walls.
  • Page 15 BM7VET User’s Manual NOTES Power Requirements Before connecting the device to the power line, check that the voltage and frequency. Ratings of the power line are the same as those indicated on the unit’s label. If this is not the case, do not connect the system to the power line until you adjust the unit to match the power source.

  • Page 16: General Precaution On Electric Safety

    Check the item listed below before operating the equipment. 1. Be sure that AC power supply line is appropriate to use. (AC100 - 240V) 2. Be sure that the power source is the one supplied from Bionet. (DC18V,2.5A,MW160 Made in BridgePower Co., Ltd.) 3.
  • Page 17 Manufacturer’s declaration - electromagnetic immunity The BM7VET system is intended for use in the electromagnetic environment specified below. The customer or the user of the BM7VET system should assure that it is used in such an environment Immunity test IEC 60601...
  • Page 18 Note: Uт is the a.c. mains voltage prior to application of the test level. The BM7VET system is intended for use in the electromagnetic environment specified below. The customer or the user of the BM7VET system should assure that it is used in such an environment Immunity test...
  • Page 19 Recommended Separation Distances Between Portable and Mobile RF Communications Equipment and the BM7VET system. The BM7VET system is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The user of the BM7VET system can help prevent electromagnetic...
  • Page 20 Guidance and manufacturer’s declaration - electromagnetic immunity The BM7VET system is intended for use in the electromagnetic environment specified below. The customer or the user of the BM7VET system should assure that it is used in such an environment Immunity test...
  • Page 21 BIONET or its representatives. Maintenance and Washing Equipment Connection Using various methods can clean BM7VET and its accessories. Please follow the methods mentioned below to avoid unnecessary damage or contamination to the Equipment. We do not repair with free of charge regardless of warranty period if it is contaminated or damaged with using dangerous material not designated for washing.

  • Page 22: Cleaning Applied Parts

    BM7VET User’s Manual Cleaning Applied Parts Do not permit any liquid to enter the monitor case and avoid pouring it on the monitor while cleaning. Do not allow water or cleaning solution to enter the connectors of jack cover. Recommended cleaning agents: Alcohol (Ethanol 70%, Iosopropanol 70%, Window cleaner) Ammonias (Dilution of ammonia <3%, Window cleaner)
  • Page 23 Warning Check the electrodes of batteries before changing them. · Operate BM7VET with internal electric power supply when unsure of external ground connection or installation occur. · Remove the 1st Battery when not using equipment for a while without any damage.

  • Page 24: Product Components

    BM7VET OPERATION MANUAL Product Outline BM7VET monitor is a product used for monitoring biological information and occurrence of a Animal. Main functions of the product include displaying information such as ECG, respiration, SpO2, NIBP, IBP, EtCO2 and temperature on its LCD screen and monitoring parameter, and alarming. It also prints out waves and parameters via a printer.

  • Page 25: Option Product

    Warning In order to avoid electrical shock, do not open the cover. Disassembling of the equipment should be done only by the service personnel authorized by BIONET Warning Users must pay attention on connection any auxiliary device via LAN port or nurse calling.

  • Page 26: Features Of Main Body

    BM7VET User’s Manual Features of Main Body FRONT Alarm Lamp Silence Alarm Key Print Go/ Stop NIBP Go/Stop Key Function Key Trim Knob Control Key Power Key BACK ALARM LAMP NURSE CALL RJ45 LAN Port VGA Output Protective Ground Terminal...
  • Page 27 BM7VET User’s Manual CONNECTOR NIBP CONNECTOR SpO2 CONNECTOR TEMPERATURE CONNECTOR EtCO2 CONNECTOR CONNECTOR PRINTER USB / SDCARD SLOT EXTENSION BATTERY SLOT BM7VOM-2.12 1. BASIC...

  • Page 28: Accessories

    BM7VET User’s Manual Accessories ECG Cable Cable + Extension Cable NIBP Cuff+ Extension cable Temperature sensor (Option) BM7VOM-2.12 1. BASIC...

  • Page 29: Equipment Sign

    BM7VET User’s Manual Equipment Sign ATTENTION : Consult accompanying documents TYPE CF APPLIED PART : Insulated (floating) applied part suitable for intentional external and internal application to the Animal including direct cardiac application. "Paddles" outside the box indicate the applied part is defibrillator proof.
  • Page 30 BM7VET User’s Manual Ground Printer Serial Port LAN Port AUX Connector Port DC Input Indicator DSUB 15pin external VGA port Battery Operation Indicator WIRELESS LAN power output Port DC Input Connector BM7VOM-2.12 1. BASIC...
  • Page 31 BM7VET User’s Manual USB PORT SD CARD SD CARD PORT SCREEN Swap / HOME Return TOUCH SCREEN LOCK NIBP Temperature Function Power on Power off Respiration Heart Pulse BM7VOM-2.12 1. BASIC...

  • Page 32: Function And Key

    BM7VET User’s Manual 1.4 Function and Key External Function The front panel of this product consists of an LCD screen and five function keys and one trim knob. Parameter window Alarm Lamp Silence Alarm Print Go/Stop NIBP Go/Stop Function Trim Knob...
  • Page 33 BM7VET User’s Manual Knob key is used to select menu by turning it clock or anticlockwise to move cursors Use the touch screen icons and windows and wave parameters, select an area and to adjust each menu selection. BM7VOM-2.12 1. BASIC...

  • Page 34: Standard Power Supply Application

    BM7VET User’s Manual 1.5 Standard Power Supply Application DC Power ⚫ Product information Manufacture: Bridgpower corp. Model name: MW160 Input power: 100~240V 1.2A Output power: 18V, 2.5A DC Power LED is lighted on when the DC Power is plugged into the inlet at the back of the product.

  • Page 35: Battery Power Supply Application

    BM7VET User’s Manual 1.6 Battery Power Supply Application Battery power can be supplied for enabling a portable use or a use during DC power failure. Further expansion equipment is mounted on the bottom of the battery, the battery is connected to the left side.
  • Page 36 5 minutes from that warning sign. In case of that warning sign with red and blink at icon box, charge the device immediately with DC power adaptor which is provided from BIONET. - Battery charging time: More than 6 hours/ include extension battery 10hours...

  • Page 37: To Insert And Remove The Battery Pack

    BM7VET User’s Manual To insert and remove the battery pack. Assembly or replacement, as shown in the figure below. BM7VOM-2.12 1. BASIC...

  • Page 38: The Extra Lithium-Ion Battery Information, And How To Replace

    Battery Type: SCR18650-032PTCW (10.8V - 4400mA, Li-ion) 1. Open the battery cover screws using 2. While pressing the battery cover by sliding (+)screwdriver on the left side of BM7VET back and opens. 3. Connect the connector located on the 4. Puts in the battery housing.

  • Page 39: The Impact Of Lithium-Ion Battery Technology On The Battery

    When the battery is stored inside a monitor that is continuously powered by an AC power source and is not powered by battery on a regular basis, the life of the battery may be less than 12 months. BIONET recommends that you remove the battery and store it near the monitor until it is needed for transport.

  • Page 40: General Manu Operation

    BM7VET User’s Manual 1.7 General Manu Operation Screen Composition Real time Wave Parameter Window Windows 10- JA N- 2011 12:23 B ED- 001 JOHN HORSE PVC 0 ( 0.0) mmHg ALARM PARAMETER1 LEVEL ( 0.0) LARGE PARAMETER2 09:30 ( 93)
  • Page 41 BM7VET User’s Manual NORMAL MODE HORSE 10- JA N- 2011 12:23 B ED- 001 HA PPY PVC 0 ( 0.0) mmHg ( 0.0) LARGE 09:30 02:10 100 / %SpO2 Pl et h Et CO2 EtCO2 FiCO2 AWRR 50 / A RT...

  • Page 42: Menu Selection

    BM7VET User’s Manual Menu Selection 10- JA N- 2011 12:23 B ED- 001 JOHN HORSE PVC 0 ( 0.0) mmHg ( 0.0) LRAGE 09:30 ( 93) 02:10 100 / %SpO2 Pl et h Turn or press the knob . Et CO2...

  • Page 43: Menu Composition

    BM7VET User’s Manual Menu Composition More Menu Window When the additional menu is selected it will set and cancel the functions. SETUP SET PARA HR SOURCE: SWEEP SPEED USER SERVICE UNIT SELECT SYSTEM MAKER SERVICE Numerical value sign widow This window displays a measured parameter, function setup, and the boundary of parameter values.
  • Page 44 BM7VET User’s Manual Menu selection by using Trim Knob key As the key is turn to the right, the menu selection moves clockwise. As the key is turn to the left, the menu selection moves counterclockwise. The menu selection is activated when you depress Trim Knob key.
  • Page 45 BM7VET User’s Manual Word feature menu The following figure shows the screen where the word sequence menu is activated within the word sequence correction menu. Here, the cursor moves over the words when the Trim Knob key is turned in the clockwise direction.
  • Page 46 BM7VET User’s Manual Operation menu The setup value changes without a selection when the menu is moved. ALARM PARAMETER1 LEVEL PARAMETER2 LEVEL ARRHYTHMIA LEVEL ALARM REVIEW ALARM VOLUME: ALARM PRINT: NURSE CALL; BM7VOM-2.12 1. BASIC...

  • Page 47: Animal/Data Management

    BM7VET User’s Manual 2. ANIMAL/DATA MANAGEMENT 2.1 ADMIT CHANGE ADMIT INFO DISCHARGE HEIGHT WEIGHT 2.2 ALARM ALL LIMITS ALARM PRINT ALARM VOLUME ALARM LEVEL ARRHYTH LEVEL ALARM REVIEW ALARM LIST SAVE ALARM LEVEL NURSE CALL BM7VOM-2.12 2. ANIMAL/DATA MANAGMENT...

  • Page 48: Admit

    BM7VET User’s Manual 2.1 ADMIT CHANGE ANIMAL INFO ANIMAL TYPE DEFAULT SETTING HEIGHT UNIT WEIGHT UNIT DRUG CAL. BM7VOM-2.12 2. ANIMAL/DATA MANAGMENT...

  • Page 49: Animal Type

    BM7VET User’s Manual ANIMAL TYPE Set the exercise environment of equipment in discharge status. HORSE : LARGE ANIMAL // DOG: MEDIUME ANIMAL PUPPY : SMALL ANIMIAL // CAT: TINY ANIMAL ADMIT ANIMAL TYPE: HORSE CHANGE HORSE ANIMAL INFO DEFAULT PUPPY...
  • Page 50 BM7VET User’s Manual Using barcode ANIMAL ID Registration This product, you can enter the ANIMAL ID in the form of a barcode using a USB barcode scanner to monitor Connect a barcode scanner to the USB HOST connector on the left side...

  • Page 51: Default Setting

    BM7VET User’s Manual DEFAULT SETTING Parameter range settings, alarm settings, and Animal-specific initialization settings. ADMIT ANIMAL TYPE: HORSE CHANGE ANIMAL INFO DEFAULT SETTING WEIGHT UNIT: HEIGHT UNIT: DRUG CAL. HEIGHT Unit of height is set as Cm / Inch. ADMIT...

  • Page 52: Weight

    BM7VET User’s Manual WEIGHT Unit of weight is set as Kg / LBS. ADMIT ADMIT ANIMAL ANIMAL TYPE: TYPE: HORSE HORSE CHANGE CHANGE ANIMAL ANIMAL INFO INFO DEFAULT DEFAULT SETTING SETTING WEIGHT WEIGHT UNIT: UNIT: HEIGHT HEIGHT UNIT: UNIT: DRUG CAL.

  • Page 53: Setting

    BM7VET User’s Manual SETTING Medicine and the Animal's weight is input by the input and calculate the amount to be injected is the menu. Menu to set parameters for calculating drug dosage: drug name, weight, solution volume,drug QTY, INF. rate(DOSE/MIN, DOSE/HR, DOSE/KG/MIN, INF RATE, DIRP RATE, DROP SIZE, INF TIME), etc.
  • Page 54 BM7VET User’s Manual Mcg/kg/mi DOPAMINE DOBUTAMINE NITROGLYCERIN NITROPRUSSIDE INOCOR units/hr HEPARIN INSULIN IU/hr STREPTOKINASE Dose Drug QTY Unit Setting range Unit Setting range mg/hr mg/min mg/kg/hr mg/kg/min 0.01 to 500 0.01 to 2000 mcg/hr mcg/min mcg/kg/hr mcg/kg/min units/hr 10 to 15000...
  • Page 55 BM7VET User’s Manual TITRATION TABLE Display calculated drug dosage in a titration table using parameters such as drug name, weight, solution volume,drug QTY, INF. rate(DOSE/MIN, DOSE/HR, DOSE/KG/MIN, INF RATE, DIRP RATE, DROP SIZE, INF TIME), etc. ADMIT SETTING DRUG NAME:...
  • Page 56 BM7VET User’s Manual RECALL Loading dose of medicine is stored in the menu. You can delete the saved settings. DRUG CAL. SETTING Vasopressin Nitroglycerin TITRATION TABLE Nitroprusside SAVE Levophed Isoproterenol RECALL BM7VOM-2.12 2. ANIMAL/DATA MANAGMENT...

  • Page 57: Alarm

    BM7VET User’s Manual 2.2 ALARM Alarm is divided into two, alarm for the Animal’s condition and for the product’s condition. The Animal’s alarm sounds when the diagnostic functions (ASYSTOLE, VTAC/VFIB, and VTAC) are detected. Each alarm sound differs in order in order and volume according to the levels of HIGH, MEDIUM, LOW and MESSAGE.

  • Page 58: Alarm For The Product

    BM7VET User’s Manual Alarm for the Product The machine gives alarm sounds for its system with a related message flashing. ALARM LIMITS：The machine enables one to see and change the limits of alarm for all parameter functions. ALARM PRINT：with an ON/OFF setup, the related information is printed out whenever an alarm is given.

  • Page 59: Parameter1 Level

    BM7VET User’s Manual PARAMETER1 LEVEL ECG, NIBP, SpO2, RESP and TEMP information about all of the alarm is set . ALARM PARAMETER1 NIBP-S SPO2-% RESP LEVEL MESSAGE MESSAGE MESSAGE MESSAGE PARAMETER2 NIBP-M SPO2-PR RESP-A LEVEL MESSAGE MESSAGE MESSAGE MESSAGE ARRHYTHMIA...

  • Page 60: Arrhythmia Level

    BM7VET User’s Manual ARRHYTHMIA LEVEL Diagnostics when the alarm is set to the priority of the alarm is set. ALARM PARAMETER1 LEVEL ASYSTOLE HIGH PAUSE MEDIUM PARAMETER2 LEVEL VTAC HIGH R ON T MEDIUM ARRHYTHMIA VTAC/VFIB HIGH V BRADY MEDIUM...

  • Page 61: Alarm List

    BM7VET User’s Manual ALARM LIST When an alarm activates, this shows the order of the alarms. The alarm can be stored up to 20 case. ALARM PARAMETER1 TIME LIST KIND ALARM LEVEL LIST ASYSTOLE 2011/03/18 10:22:53 MEDIUM PARAMETER2 LEVEL VTAC...

  • Page 62: Save Condition

    BM7VET User’s Manual SAVE CONDITION This determines the alarm level of parameters which are saved in the alarm list, when alarm occurs. If the higher level of alarm only occurs than the previously determined alarm level, data would be saved in the alarm list.

  • Page 63: Alarm Print

    BM7VET User’s Manual ALARM PRINT ON / OFF settings for when the alarm sounds are printed on thermal paper. MEDIUM alarm level is greater than if only the printer output. ALARM PARAMETER1 LEVEL PARAMETER2 LEVEL ARRHYTHMIA LEVEL ALARM REVIEW ALARM VOLUME:...

  • Page 64: Nurse Call Type

    BM7VET User’s Manual NURSE CALL TYPE NURSE CALL function call when an alarm condition is set way. NORMAL OPEN: RELAY OPEN when ALARM does not ring, CLOSE when ALARM does ring. NORMAL CLOSE: RELAY CLOSE when ALARM does not ring, OPEN when ALARM does ring.

  • Page 65: Nurse Call Level

    BM7VET User’s Manual NURSE CALL LEVEL NURSE CALL alarm level is set to operate. LOW : If the alarm is raised above the LOW level NURSE CALL call. MEDIUM: If the alarm is raised above the MEDIUM level NURSE CALL call.

  • Page 66: Setup

    BM7VET User’s Manual 3. SETUP 3.1 SETUP DISPLAY DEMO USER SERVICE MAKER SERVICE BM7VOM-2.12 3. SETUP...

  • Page 67: Setup

    BM7VET User’s Manual 3.1 SETUP The Settings menu, the following window is displayed, pressing the icon shown above. SET PARA : Measurement function selected. HR SOURCE: Set and select HR/PR source. It can choose between ECG and SPO2. SWEEP SPEED: Set speed of Waveform display.

  • Page 68: Set Para

    BM7VET User’s Manual SET PARA Select measurement function to use. SETTING SET PARA SPO2 RESP NIBP HR SOURCE: TEMP IBP1 IBP2 EtCO2 SWEEP SPEED USER SERVICE UNIT SELECT SYSTEM MAKER SERVICE HR/PR SOURCE This menu is used to set the source that detects heart and pulse rate.

  • Page 69: Set Sweep

    BM7VET User’s Manual SET SWEEP Set speed of drawing wave signal pattern in this widow. SETUP SET PARA HR SOURCE: ECG/SpO2/IBP SWEEP SPEED: 6.25mm/s 12.5mm/s 25mm/s SWEEP SPEED 25mm/s 50mm/s USER SERVICE RESP/EtCO2 UNIT SWEEP SPEED: SELECT 6.25mm/s 12.5mm/s 12.5mm/s...

  • Page 70: Set Unit Name

    BM7VET User’s Manual SET UNIT NAME Set up for Equipment name SETTING SET PARA SET UNIT SET BED NAME : NUMBER : DATE&TIME HR SOURCE: SWEEP W-LAN : DEMO : SPEED SOUND : USER SERVICE AC FILTER : COLOR 60Hz...

  • Page 71: Set Bed Number

    BM7VET User’s Manual SET BED NUMBER Set up for Animal bed number. Allowable setters are from 1 to 255. SETTING SET PARA SET UNIT SET BED NAME : NUMBER : DATE&TIME HR SOURCE: SWEEP W-LAN : DEMO : SPEED SOUND :...

  • Page 72: Set Date & Time

    BM7VET User’s Manual SET DATE & TIME Set date and time of equipment. Press the SET button after each input change you want to change the year, month, day, hour, minute, and second item during the setting will be entered.

  • Page 73: W-Lan

    BM7VET User’s Manual W-LAN Power supplying of W-LAN module could be adjusted with this function SETTING SET PARA SET UNIT SET BED NAME : NUMBER : DATE&TIME HR SOURCE: SWEEP W-LAN : DEMO : SPEED SOUND : USER SERVICE AC FILTER :...

  • Page 74: Demo

    BM7VET User’s Manual DEMO Set ON/OFF DEMONTRATION of equipment. SETTING SET PARA SET UNIT SET BED NAME : NUMBER : DATE&TIME HR SOURCE: SWEEP W-LAN : DEMO : SPEED SOUND : USER SERVICE AC FILTER : COLOR 60Hz SELECT FILE COPY...

  • Page 75: Color Select

    BM7VET User’s Manual COLOR SELECT This is the menu to set the waveform and parameter color selection. It has ten color below table. The color of parameter could be changed in ten colors from following table. SETTING SET PARA SET UNIT...

  • Page 76: Usb File Copy

    BM7VET User’s Manual USB FILE COPY Menu to save the file on the USB SAVE: command to save TREND DATA in the USB memory. CANCEL: command to cancel TREND DATA in the USB memory. SETTING SET PARA SET UNIT SET BED...
  • Page 77 BM7VET User’s Manual Save the date-hour-minute format. CSV file is stored. The figure below Microsoft Excel program to open the files that are stored on this screen is ① date data items and to properly view the data in this column, the cell format is set to "day-month-year".

  • Page 78: Unit Select

    BM7VET User’s Manual UNIT SELECT This is the menu for converting the units of BM7VET. The units of parameters for pressure, ST LEVEL, Temperature are able to convert kPa  → mmHg Pressure: mm  → mV ℃  → ℉...
  • Page 79 BM7VET User’s Manual HOST IP: Press the SET button to set the address of the remote sites to send and receive data HOST IP HOST IP DEVICE IP: Press the SET button to set the address of the sending and receiving equipment...
  • Page 80 BM7VET User’s Manual SUBNET : Bit address that set which need to see when the network settings, press the SET button to set SUBNET SUBNET GATEWAY : Press the SET button to set the address that set up a connection at the...

  • Page 81: Maker Service

    BM7VET User’s Manual MAC ADDR : Press the SET button to set the hardware address for the network settings (MAC ADDR 는 Impossible to modify the user MAC ADDR MAC ADDR Caps SHFT Space MAKER SERVICE Maker service is a menu is used by manufacturers.

  • Page 82: Freeze Menu

    BM7VET User’s Manual FREEZE MENU If you select the icon which is located in the far left in the icon menu with controlling a rotary switch, the wave window is held and is maintained as the previous status, at the same time the parameter windows is normally showing the current Animal’s status.

  • Page 83: Trend

    BM7VET User’s Manual 4. TREND 4.1 TREND GRAPHIC TREND TABLE TREND TREND WINDOW SETUP BM7VOM-2.12 4. TREND...

  • Page 84: Trend

    BM7VET User’s Manual 4.1 TREND TREND shows saved data graphically displayed with numeric values. Real-time data recording duration is 1 minute. Amount of saving time is for this data will be saving for 168hours. The following entries are stored. (HR,ST,PVC,NIBP(S/M/D),RESP,SPO2%,SPO2-PR,TEMP1,TEMP2,IBP1(S/M/D),IBP1-...

  • Page 85: Graphic Trend

    BM7VET User’s Manual GRAPHIC TREND Wave Data can be stored and seen according to section. TREND TREND OxyCRG TABULAR GRAPHIC WINDOW TREND TREND TREND SETUP 15-02-2011 22:13 GRAPHIC TREND HR(80) ST(0.2) PVC(0) 2.0mV 99/min 150RPM 350BPM -2.0 22:13 22:28 22:43 22:58 |<...

  • Page 86: Time Interval

    BM7VET User’s Manual TIME INTERVAL One can store data and set up time. TREND WINDOW SETUP Set the trend display window that will show the real time wave window. TREND TREND OxyCRG TABULAR GRAPHIC WINDOW TREND TREND TREND SETUP SET TREND...

  • Page 87: Set Trend Para

    BM7VET User’s Manual SET TREND PARA Set visible parameter in a screen. TREND TREND OxyCRG TABULAR GRAPHIC WINDOW TREND TREND TREND SETUP SET TREND PARA SPO2 RESP NIBP TEMP IBP1 IBP2 EtCO2 TIME PERIOD 30MIN 60MIN 90MIN 3HRS 6HRS 12HRS TIME PERIOD PARA Set visible time period in a screen.

  • Page 88: Trend Print

    BM7VET User’s Manual TREND PRINT Graphic: select the number which selects a graphic trend and press print to prints the selected trend. Table: select the table number to be print and press print to receive print all the data in the selected Animal admit (Admit) table.

  • Page 89: Ecg

    BM7VET User’s Manual 5. ECG 5.1 Outline Color and Name for Each Cable Size ECG Connector Location and Measurement Cable 5 Lead Electrode Attached Location 3 Lead Electrode Attached Location Method to Attach Electrode to Baby 5.2 ECG Data Window 5.3 ECG Data Setup...

  • Page 90: Introduction

    BM7VET User’s Manual 5.1 Introduction It calculates the heart rate with 3 or 5 leads or10 leads ECG signal acquisition and perform the alarm according to the setting value. Colors and Standards of Cables AHA：American Heart Association (U.S.A. Certification) IEC：International Electro technical Commission (Europe Certification)

  • Page 91: Position Of Ecg Connector And Measuring Cable

    BM7VET User’s Manual Position of ECG Connector and Measuring Cable ECG connecter +detect cable Attaching Electrodes to the Animal 1. Shave excess hair. With a piece of cotton pad moistened with alcohol, clean the Animal’s skin where the electrodes should be mounted. Avoid wrinkled or uneven skin areas. Wipe off the alcohol with a dry cotton pad.

  • Page 92: Choosing An Ecg Lead For Arrhythmia Monitoring

    BM7VET User’s Manual Choosing an ECG lead for Arrhythmia Monitoring It is very important to select a suitable lead for arrhythmia monitoring. Guidelines for non-paced Animals: ✓ QRS should be tall and narrow(recommended amplitude > 0.5mV) ✓ R wave should be above or below the baseline (but not bi-phasic) ✓...

  • Page 93: Position Of 10-Lead

    BM7VET User’s Manual 10 Position of 10-Lead BM7VOM-2.12 5. ECG...

  • Page 94: Position Of 5-Lead

    BM7VET User’s Manual 5 Position of 5-Lead BM7VOM-2.12 5. ECG...

  • Page 95: Position Of 3-Lead Wrier Electrode

    BM7VET User’s Manual Position of 3-Lead Wrier Electrode BM7VOM-2.12 5. ECG...

  • Page 96: Ecg Data Window

    BM7VET User’s Manual 5.2 ECG Data Window QRS: Detects QRS, and Pace Detector flashes when QRS is Indicators: detected. Detects and displays the Animal’s pace maker and flashes. Heart Rate Alarm Heart Rate Alarm Limit: Decides the Limit: Decides the...
  • Page 97 BM7VET User’s Manual Safety Precautions Warning CABLES — Route all cables away from Animal's throat to avoid possible strangulation. CONDUCTIVE CONNECTIONS — Extreme care must be exercised when applying medical electrical equipment. Many parts of the human/machine circuit are conductive, such as the Animal, connectors, electrodes, transducers.

  • Page 98: Ecg Data Setup

    BM7VET User’s Manual 5.3 ECG Data Setup A setup window appears at lower part of the screen when the Trim Knob Key is pressed in the ECG Parameter Window.Selection is made by pressing the Trim Knob Key, while movement across the menu is performed by turning the key either clock or anticlockwise.

  • Page 99: Alarm Limit

    BM7VET User’s Manual ALARM LIMIT Alarm Limit is 0 ~ 350BPM. ECG alarm feature ON / OFF and the menu is set to LEVEL. ALARM LEAD MESSAGE MESSAGE -1.0 MESSAGE SELECT VOLUME: ALARM LEVEL ALARM HIGH MESSAGE DISPLAY ARRHYTHMIA MESSAGE...
  • Page 100 BM7VET User’s Manual TRACE I SELECT MENU ALARM TRACE I: LEAD NONE SELECT TRACE II: VOLUME: DISPLAY ARRHYTHMIA SETTING ST / PVC PACE MAKER: TRACE II SELECT MENU ALARM TRACE I: LEAD NONE SELECT TRACE II: VOLUME: DISPLAY ARRHYTHMIA SETTING...

  • Page 101: Qrs Volume

    BM7VET User’s Manual QRS VOLUME Move the Key to select a volume rate from OFF, 10% to 100%. SpO2 volume setting is set OFF automatically. ALARM LEAD SELECT VOLUME: DISPLAY ARRHYTHMIA SETTING 100% ST / PVC PACE MAKER: 12LEAD ECG ANALYSIS menu option.

  • Page 102: Ecg Filter

    BM7VET User’s Manual ECG FILTER One may select from three frequency types for WAVE FILTER. MONITOR 0.5Hz ~ 40Hz MODERATE 0.5Hz ~ 25Hz MAXIMUM 5Hz ~ 25Hz DIAGONOSIS 0.05Hz ~ 150Hz ALARM ECG FILTER: MONITOR MODERATE MONITOR LEAD MAXIMUM DIAGNOSIS...

  • Page 103: Ecg Sweep Speed

    BM7VET User’s Manual ECG SWEEP SPEED ECG speed on the LCD is 25 mm/s. Speed is changeable to 6.25, 12.5, 25, 50mm/s. ALARM ECG FILTER: MONITOR MODERATE MONITOR LEAD MAXIMUM DIAGNOSIS SELECT SWEEP SPEED: 6.25mm/s 12.5mm/s VOLUME: 25mm/s 25mm/s 50mm/s...

  • Page 104: Ecg Size

    BM7VET User’s Manual ECG SIZE The size is changeable to X0.25, X0.5, X1, X2, X4. ALARM ECG FILTER: MONITOR MODERATE MONITOR LEAD MAXIMUM DIAGNOSIS SELECT SWEEP SPEED: 6.25mm/s 12.5mm/s VOLUME: 25mm/s 25mm/s 50mm/s DISPLAY ECG SIZE: X0.25 X0.5 ARRHYTHMIA SETTING...

  • Page 105: Ecg View

    BM7VET User’s Manual ECG VIEW The number of ECG wave could be configured with this function. In case of 1 CH, there are 2 traces of 1 CH data at the ECG wave. ⚫ 3LEAD : 1CH ⚫ 5LEAD : 1CH, 2CH, 7CH ⚫...

  • Page 106: Arrhythmia Setting

    BM7VET User’s Manual ARRHYTHMIA SETTING Analysis setting is divided to 3 menus. ALARM ARRHYTHMIA: FULL LETHAL FULL LEAD SELECT ARRHYTHMIA ASYSTOLE VTAC VTAC/VFIB ALARM HIGH HIGH HIGH VOLUME: LEVEL ACC. VENT COUPLET IRREGULAR HIGH HIGH HIGH DISPLAY PAUSE R ON T...
  • Page 107 BM7VET User’s Manual ACC VENT Adult— Accelerated ventricular occurs when six or more ventricular beats are detected with an average heart rate for the ventricular beat between 50 and 100 beats per minute. 0-2 years—Occurs when six or more ventricular beats are detected with an average heart rate for the ventricular beat between 60 and 160 beats per minute.

  • Page 108: Arrhythmia Alarm Level

    BM7VET User’s Manual NOTE The Tachy limit matches the high heart rate limit. If the high heart rate limit is changed, the Tachy limit changes. TRIGEMINY Occurs when two or more trigeminal cycles (a ventricular beat followed by two non- Ventricular beats) are detected.

  • Page 109: St/Pvc

    BM7VET User’s Manual ST/PVC ST signal and setting related ST menu and PVC menu. ALARM TEMPLATE CH: LEAD SELECT ST ANALYSIS: VOLUME: PVC ANALYSIS: DISPLAY ISO (R-) ST (R+) ARRHYTHMIA SETTING ST / PVC > < > < PACE MAKER:...
  • Page 110 BM7VET User’s Manual ST ANALYSIS: ON/OFF ST analysis signal. ALARM TEMPLATE CH: LEAD SELECT ST ANALYSIS: VOLUME: PVC ANALYSIS: DISPLAY ISO (R-) ST (R+) ARRHYTHMIA SETTING ST / PVC > > < < PACE MAKER: INITIAL SETUP PVC ANALYSIS: Decision maker to display PVC value sign with ON/OFF...
  • Page 111 BM7VET User’s Manual INITIAL SETUP: ST measurements to factory settings (ISO R-: 80, ST R +: 108 ALARM TEMPLATE CH: LEAD SELECT ST ANALYSIS: VOLUME: PVC ANALYSIS: DISPLAY ISO (R-) ST (R+) ARRHYTHMIA SETTING ST / PVC > > <...
  • Page 112 BM7VET User’s Manual PACE：Sets up ON/OFF to indicate that the Animal has PACE. The PACE menu option enables/disables the pacemaker detection program. ALARM LEAD SELECT VOLUME: DISPLAY ARRHYTHMIA SETTING ST / PVC PACE MAKER: Be aware of the following when monitoring a Animal with a pacemaker.

  • Page 113: Ch Ecg Analysis

    BM7VET User’s Manual 12 CH ECG ANALYSIS There are 8 sub-menus for 12 CH ECG ANALYSIS menu as following. The appropriate menu option applies 12CH ECG equipment can be used in ANALYSIS ANALYSIS VENT.RATE --- BPM REPORT PR INT. --- ms QRS DUR.
  • Page 114 PROBABLE RIGHT VENTRICULAR HYPERTROPHY CLEAR DIAG. SETUP ADMIT INFO. If ECG Board sends diagnosis code to BM7VET, it will display the interpretation of following table at the report and the screen. NUMBER CODE DESCRIPTION Sinus Node Rhythms and Arrhythmias 111 Normal Sinus Rhythm 112 Sinus Bradycardia (HR : 50-59) 113 Sinus Bradycardia (HR <...
  • Page 115 BM7VET User’s Manual 231 PAC(Premature Atrial Contraction) 232 Bigeminy PAC 233 Trigeminy PAC 234 short run of PAC 241 PJC 242 Bigeminy PJC 243 Trigeminy PJC 244 short run of PJC 251 EAB(Escape Atrial Beat) 252 EAR (Escape Atrial Rhythm, HR : 50-54) 253 EAR (Escape Atrial Rhythm: HR <...
  • Page 116 BM7VET User’s Manual 522 Low Voltage (Limb Leads) 523 Low Voltage (Chest Leads) Chamber Hypertrophy or Enlargement 611 BAE (Biatrial Enlargement) 621 RAE (Right Atrial Enlargement) 631 LAE (Left Atrial Enlargement) 641 BVH (Biventricular Hypertrophy) 650 probable RVH 651 RVH (Right Ventircular Hypertrophy)
  • Page 117 BM7VET User’s Manual Warning This device uses a computerized 12-lead ECG analysis program which can be used as a tool in ECG tracing interpretation. This computerized interpretation is only significant when used in conjunction with clinical findings. All computer-generated tracings should be overread by a qualified physician.
  • Page 118 BM7VET User’s Manual ANALYSIS WAVE Showing interpreted ECG wave for 2.5 seconds period of each 3 channels in total 10 seconds from starting Interpretation. For example, each channel shows each time period as CH I, II, III show for 0~2.5 second section, CH aVR, aVL, aVF show in 2.5~5 second section, CH V1, V2, V3 show in 5~7.5 second section and CH V4, V5, V6 show in 7.5~ 10 second section.
  • Page 119 BM7VET User’s Manual CLEAR This is the deleting function for result of interpretation. The results of analysis report, average wave and analysis wave are deleted if this menu is selected. ANALYSIS ANALYSIS REPORT AVERAGE WAVE ANALYSIS WAVE SENSITIVITY CLEAR DIAG.
  • Page 120 BM7VET User’s Manual ADMIT INFO This is a menu for setup the configuration of interpretation. This is made up with 3 sub-menus. ANALYSIS AGE: ADULT LESS 1 DAY 2 DAY ADULT ANALYSIS REPORT 6 DAY 3 WEEK 2 MONTH LESS 1...
  • Page 121 BM7VET User’s Manual CAUTION FDA POSTMARKET SAFETY ALERT The United States FDA Center for Device and Radiological Health issued a safety bulletin October 14, 1998. this bulletin states “that minute ventilation rate-adaptive implantable pacemakers can occasionally interact with certain cardiac monitoring and diagnostic programmed rate.”...
  • Page 122 BM7VET User’s Manual Trouble shooting Problem : Inaccurate heart rate and/or false a systole. Solution : Check ECG signal from Animal: 1. Check/adjust lead placement. 2. Check/perform skin preparation. 3. Check/replace electrodes. Check amplitude of ECG waveform: 1. Select ECG parameter label.

  • Page 123: Spo2

    BM7VET User’s Manual 6. SpO 6.1 Outline Connector Location and Measuring Cable 6.2 SpO2 Data Window 6.3 SpO2 Data Setup SWEEP SPEED RATE VOLUME ALARM ALARM LIMIT BM7VOM-2.12 6. SpO2...

  • Page 124: Outline

    BM7VET User’s Manual 6.1 Outline SPO2 monitoring is a noninvasive technique used to measure the amount of oxygenated hemoglobin and pulse rate by measuring the absorption of selected wavelengths of light. The light generated in the probe passes through the tissue and is converted into an electrical signal by the photodetector in the probe.

  • Page 125: Spo2 Data Window

    BM7VET User’s Manual 6.2 SpO Data Window pulse rate： Indicates Alarm Limit： Indicates an SpO pulse rate an SpO alarm limit %S pO2 100 / Oxygen Concentration in the Strength indicators： Blood(SpO2 value) Indicates SpO Strength in a bar : Indicates %SpO in numbers.

  • Page 126: Signal And Data Validity

    BM7VET User’s Manual Signal and Data Validity It is extremely important to determine that the probe is attached to the Animal correctly and the data is verifiable. To make this determination, three indications from the monitor are of assistance—signal strength bar, quality of the SPO2 waveform, and the stability of the SPO2 values. It is critical to observe all three indications simultaneously when ascertaining signal and data validity.

  • Page 127: Spo Data Setup

    BM7VET User’s Manual 6.3 SpO Data Setup ALARM ： Menu in which SpO limits are set up. RATE VOLUME：Menu in which RATE VOLUME is set up BM7VOM-2.12 6. SpO2...

  • Page 128: Alarm

    BM7VET User’s Manual ALARM Two menus: ALARM LIMIT, ALARM provided in the alarm menu Number setting of alarm value of %SpO 0 ~ 100 2 is Warning sound or message displays configuration menu when an alarm is triggered. SpO2 ALARM...

  • Page 129: Lead Fault Condition

    BM7VET User’s Manual LEAD FAULT Condition When using a reusable finger probe, there is a system alarm to alert you when the probe is off the Monitor. The monitor defaults this “ LEAD FAULT” condition as a System Warning alarm. however, You can set it as a System ALARM LEVEL in Monitor Defaults.

  • Page 130: Respiration

    BM7VET User’s Manual 7. RESPIRATION 7.1 Outline Respiration Connector and Measuring Cable 7.2 RESPIRATION Data Window 7.3 RESPIRATION Data Setup Respiration Size Alarm Limit BM7VOM-2.12 7. RESPIRATION...

  • Page 131: Outline

    BM7VET User’s Manual 7.1 Outline Respiration via ECG Lead I or Lead II electrode makes the skin area of the chest enlarged, causing changes in the resistance of skin. Through this it calculates respiration value per minutes and performs the alarm function according to limit value.

  • Page 132: Respiration Data Window

    BM7VET User’s Manual 7.2 Respiration Data Window Breathe indicator: Indicates the detected breath Apnea Limit Setting: Apnea limit sign Respiration alarm limit: Breathing Number: Displays Indicates respiration limits. the number of respiration per minute. BM7VOM-2.12 7. RESPIRATION...

  • Page 133: Respiration Data Setup

    BM7VET User’s Manual 7.3 Respiration Data Setup ALARM: Respiration alarm setting menu APNEA DETECT: A menu to setup APNEA alarm display LEAD SELECT : Changing the reference LEAD for respiration SWEEP SPEED: A menu to setup Wave Display of speed RESP SIZE: A menu to setup Wave Display BM7VOM-2.12...

  • Page 134: Alarm

    BM7VET User’s Manual ALARM Alarm menu provide ALARM LIMIT and ALARM SOUND . RESP ALARM RESP RESP-A APNEA MESSAGE MESSAGE DETECT: LEAD SELECT: ALARM LEVEL ALARM HIGH SWEEP MESSAGE SPEED: 12.5mm/s RESP MESSAGE SIZE: MEDIUM HIGH <- Alarm Limit of Respiration Numeric Value is 5 ~ 150bpm Alarm Limit of RESPIRATION APNEA Numeric Value is 3 ~ 30sec.

  • Page 135: Apnea Detect

    BM7VET User’s Manual APNEA DETECT Deciding function of activating Apnea Alarm LEAD SELECT This is for changing the reference LEAD for respiration LEAD I or LEAD II can be selected. RESP ALARM APNEA DETECT: LEAD SELECT: SWEEP SPEED: 12.5mm/s RESP SIZE: BM7VOM-2.12...

  • Page 136: Respiration Speed

    BM7VET User’s Manual RESPIRATION SPEED Wave pattern speed is 6.25 , 12.5 , 25 mm/s. RESP ALARM APNEA DETECT: LEAD SELECT: SWEEP SPEED: 6.25mm/s 12.5mm/s 25mm/s 12.5mm/s RESP SIZE: RESPIRATION SIZE Set wave pattern size X2~ X10. RESP ALARM APNEA...

  • Page 137: Nibp

    BM7VET User’s Manual 8. NIBP 8.1 Outline NIBP Connector Location and Cuff 8.2 NIBP Data Window 8.3 NIBP Data Setup ALARM CUFF SIZE INFLATION INTERVAL STAT NIBP VITAL SIGN UNIT SELECT BM7VOM-2.12 8. NIBP...

  • Page 138: Outline

    BM7VET User’s Manual 8.1 Outline This function is to measure minimum, Maximum and average blood pressure by using Oscillometric method Position of NIBP Connecter and cuff NIBP Connector INFANT CUFF BM7VOM-2.12 8. NIBP...
  • Page 139 BM7VET User’s Manual POSITION OF CUFF (CAT) POSITION OF CUFF (DOG) Note As the value of NIBP can vary according to the age and sex of a Animal, the user needs to set up right data in Parameter Menu before measurement.
  • Page 140 BM7VET User’s Manual Note As the value of NIBP can vary according to the age and sex of a Animal, the user needs to set up right data in parameter Menu before measurement. Tubes between the cuff and the monitor are not kinked or blocked.

  • Page 141: Nibp Data Window

    BM7VET User’s Manual 8.2 NIBP Data Window Alarm Limit：Indicates alarm limit of blood pressure. Systolic pressure： Indicates the maximum limit of blood pressure display Diastolic blood pressure：Indicates the minimum limit of Measurement time blood pressure Indicates the completion time of measuring Interval Time: Indicates Mean Value：...

  • Page 142: Nibp Data Setup

    BM7VET User’s Manual 8.3 NIBP Data Setup ALARM： A menu to set the Alarm CUFF SIZE：A menu to select cuff size INFLATION: Initial Pressurization setting menu INTERVAL ：A menu to set Interval time when measures the blood pressure periodically NIBP STAT : 5 Minutes continuous measurement...

  • Page 143: Alarm

    BM7VET User’s Manual ALARM The alarm provides ALARM LIMIT and ALARM SOUND. Alarm setting Numeric Value of Systolic, Diastolic, and mean pressure is 10 ~ 360mmHg. The menu which decide activate of warning sign and message display when the respiration alarm is...

  • Page 144: Cuff Size

    It is a function for set the maximum initial inflation pressure value.The range of initial inflation pressure value of BM7VET is as follows. LARGE : 120 – 250 mmHg / MEDI. : 120 – 250mmHg / SMALL : 60 – 140mmHg Default Value: LARGE : 170 mmHg / MEDI.

  • Page 145: Interval

    BM7VET User’s Manual INTERVAL This menu is used for selecting intervals when measures the blood pressure automatically. Select a target interval from 1min, 2, 3, 4, 5, 10, 15, 20, 30, 1hour, 2, 4, 8. INTERVAL is set after the start, press the NIBP START NIBP KEY periodically.
  • Page 146 BM7VET User’s Manual If you select the icon from the main screen of the equipment to the fast cycle setting from the following menu window you can select the measurement cycle. NIBP 1MIN 2MIN 3MIN 4MIN 5MIN 10MIN 15MIN 20MIN...

  • Page 147: Nibp Stat

    BM7VET User’s Manual NIBP STAT 5 minutes to continuous measurement mode. NIBP VITAL SIGN 15 recently measured blood pressure values and pulse rate are recorded. NIBP TIME SYS / DIA (MEAN) ALARM 2011/03/18 10:22:53 120 / 80 (94) 65BPM 2011/03/18 10:23:53...

  • Page 148: Unit Select

    BM7VET User’s Manual UNIT SELECT It is a function to set blood pressure measurement unit. The blood pressure measurement unit provides mmHg and kPa. Warning Pay attention to not to block connecting hose when you put cuff on Animal. Cuff or hose connection for leaks periodically. Measurements can be inaccurate if air leaks.

  • Page 149: Ibp

    BM7VET User’s Manual 9. IBP 9.1 Description IBP Connectors & Accessories 9.2 IBP Data Window 9.3 IBP Data Setting CHANGE NAME (Configuration of measuring position) SCALE (Configuring size of measurement waveform) ALARM LIMITS (Maximum / Minimum Alarming Values) SETTINGS (Various Settings) ZERO (Zero-Point Setting) BM7VOM-2.12...

  • Page 150: Description

    BM7VET User’s Manual 9.1 Description IBP has an alarming function based on the maximum & minimum alarming values configured by measuring the systolic, diastolic and mean blood pressure values with signal processing of electric signals which are transformed from changes in impedance components according to the changes of blood flow in vessels.
  • Page 151 BM7VET User’s Manual IBP ACCESSARY MEDEX Kit is used for IBP MONITORING KIT. LogiCal Disposable Pressure Transducers Cartridges and Monitoring kit BM7VOM-2.12 9. IBP...
  • Page 152 BM7VET User’s Manual TranStar Disposable Pressure Transducers Cartridges and Monitoring kit BM7VOM-2.12 9. IBP...

  • Page 153: Ibp Data Window

    BM7VET User’s Manual 9.2 IBP Data Window Different data windows are displayed on the screen according to the measuring positions. Measuring Position: Position of blood pressure measurement Systolic Blood Pressure: Indicating maximum blood pressure value Diastolic Blood Pressure: Indicating minimum blood pressure value...

  • Page 154: Ibp Data Setting

    BM7VET User’s Manual 9.3 IBP Data Setting Labels for measuring positions are described on each menu. ALARM: Menu to set alarming range. BP FILTER : Menu to set the filter to be applied when measuring. ZERO: Menu to set zero-point of Transducer.
  • Page 155 BM7VET User’s Manual ALARM LIMIT Alarming limits vary according to measuring positions. The settable alarming range for systolic pressure, diastolic pressure and mean pressure is - 50 ~ 350mmHg. IBP-S IBP-M ALARM MESSAGE MESSAGE BP FILTER: IBP-D IBP-PR MESSAGE MESSAGE...
  • Page 156 BM7VET User’s Manual ZERO ART: (Zero-point Adjustment) Use ZERO option to set the zero-point of Transducer. Procedures (Zero reference) 1) Close the transducer stopcock on the Animal’s side. 2) Open the venting stopcock on the air side. 3) Press the knob switch on the monitor panel.
  • Page 157 BM7VET User’s Manual CHANGE NAME (Setting Measuring Position) It performs the name changing function for a measuring position to monitor. The setting positions are ART, FEM, PAP, RAP, LAP, UAP, UVP, CVP, ICP and OTHER. ALARM BP FILTER: ZERO OTHER...
  • Page 158 BM7VET User’s Manual List & Description of IBP Measurement Parameter Label Parameter Window, Scales Menu Window or Alarm Limits Pop-up Menu will appear according to the Labels. IBP displays the measuring positions based on 10 labels shown in the below table.
  • Page 159 BM7VET User’s Manual SCALE (Setting size of measurement waveform) You can set the pressure range for measurement waveform on this menu. The selectable values mean the maximum blood pressure range value that can be shown in a waveform. ALARM BP FILTER:...
  • Page 160 BM7VET User’s Manual The below table shows the settable values of standard alarm limits and scales of parameters for label setting. Adult Neonatal Parameter High Scale High Scale ART-S ART-D ART-M ART-PR FEM-S FEM-D FEM-M FEM-PR UAP-S UAP-D UAP-M UAP-PR...
  • Page 161 BM7VET User’s Manual PULSE RATE PULSE RATE: Setting display of blood pressure pulse rate. ALARM BP FILTER: ZERO CHANGE NAME: SCALE: PULSE RATE: DISCON. ALARM: BM7VOM-2.12 9. IBP...
  • Page 162 BM7VET User’s Manual DISCONN. ALARM DISCONN ALARM: (Alarming function for disconnection) DISCONN ALARM MENU will be displayed when measurement label is set for ART, FEM and UAP. This function will be activated upon the following two conditions. 1. In case MEAN PRESSURE is not higher than 25mmHg.
  • Page 163 BM7VET User’s Manual CAL. TRANSDUC: A function to adjust a Transducer error on the monitor A function to adjust an error value based on the other index manometer. How to Adjust 1. Select a menu by pressing the knob switch key.

  • Page 164: Etco2

    BM7VET User’s Manual 10. EtCO2 10.1 INTRODUCTION Position of EtCO Connector and Accessory EtCO ACCESSORY 10.2 EtCO Parameter Window 10.3 EtCO Parameter Setting Menu BM7VOM-2.12 10. EtCO2...

  • Page 165: Introduction

    BM7VET User’s Manual 10.1 Introduction ETCO2(End-Tidal CO2) is a device to see the concentration of end-tidal carbon dioxide, which uses a method of measurement based on the non-dispersed IR absorption of CO2 using IR ray by sampling a certain part of respiration through pipe during respiration.
  • Page 166 BM7VET User’s Manual EtCO2 accessories for sidestream applications EtCO2 monitoring accessory uses the accessories for LoFlo™ sidestream module of Respironics Company. The airway adapters for sidestream intubated applications 3473ADU-00 Airway Adapter Weight: 4.5 grams Deadspace – adds approximately 7 Kit w/...
  • Page 167 BM7VET User’s Manual Connecting the LoFlo Sample Kit 1. The sample cell of the sampling kit must be inserted into the sample cell receptacle of the LoFlo Module as shown in Figure 1. A “click” will be heard when the sample cell is properly inserted.
  • Page 168 BM7VET User’s Manual EtCO2 connector position and accessory (Mainstream, Respironics) EtCO2 Connector CAPNOSTAT 5 mainstream CO2 sensor and connector Mainstream sensor Mainstream sensor connector EtCO2 accessories for mainstream applications EtCO2 monitoring accessory uses the accessories for CapnoStat 5 microstream sensor of Respironics Company.
  • Page 169 BM7VET User’s Manual The airway adapters for mainstream intubated applications 6063-00 Single-Animal Use Airway Adapter 6312-00 Single-Animal Use Airway Adapter 7007-00 Reusable Airway Adapter 7053-00 Reusable Airway Adapter BM7VOM-2.12 10. EtCO2...
  • Page 170 BM7VET User’s Manual Connecting the CAPNOSTAT® 5 CO2 Sensor to the Host System 1. Insert the CAPNOSTAT 5 CO Sensor connector into the receptacle of the host monitor as shown in Figure 1. 2. Make sure the arrows on the connector are at the top of the connector and line up the two keys of the connector with the receptacle and insert.

  • Page 171: Etco2 Parameter Window

    BM7VET User’s Manual 10.2 EtCO2 Parameter Window APNEA detection time Upper/lower limit value of alarm FiCO2 S: Display of apnea setting time in second unit Upper/lower limit value of alarm: Display of alarm setting range value for concentration of CO...

  • Page 172: Etco2 Parameter Setting Menu

    BM7VET User’s Manual 10.3 EtCO2 Parameter Setting Menu ALARM: A menu to set the alarm limit WAVE SCALE: menu to set the size of waveforms of the on-screen SWEEP SPEED: Speed is set to draw the signal waveform. (6.25mm/s, 12.5mm/s, 25mm/s) APNEA DETECT: Menu for the detection of apnea MODULE INFO.: Menu where you can see the MODULE information...

  • Page 173: Alarm Limit(Upper/Lower Limit Value Of Alarm)

    BM7VET User’s Manual ALARM LIMIT(Upper/lower limit value of alarm) Upper/lower limit value of alarm differs depending on the position of measurement. The basic setting range of alarm setting value for EtCO2, FiCO2, AWRR, APNEA. EtCO2 ALARM EtCO2 FiCO2 MESSAGE MESSAGE...

  • Page 174: Waveform Scale (Measured Waveform Scale Setting)

    BM7VET User’s Manual WAVEFORM SCALE (Measured waveform scale setting) This sets the range of measured waveform versus pressure. Selectable numerical value means the maximum pressure range value that is shown with waveform. Pressing the knob switch key and then selecting the desired range value displays the selected pressure range value below the upper dotted line among two dotted lines in the left middle of wave window.

  • Page 175: Apnea Detect

    BM7VET User’s Manual APNEA DETECT Turn the APNEA detection alarm off and on EtCO2 ALARM WAVE SCALE: 40mmHg SWEEP SPEED: 12.5mm/s APNEA DETECT: MODULE INFO. MODULE SETUP ZERO MODULE RESET APNEA ALARM: This performs a function to set the display of apnea message alarm.

  • Page 176: Module Info

    BM7VET User’s Manual MODULE INFO This is information for handling the EtCO2 module. EtCO2 ALARM WAVE SCALE: 40mmHg SENSOR PN SWEEP OEM ID SPEED: 12.5mm/s SENSOR SN APNEA DETECT: HW Revision NUM TOTAL USE TIME MODULE INFO. LAST ZERO TIME PUMP TOTAL USE TIME 0 MIN.

  • Page 177: Module Setup

    BM7VET User’s Manual MODULE SETUP This is information for handling the EtCO2 module. EtCO2 BAROMETRIC ALARM PRESSURE: 36.0 WAVE SCALE: TEMPERATURE: 40mmHg NO BREATH DETECT TIMEOUT: SWEEP SPEED: 12.5mm/s COMPENSATION: APNEA ANESTHETIC AGENT: DETECT: CURRENT ETCO2 20 S TIME PERIOD:...
  • Page 178 BM7VET User’s Manual CURRENT ETCO2 TIME PERIOD: This setting is used to set the calculation period of the ETCO value. The end-tidal CO value is the highest peak CO value of all end of expirations (end of breaths) over the selected time period.

  • Page 179: Zero

    BM7VET User’s Manual ZERO This function is used to initiate a Capnostat zero. A zero is used to correct for differences in airway adapter types. The Capnostat zero must be performed free of any CO2. 1. Set the Host to the zeroing function.

  • Page 180: Module Reset

    BM7VET User’s Manual MODULE RESET This performs a function to reset handling the EtCO2 module. Warning If defibrillation is performed while doing CO2 monitoring, remove the CO2 FilterLine from Animal Getting in touch with sensor cable without removing the FilterLine can result in serious electrical burn, shock, or injury due to electric discharge energy.

  • Page 181: Troubleshooting

    BM7VET User’s Manual 10.4 TROUBLESHOOTING Following is a list of some of the message that may appear on the monitor when monitoring CO2. The message should clear when normal operating criteria are met or a solution is found. * SENSOR OVER TEMP - Cause : The sensor temperature is greater than 40’C...
  • Page 182 BM7VET User’s Manual Note In the following monitoring conditions, the measured values may be inaccurate. Read the measured values carefully. 1. When using this in an environment of using nitrous oxide gas of high concentration 2. When using this in an environment where abrupt temperature change takes place 3.

  • Page 183: Temperature

    BM7VET User’s Manual 11. TEMPERATURE 11.1 Outline Temperature Connector and Measuring Cable 11.2 Temperature Data Window 11.3 Temperature Data Setup ALARM LIMIT UNIT SELECT BM7VOM-2.12 11. TEMPERATURE...

  • Page 184: Outline

    BM7VET User’s Manual 11.1 Outline This function is used to indicate the changes of resistance generated by the changes of temperature in numbers. The function involves the process of transferring the changes into electric signals. Temperature Connector and Measuring Cable...

  • Page 185: Temperature Data Window

    BM7VET User’s Manual 11.2 Temperature Data Window Unit： Displays temperature unit. 36.7 Temperature： 37.0 Displays 35.0 136.7 temperature. 93.0 135.0 Alarm limit temperature ： Indicates temperature limits Note The minimum measuring time required to obtain accurate readings at the specific body site is at least 3 minutes.

  • Page 186: Temperature Data Setup

    BM7VET User’s Manual 11.3 Temperature Data Setup ALARM： Temperature measurement alarm set UNIT: Temperature measurement unit set BM7VOM-2.12 11. TEMPERATURE...

  • Page 187: Alarm

    BM7VET User’s Manual ALARM Alarm menu provide ALARM LIMIT and ALARM. Setting numeric value is 15.0℃ ~ 45.0℃. TEMP ALARM TEMP1 42.0 TEMP2 30.0 TEMP UNIT: MESSAGE MESSAGE ℃ ALARM LEVEL ALARM HIGH MESSAGE MESSAGE MEDIUM HIGH <- BM7VOM-2.12 11. TEMPERATURE...

  • Page 188: Unit Select

    BM7VET User’s Manual UNIT SELECT Able to select unit with °C, °F. Warning To measure the peripheral temperature, attach the probe to the ankle or palm. If the patient sweats heavily or moves violently, fasten the pad with surgical tape.

  • Page 189: Print

    BM7VET User’s Manual 12. PRINT 12.1 Print Printer and Heat Sensitivity Paper Function and Setup Menu 12.2 Paper Change BM7VOM-2.12 12. PRINT...

  • Page 190: Print

    BM7VET User’s Manual 12.1 Print Printer and Heat Sensitivity Paper A printer used to print data onto thermal paper. Size of the thermal paper roll: 58mm wide x 38mm in diameter any thermal paper of same size can be used for the printer.

  • Page 191: Function And Setup Menu

    BM7VET User’s Manual Function and Setup Menu 1. Press the PRINT Key for continuous printing. 2. Select Printing Speed 25, 50 mm/s. PRINTER PRINTER SPEED: 50mm/s WAVE FORM 1: LEAD II WAVE FORM 2: SpO2 WAVE FORM 3: RESP PRINTER...
  • Page 192 BM7VET User’s Manual 3. Set up ALARM PRINT in the MORE menu to activate ALARM during printing. ALARM ALARM PRINT Medium less than the alarm level set alarm print output is not. leadfault alarm the alarm does not print the output.
  • Page 193 BM7VET User’s Manual PRINTER PRINTER SPEED: 25mm/s SPO2 RESP SpO2 RESP WAVE FORM I: LEAD II EtCO2 IBP1 IBP2 IBP1 IBP2 WAVE FORM II: SpO2 LEAD I WAVE FORM III: RESP PRINTER KEY: REAL TIME PRINTER TIME: CONT BM7VOM-2.12 12. PRINT...

  • Page 194: Printer Key

    BM7VET User’s Manual PRINTER KEY This menu is setup printing time delay in normal printing. There are two menus for time configuration. One is Real-time, another is Delayed Time. Real-time: This configuration makes printing out the newest data when the Printer Key is pushed.

  • Page 195: Printer Time

    This is configuration of printed time in normal printing. If the print out is not stopped in manual by PRINTER KEY, BM7VET print out for setup time after starting print out with PRINTER KEY. The configuration of time could be setup with 4 types in CONTINUOUS, 10 sec, 20 sec and 30 sec.

  • Page 196: Thermal Paper Storage

    BM7VET User’s Manual Thermal Paper Storage To avoid fading of traces or deterioration, follow these precautions: Note These precautions apply to both unused paper as well as paper that has already been run through the printer. • Store in cool, dark locations. Temperature must be below 27°C (80°F). Relative humidity must be between 40% and 65%.

  • Page 197: Paper Change

    BM7VET User’s Manual 12.2 Paper Change Open the window of the printer. Insert the paper roll offered with the product into the printing unit. Place the roll in a proper way so that the printed paper can roll out upwards.

  • Page 198: Message List

    BM7VET User’s Manual 13. MESSAGE LIST Function Message Details LEAD FAULT Cable is not properly connected. Animal’s finger is off the probe. CHEK PROBE LEAD FAULT Cable is not properly connected. LEAD FAULT Cable is not properly connected. RESP APNEA APNEA gives an alarm.

  • Page 199: Default Setting Value

    BM7VET User’s Manual 14. DEFAULT SETTING VALUE 14.1 HORSE-ICU Mode Alarm level High Medium Message Asystole VTAC/VFIB VTAC SHORT RUN ACC VENT BIGEMINY COUPLET IRREGULAR PAUSE R ON T TRIGEMINY V BRADY NIBP - S NIBP - M NIBP - D...

  • Page 200: Parameter Limits

    BM7VET User’s Manual Parameter Limits High NIBP-S NIBP-M NIBP-D -Rate RR(RESP) RR-Apnea T1 C/ ْ F 30.0/86.0 42.0/107.6 -0.4 T2 C/ ْ F 30.0/86.0 42.0/107.6 IBP1-S (ART) IBP1-M (ART) IBP1-D (ART) IBP2-S (CVP) IBP2-M (CVP) IBP2-D (CVP) IBP1/2-PR AWRR EtCO2 FiCO2 BM7VOM-2.12...

  • Page 201: Display

    BM7VET User’s Manual Display Patient Age Primary ECG Arrhythmia LETHAL Detect Pace Print Waveform1 LEAD II Print Waveform2 SpO2 Print Waveform3 Resp Alarm Print NIBP Interval NIBP Cuff Size LARGE RR(RESP) Lead Alarm Volume QRS Volume Pulse Volume ECG Lead Fault...

  • Page 202: Dog-Icu Mode

    BM7VET User’s Manual 14.2 DOG-ICU Mode Alarm level High Medium Message Asystole VTAC/VFIB VTAC SHORT RUN ACC VENT BIGEMINY COUPLET IRREGULAR PAUSE R ON T TRIGEMINY V BRADY NIBP - S NIBP - M NIBP - D -Rate RR-Apnea T1( ْ C) T2 ْ...

  • Page 203: Parameter Limits

    BM7VET User’s Manual Parameter Limits High NIBP-S NIBP-M NIBP-D -Rate RR(RESP) RR-Apnea T1 C/ ْ F 30.0/86.0 42.0/107.6 -0.4 T2 C/ ْ F 30.0/86.0 42.0/107.6 IBP1-S (ART) IBP1-M (ART) IBP1-D (ART) IBP2-S (CVP) IBP2-M (CVP) IBP2-D (CVP) IBP1/2-PR AWRR EtCO2 FiCO2 BM7VOM-2.12...

  • Page 204: Display

    BM7VET User’s Manual Display Patient Age Primary ECG Arrhythmia LETHAL Detect Pace Print Waveform1 LEAD II Print Waveform2 SpO2 Print Waveform3 Resp Alarm Print NIBP Interval NIBP Cuff Size MEDI. RR(RESP) Lead Alarm Volume QRS Volume Pulse Volume ECG Lead Fault...

  • Page 205: Puppy-Icu Mode

    BM7VET User’s Manual 14.3 PUPPY-ICU Mode Alarm level High Medium Message Asystole VTAC/VFIB VTAC SHORT RUN ACC VENT BIGEMINY COUPLET IRREGULAR PAUSE R ON T TRIGEMINY V BRADY NIBP - S NIBP - M NIBP - D -Rate RR-Apnea T1( ْ C) T2 ْ...

  • Page 206: Parameter Limits

    BM7VET User’s Manual Parameter Limits High NIBP-S NIBP-M NIBP-D -Rate RR(RESP) RR-Apnea T1 C/ ْ F 30.0/86.0 42.0/107.6 -0.4 T2 C/ ْ F 30.0/86.0 42.0/107.6 IBP1-S (ART) IBP1-M (ART) IBP1-D (ART) IBP2-S (CVP) IBP2-M (CVP) IBP2-D (CVP) IBP1/2-PR AWRR EtCO2 FiCO2 BM7VOM-2.12...

  • Page 207: Display

    BM7VET User’s Manual Display Patient Age Primary ECG Arrhythmia LETHAL Detect Pace Print Waveform1 LEAD II Print Waveform2 SpO2 Print Waveform3 Resp Alarm Print NIBP Interval NIBP Cuff Size SMALL RR(RESP) Lead Alarm Volume QRS Volume Pulse Volume ECG Lead Fault...

  • Page 208: Cat-Icu Mode

    BM7VET User’s Manual 14.4 CAT-ICU Mode Alarm level High Medium Message Asystole VTAC/VFIB VTAC SHORT RUN ACC VENT BIGEMINY COUPLET IRREGULAR PAUSE R ON T TRIGEMINY V BRADY NIBP - S NIBP - M NIBP - D -Rate RR-Apnea T1( ْ C) T2( ْ...

  • Page 209: Parameter Limits

    BM7VET User’s Manual Parameter Limits High NIBP-S NIBP-M NIBP-D -Rate RR(RESP) RR-Apnea T1 C/ ْ F 30.0/86.0 42.0/107.6 -0.4 T2 C / ْ F 30.0/86.0 42.0/107.6 IBP1-S (ART) IBP1-M (ART) IBP1-D (ART) IBP2-S (CVP) IBP2-M (CVP) IBP2-D (CVP) IBP1/2-PR AWRR...

  • Page 210: Display

    BM7VET User’s Manual Display Patient Age Primary ECG Arrhythmia LETHAL Detect Pace Print Waveform1 LEAD II Print Waveform2 SpO2 Print Waveform3 Resp Alarm Print NIBP Interval NIBP Cuff Size SMALL RR(RESP) Lead Alarm Volume QRS Volume Pulse Volume ECG Lead Fault...

  • Page 211: Trouble Shooting

    BM7VET User’s Manual 15. TROUBLE SHOOTING 15.1 Noise in ECG - Gel is dry - Electrodes does not stick well to skin The Animal’s skin Apply ECG gel or water to the area of is extremely dry contact then use the electrode...

  • Page 212: Spo2 Malfunction

    BM7VET User’s Manual 15.2 SpO malfunction Connectors of the equipments are in bad condition? The extension cables are disconnected Replace extension cables The Finger probe is in bad condition? Replace the finger probe Repair the ECG B/D 15.3 Temp malfunction...

  • Page 213: Nibp Malfunction

    BM7VET User’s Manual 15.4 NIBP malfunction Are leaks from the hose connector of cuff Replace the hose of cuff Repair the NIBP B/D 15.5 Abnormality in NIBP measurements The Animal moved Make sure the Animal stay still while measuring during diagnosis...

  • Page 214: Failure In Battery Recharge

    BM7VET User’s Manual 15.6 Failure in battery recharge ( the battery does not fully recharge in 6 hours or more) The output voltage of Replace the adapter the adapter is 18V (the battery will not be changed at the rate lower than 17V)

  • Page 215: Power Failure

    BM7VET User’s Manual 15.7 Power failure The adapter connector is in bad condition Replace the adapter The output voltage of the adapter is lower than 18V Replace the adapter Repair the power B/D “Admit” has been Execute the “admit:” function...

  • Page 216: Periodic Noises

    BM7VET User’s Manual 15.8 Periodic noises All alarm has been turned off Display lead fault Turn functions not in use off message appears (Mode-Display-Set para) The printer function abnormally Replace the printer Repair the accompanying Equipment BM7VOM-2.12 15. TROUBLE SHOOTING...

  • Page 217: Print Failure

    BM7VET User’s Manual 15.9 Print failure The paper tray cover is properly shut Shut the cover tight The printing face of paper has been reversed Reverse the paper face Repair the printer and printer B/D BM7VOM-2.12 15. TROUBLE SHOOTING...

  • Page 218: Specification

    BM7VET User’s Manual 16. SPECIFICATION Ease of use Customization Special Features Monitor Environmental Specifications Power adaptor Monitor Performance Specifications Graphical and Tabular Trends SpO2 Performance Specifications Respirations Performance Specifications NIBP Performance Specifications ECG Performance Specifications Temperature Unit Performance Specifications Accessories included OPTION BM7VOM-2.12...

  • Page 219: Ease Of Use

    BM7VET User’s Manual Ease of use · Battery operation · Attached printer · Table and graphic trend Additional Function · LAN Connection Monitor Environmental Specifications · Operating Temperature： 15°C to 40°C (59°F to 104°F) · Storage Temperature： - 10°C to 60°C (14°F to 140°F) ·...
  • Page 220 BM7VET User’s Manual Adult : 30 – 300 bpm Heart Rate Range Neonate/Pediatric : 30 – 350 bpm ±1bpm or ±1%, whichever is greater Heart Rate Accuracy Sweep speed 6.25, 12.5, 25, 50 mm/sec -Monitoring : 0.5 – 40 Hz Filter -Diagnosis : 0.05Hz - 150Hz...

  • Page 221: Accessories Included

    101-150mmHg ±10% of reading Respiration rate 0 to 150 breath per minute ±1breath per minute Respiration accuracy Accessories Included: 1. Main body of BM7VET Monitor 1 EA 2. 5-Lead Animal Cable (MECA5(AHA), MECE5(IEC)) 1 EA 3. NIBP extension hose (NBPCBL-400) 1 EA 4.

  • Page 222: Abbreviations And Symbols

    BM7VET User’s Manual Abbreviations and Symbols Abbreviations and symbols which you may encounter while reading this manual or using the monitor are listed below with their meanings. Abbreviations amps alternating current adult ARRYTHM arrhythmia ASYS asystole Auto, AUTO automatic Auxiliary...
  • Page 223 BM7VET User’s Manual liter, left left arm, left atrial pounds liquid crystal display light emitting diode left leg M mean, minute meter MIN, min minute MM, mm millimeters MM/S millimeters per second MMHG, mmHg millimeters of mercury millivolt NIBP noninvasive blood pressure...
  • Page 224 BM7VET User’s Manual Symbols & ° degree(s) > greater than < less than – minus number percent ± plus or minus BM7VOM-2.12 Abbreviations and Symbols...

  • Page 225: Product Warranty

    Phone : Sales Agency Manufacturer * Thank you for purchasing BM7VET * The product is manufactured and passed through strict quality control and through inspection. * Compensation standard concerning repair, replacement, refund of the product complies with “Consumer’s Protection Law” noticed by Korea Fair Trade Commission.
  • Page 226 BM7VET User’s Manual International Sales & service Bionet Co., Ltd. : 5F, Shinsegae I&C Digital Center 61 Digital-ro 31 gil, Guro-gu, SEOUL 08375, REPUBLIC OF KOREA Tel : +82-2-6300-6410 / Fax : +82-2-6499-7789 / e-mail: sales@ebionet.com Website: www.ebionet.com U.S.A sales & service representative Bionet America, Inc.

Table of Contents
