Larius Storm 5 Operating And Maintenance Instruction Manual

Electric piston pump
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ENGLISH

Advertisement

Table of Contents
loading

Related Manuals for Larius Storm 5

Summary of Contents for Larius Storm 5

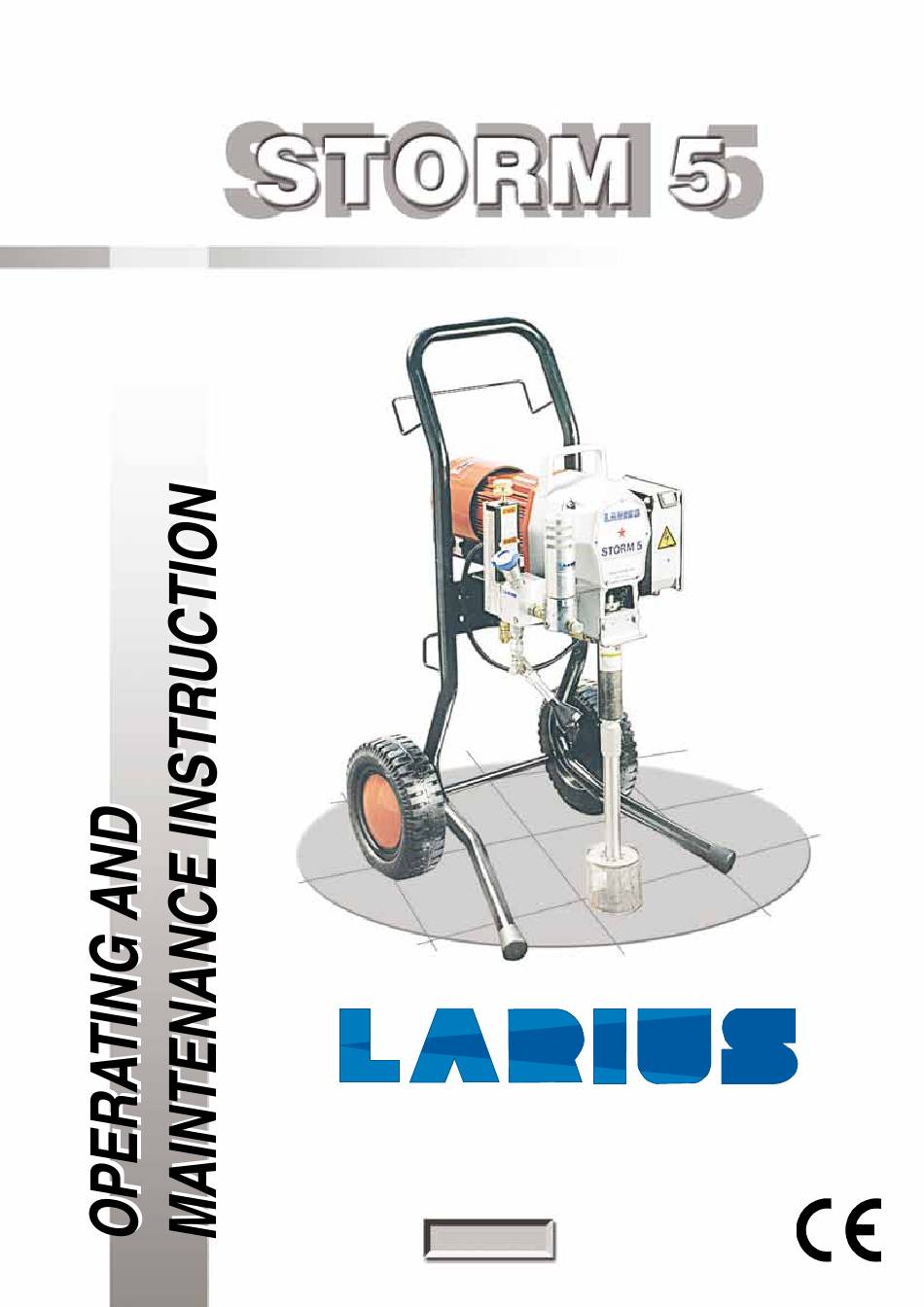

  • Page 1 ENGLISH...

  • Page 3: Table Of Contents

    WE ADVISE THE USE OF THIS EQUIPMENT ONLY BY PROFESSIONAL OPERATORS. ONLY USE THIS MACHINE FOR USAGE SPECIFICALLY MENTIONED IN THIS MANUAL. Thank you for choosing a LARIUS S.R.L. product. As well as the product purchased, you will receive a range of support services enabling you to achieve the results desired, quickly and professionally.

  • Page 4: Aworking Principle

    STORM 5 WORKING PRINCIPLE The STORM 5 unit is defined “electric piston pump”. sent to the gun through the flexible hose. An electric piston pump is used for high pressure painting without A mechanical device on the side of the reduction gear casing, air (from this process derives the term ”airless”).

  • Page 5: Cdescription Of The Equipment

    STORM 5 DESCRIPTION OF THE EQUIPMENT POS. POS. Description Description ON/OFF switch Recirculation tube Pressure control knob Drain valve Reduction box Airless manual gun Pumping group Trigger safety clamp High pressure flexible pipe of compensation Product flexible pipe connection Suction filter...

  • Page 6: Dtransport And Unpacking

    Unpack the machine and verify if there PERLY. has been any damage due to transportation. In case of damage, call immediately LARIUS and the • ALWAYS FOLLOW THE INSTRUCTIONS ABOUT SAFETY Shipping Agent. All the notices about possible damage AND THE REGULATIONS IN FORCE.

  • Page 7: Fsetting-Up

    STORM 5 Electrical safety precautions GUN BEFORE USING THE EQUIPMENT. • Check the switch is on the "OFF" position before connecting the cable to the mains. • ALWAYS USE THE FLEXIBLE HOSE SUPPLIED WITH STANDARD KIT. THE USE OF ANY ACCESSORIES OR •...
  • Page 8 STORM 5 It is ADVISED to mount a high pressure manometer at the CONNECTION OF THE TOOLING TO THE POWER SUPPLY pump outlet (see on page “Accessories”) to read the product • Check the switch (F3) is on the "OFF"(0) position before pressure.
  • Page 9 STORM 5 WASHING OF THE NEW EQUIPMENT • The equipment has already been adjusted at our factory with light mineral oil left inside the pumping group as protection. Therefore, wash with diluent before sucking the product. • Lift the suction pipe and dip it into the solvent tank.

  • Page 10: Gworking

    STORM 5 WORKING START OF THE PAINTING OPERATIONS • Make sure the product recycles from the return tube (G4). Use the tooling after performing all the SETTING UP ope- • • Close the drain valve (G5) (turn clockwise the knob to close rations above described.

  • Page 11: Hcleaning At The End Of The Work

    STORM 5 CLEANING AT THE END Follow the washing procedure before using again the equipment. OF THE WORK • Reduce pressure to the minimum (turn counterclockwise the pressure control knob (H1). ROUTINE MAINTENANCE CHECK ON THE PACKING NUT Daily check the packing nut (I1) is tight in order to avoid wastes but not excessively to prevent the piston from seizing and the gaskets from wearing.

  • Page 12: Lproblems And Solutions

    STORM 5 PROBLEMS AND SOLUTIONS Solution Problem Cause • Check the correct connection to the • The equipment does not start • Lack of voltage; power supply; • Check the extension cable; • Considerable drops in mains voltage; • Ensure the On/Off switch is on the •...

  • Page 13: Mcorrect Procedure Of Decompression

    STORM 5 CORRECT PROCEDURE OF DECOMPRESSION • Insert the gun clamp (M1). Move the switch (M2) to the OFF (0) position to stop the • equipment. • Disconnect the power supply cable (M3). • Release the gun clamp (M4), point the gun at the tank of the product and press the trigger to release pressure.

  • Page 14: Nreplacement Of The Pumping

    STORM 5 REPLACEMENT OF THE PUMPING GROUP’S GASKETS • Carry out this operation after cleaning the tooling. • Using a screwdriver, turn the motor (N4) till the piston rod is on its stroke lowest point (N5). Always disconnect the power supply and release pressure before going on with the operations (fol- low the “correct procedure of decompression).

  • Page 15: Warning Plate

    STORM 5 • Unscrew the rigid suction pipe. • Disassemble the piston rod and replace the gaskets group if worn. • Unscrew the upper packing nut. • If necessary, remove the upper gaskets for their replace- • Unscrew the suction valve and clean and/or replace its parts, ment.

  • Page 16: Cleaning And/Or Replacement Of

    STORM 5 CLEANING AND/OR REPLACEMENT OF THE PRESSURE TRANSMITTER CHECK ON THE PRESSURE TRANSMITTER • Disassemble the pumping group as shown on the previous chapter. Before evaluating if the cause of the malfunction is due to the pressure transmitter or to the electric control box, proceed as •...

  • Page 17: Recirculating-Safety Valve Group

    STORM 5 RECIRCULATING-SAFETY VALVE GROUP REF. 37440 WARNING: Always indicate code and quantity for each part required. Pos. Code Description 8402 O-ring 37447 Valve housing 301013 O-ring 37284 Antiextrusion ring 37446 Material rod 37281 Spring 37449 Bush 37444 Dowel 37448...

  • Page 18: Complete Pumping Group Storm 5

    STORM 5 COMPLETE PUMPING GROUP STORM 5 WARNING: Always indicate code and quantity for each part required Pos. Code Description Pos. Code Description 37075 Complete pumping group 37457 Complete lower seals 37113 Packing nut 37130 Washer 37144 Complete upper seals...
  • Page 19 STORM 5 System of assemblage Steel female ring cod. 37436 White cod. 37433 Red cod. 37434 cod. cod. White cod. 37433 37172 37144 Red cod. 37434 White cod. 37433 Upper seals Steel male ring cod. 37438 Steel male ring cod. 37439 White cod.

  • Page 20: Complete Pressure Control

    STORM 5 COMPLETE PRESSURE CONTROL DEVICE...
  • Page 21 STORM 5 Pos. Code Description Pos. Code Description 16308 Label 16333 Antiextrusion ring 16301 Knob 9287 O-ring 32017/1A Dowel 16334 96028 Screws 11955 Gasket 16037 Gasket 16335 Washer 37419 Cover 16336 Retaining ring 81017 Retaining ring 33008 High pressure manometer...

  • Page 22: Pipe

    STORM 5 DRIVE ASSEMBLY AND SUCTION PIPE...
  • Page 23 Gasket 34008 Screw 37118 Reduction gear casing 91062 Screw 37128 Crankshaft 37431 Cover STORM 5 Complete pump (see on pag.16) Eelctric motor (see on pag. 22) 37259 High pressure hose for connection 37133 37131 37135 Washer 37148 Complete connectiong rod...

  • Page 24: Electric Motor

    STORM 5 ELECTRIC MOTOR WARNING: Always indicate code and quantity for each part required. DISCONNECT THE POWER SUPPLY BEFORE CHECKING OR REPLACING THE BRUSHES • Periodically check on the wear of the pinion (at least every 1000 working hours). •...

  • Page 25: Complete Trolley

    STORM 5 COMPLETE TROLLEY Pos. Code Description 37470 Complete trolley 16272/SS4 Trolley frame 16271/SS4 Handle 37142 Plug 91047 Washer 37238 Wheel 37416 Bracket 84007 Split pin 901568 Screw 32024 Washer 52017 18230 Motor support plate 54003 Electric box plate ACCESSORIES ATTENZIONE: per ogni particolare richiesto indicare sempre il codice e la quantità.
  • Page 26 STORM 5 Code 11180: L91X 1/4" Code 11120: L91X M16x1,5 Code 18510: ANTIPULSATIONS HOSE Code 85014: FILTER 40 MESH - Code 85012: FILTER 20 MESH Code 37215: FILTER 40 MESH inox - Code 37216: FILTER 20 MESH inox Code 95218: FILTER 30 MESH...
  • Page 27 STORM 5 Nozzles code 07-20 19-60 29-80 07-40 21-20 31-40 09-20 21-40 31-60 09-40 21-60 31-80 11-20 23-20 33-40 FAST-CLEAN 11-40 23-40 33-60 13-20 23-60 33-80 13-40 25-20 39-40 13-60 25-40 39-60 25-60 39-80 15-20 15-40 27-20 43-40 15-60 27-40...
  • Page 28 Code 16988: Roller cover for rough surfaces Code 16997: Roller cover for smooth surfaces Code 16998: Roller cover for very smooth surfaces Code 16999: Roller cover for semi-rough surfaces Code 16780: Extension 120 - 195 cm VERSIONS STORM 5 Ref. 37400 Ref. 37520...
  • Page 29 Due to a constant product improvement programme, the factory reserves the right to modify technical details mentioned in this manual without prior notice.
  • Page 30 TORNADO Ref. 16730 EXCALIBUR Ref. 18601 MAnuFACTuRER: 23801 CALOLZIOCORTE - LECCO - ITALY - Via Stoppani, 21 Tel. (39) 0341/62.11.52 - Fax (39) 0341/62.12.43 E-mail: larius@larius.com - Internet http://www.larius.com DIRECT LINE CUSTOMERS TECHNICAL SERVICE Tel. (39) 0341/621256 Fax (39) 0341/621234...
