- Page 1 Larius 4 II 2 G c IIB T4 Transfer Ediz. 002 - 06/2019...
- Page 2 LARIUS 4 Due to a constant product improvement programme, the factory reserves the right to modify technical details mentioned in this manual without prior notice. This manual is to be considered as an English language translation of the original manual in Italian.
-
Page 3: Table Of Contents
We aDVIse tHe Use OF tHIs eQUIpMeNt ONLY BY prOFessIONaL OperatOrs. ONLY Use tHIs MaCHINe FOr UsaGe speCIFICaLLY MeNtIONeD IN tHIs MaNUaL. Thank you for choosing a LarIUs s.r.L. product. As well as the product purchased, you will receive a range of support services enabling you to achieve the results desired, quickly and professionally. - Page 4 LARIUS 4 Edit. 002 - 06/2019 www.larius.eu...
-
Page 5: Warnings
LARIUS 4 WarNINGs The table below provides the meaning of the symbols used in this manual in relation to using, earthing, operating, maintaining, and repairing of this equipment. Read this operator’s manual carefully before using the equipment. An improper use of this machine can cause injuries to people or things. -
Page 6: Working Principle
Data LarIUs 4 8 bar (115 psi) MAXIMUM PRESSURE OF THE PRODUCT 2-8 bar (30-115 psi) PUMP FEED AIR PRESSURE 1/4" GAS (F) *FEED AIR INLET 40 l/min MAXIMUM DELIVERY 1” GAS (M) MATERIAL INPUT 1” GAS (M) - Page 7 LARIUS 4 LARIUS 163÷170 pump N. Code Alluminium 8300 Stainless steel 8301 Edit. 002 - 06/2019 www.larius.eu...
-
Page 8: Cdescription Of The Equipment

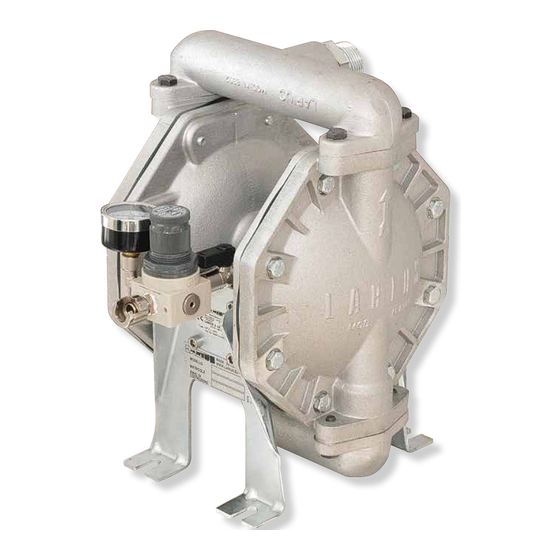

OF tHe eQUIpMeNt For communications with LARIUS, always refer to the machine model contained on the identification plate. The LarIUs 4 pump is a double diahragm pneuma- tic pump to be used for transfer of low and medium viscosity fluids. -
Page 9: Fsafety Rules
OTHER pEOpLE. THE CONTACT WITH THE CASTING CAN from the date of receipt of the plant through Registered CAUSE SERIOUS INJURIES. Letter to the Shipping Agent and to LarIUs. • IN CASE OF INJURIES CAUSED BY THE GUN CASTING, SEEK IMMEDIATE MEDICAL ADVICE SpECIFYING THE •... -
Page 10: Conditions Of Guarantee
INstaLLatION aIr INpUt WasHING OF tHe BraND NeW eQUIpMeNt The LarIUs 4 pump has been tested at our plant • with light mineral oil left inside of the pumping elementi ad protection. Before sucking the pro- duct, carry out a washing using a diluent. -
Page 11: Positioning Diagram
LARIUS 4 WOrKING pOsItIONING DIaGraM Fix the pump on a base by using the supporting brackets holes. Check all the connection fittings of the com- ponents (pump. flexble hose, etc.) before using the equipment. NeVer INstaLL the pump upside-down or inclined •... -
Page 12: I Problems And Solution
LARIUS 4 prOBLeMs aND sOLUtION problem solution Cause the pump does not start up • Check the air supply line. Increase • • Feed air not sufficient; the feed hose diameter; • Clean. Detach the product outfeed • Outlet product line clogged;... -
Page 13: Spare Parts
LARIUS 4 spare parts List of spare parts pag. 14 Edit. 002 - 06/2019 www.larius.eu... -
Page 14: Jexploded Pneumatic Motor Unit View
LARIUS 4 eXpLODeD pNeUMatIC MOtOr UNIt VIeW WarNING: always indicate code and quantity for each part required. 35 34 Edit. 002 - 06/2019 www.larius.eu... - Page 15 LARIUS 4 Code Code pos. Description Q.ty pos. Description Q.ty aLLUM. INOX 8350 Body pump 8350 Body pump Fluid passage cover Fluid passage cover 8351 8355 8385 Screw 8385 Screw 8352 Fluid passage sleeve 8356 Fluid passage sleeve Ball pTFE 1”...
-
Page 16: Markings
LARIUS 4 MarKING Low pressure double diaphragm transfer pumps series 2 and 4. II 2 G c IIB t4 tamb: -10°C ÷ + 50°C tmax. fluid: 60°C tech. File: LarIUs 2-4/ateX/05 II = Group II ( surface) Category 2 (zone 1) Explosion hazardous environment with presence of gas, fog and vapour Manufacturing safety “c”... -
Page 17: Example Of Installation
• The low pressure double diaphragm transfer pumps eXaMpLe OF INstaLLatION series 2 and 4 must be connected to the ground with a suitable connector anti-release and anti-rotation. • Gas and vapour of flammable liquids must belong to the group IIB and compatible with class temperature T4. - Page 18 - EN 13463-1 Marking Low pressure transfer double diaphragm pu- mps - series 2 and 4. II 2 G c IIB t4 tamb.: - 10°C ÷ 50°C tmax. fluido: 60°C tech. File: LarIUs 2-4/ateX /05 to which this declaration relates complies with the...
- Page 19 LARIUS 4 Edit. 002 - 06/2019 www.larius.eu...
- Page 20 Made in Italy 1969 LARIUS srl Via Antonio Stoppani 21 - 23801 Calolziocorte (LC) ITALY TEL. +39 0341 621152 - Fax +39 0341 621243 - larius@larius.com www.larius.eu...
