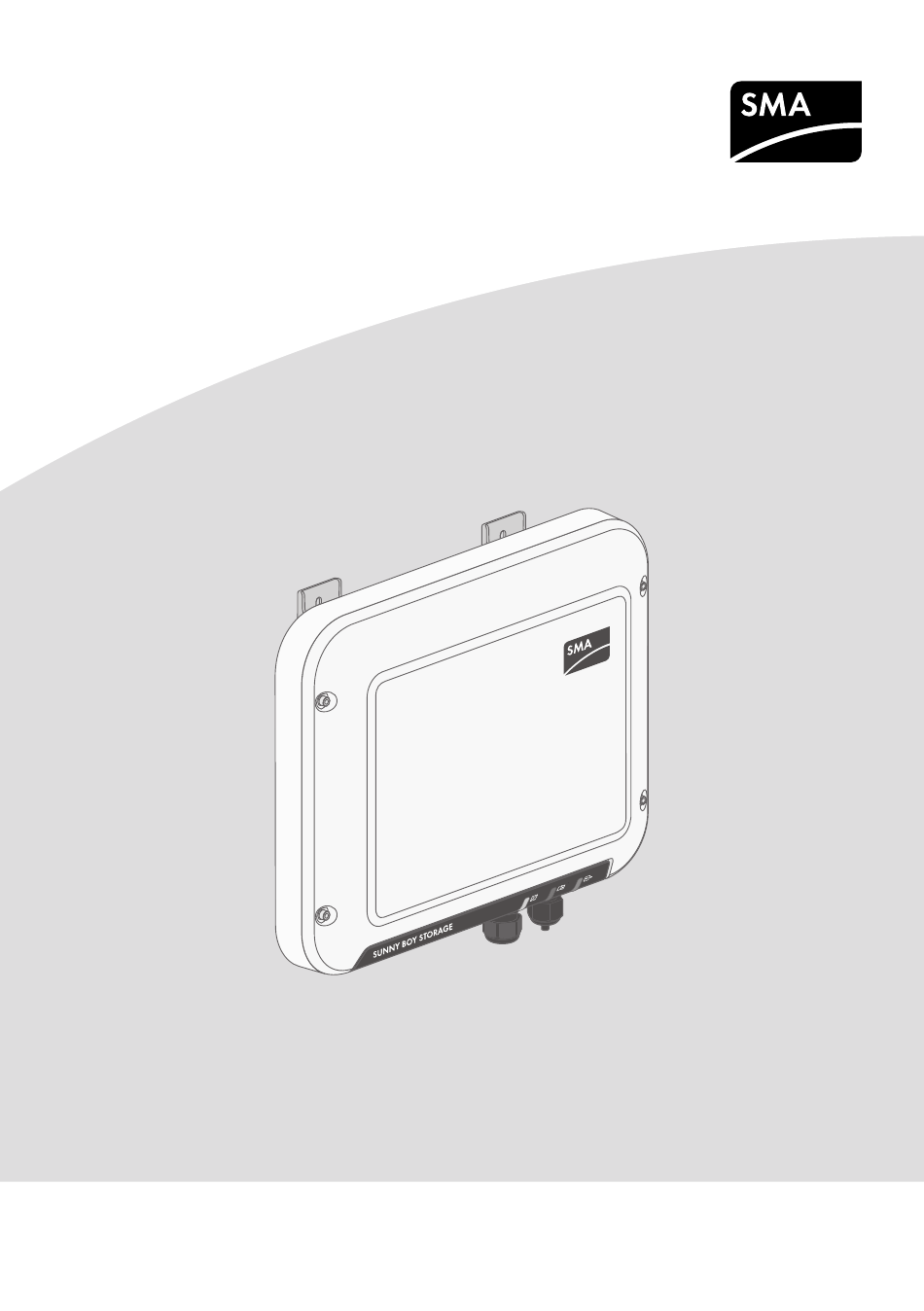

- Page 1 Technical information SUNNY BOY STORAGE 2.5 Approved batteries and battery communication connection ENGLISH SBS25-1VL-10-Batterys-TI-en-13 | Version 1.3...
- Page 2 Table of Contents SMA Solar Technology AG Table of Contents Approved Batteries ..............Battery Communication Connection ........SBS25-1VL-10-Batterys-TI-en-13 Technical information...
-
Page 3: Approved Batteries
SMA Solar Technology AG 1 Approved Batteries Approved Batteries This overview contains a list of lithium-ion batteries which are approved for the operation with the Sunny Boy Storage 2.5 (SBS2.5-1VL-10) of SMA Solar Technology AG (status: September / 2017): Manufacturer Type Product number... -
Page 4: Sunny Boy Storage
2 Battery Communication Connection SMA Solar Technology AG Battery Communication Connection In this section, you will find the cabling plan for the battery communication connection between the Sunny Boy Storage 2.5 and the approved batteries. Sunny Boy Storage 2.5 with LG Chem RESU10H SUNNY BOY STORAGE 2.5... - Page 5 SMA Solar Technology AG 2 Battery Communication Connection Clamping posi- Assignment Clamping posi- Assignment tion tion CAN L* CAN - L CAN H* CAN - H * Twisted pair conductors, at least CAT3 Technical information SBS25-1VL-10-Batterys-TI-en-13...
- Page 6 www.SMA-Solar.com...
