RE6000
Turbo Rower
USER MANUAL
Distributed By:
Pure-Tec Limited
www.puretecfitness.com
www.puretecfitness.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RE6000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Marcy RE6000

Summary of Contents for Marcy RE6000

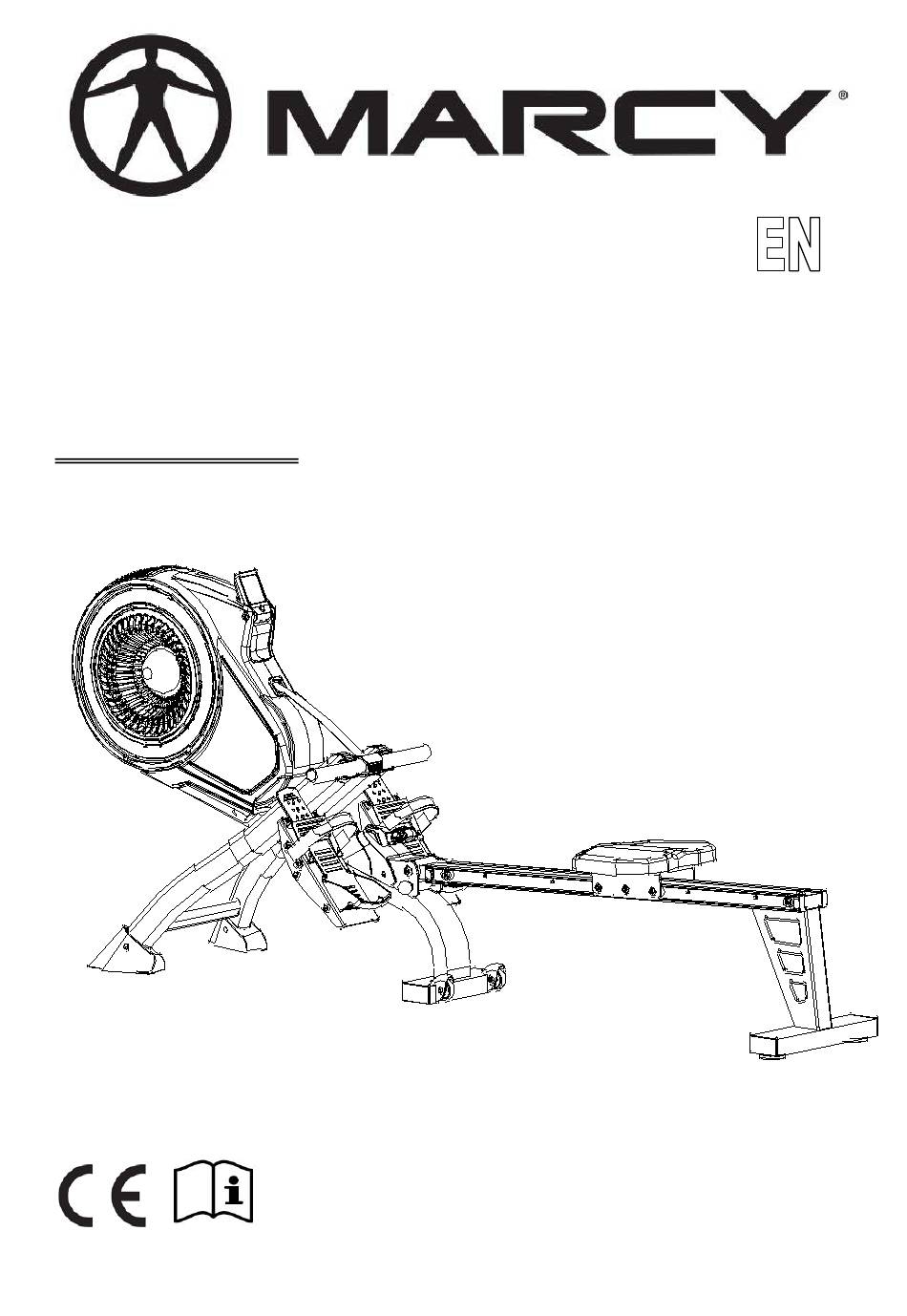

  • Page 1 RE6000 Turbo Rower USER MANUAL Distributed By: Pure-Tec Limited www.puretecfitness.com www.puretecfitness.com...

  • Page 2: Table Of Contents

    15-17 Warranty Information BEFORE YOU BEGIN Thank you for selecting the MARCY RE6000 Turbo Rower. For your safety and benefit, read this manual carefully before using the equipment. As the official distributor for Marcy, we are committed to providing complete customer satisfaction.
  • Page 3 IMPORTANT SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING THIS OWNER’S MANUAL CONTAINS ASSEMBLY, OPERATION, MAINTENANCE AND SAFETY INFORMATION. IN THE INTEREST OF SAFETY, PLEASE MAKE CERTAIN THAT YOU READ AND UNDERSTAND ALL THE INFORMATION BELOW. 1. This Rower is intended for class H (H=Domestic) use only. It is not designed for commercial use.

  • Page 4: Hardware Parts List

    HARDWARE PARTS LIST PART NO. DESCRIPTION Q’TY DRAWINGS Allen bolt Allen bolt Spring washer Flat washer End cap for side rail ( L ) End cap for side rail ( R ) Axle for slide rail Allen bolt Flat washer Allen key ( 6MM ) Open ended wrench ( 13MM ) Above described parts are all the parts you need to assemble this machine.

  • Page 5: Pre Assembly Check List

    PRE-ASSEMBLY CHECK LIST NO:1 NO:9 NO:54 NO:53 NO:45 NO:14L/R NO:11L/R NO:3 NO:55 NO:13 NO:35 NO:8L/R PART NO. DESCRIPTION Q’TY Main frame Roller Wheel 8L/R End cap for front stabilizer tube ( L/R ) 11L/R Fixed bracket for handlebar ( L/R ) Allen bolt for pedal 14L/R Pedal ( L/R )

  • Page 6: Assembly Instructions

    ASSEMBLY INSTRUCTION Step 1 Attach the two Roller Wheels (3) to the Main Frame (1). Secure each Roller Wheel (3) with one Allen Bolt (4) and one Nylon Nut (2). Step 2 Pull out the ball pin (35) from the main frame (1). Insert the slide rail (45) onto the U type connect tube of main frame (1), fasten with one axle for slide rail (41), two sets of allen bolts (34), spring washers (37) and flat washers (38).
  • Page 7 Step 3 Insert the seat (53) to the slide rail (45). Insert two cushion rubbers (36) to the slide rail (45), slightly fasten with two allen bolts (34). Fasten two foot mats (55) on the rear support tube (54). Attach the rear support tube (54) to the slide rail (45), fasten with one allen bolt (19), three flat washers (43) and two allen bolts (42).
  • Page 8 Step 5 Turn over the main frame and make the front support tube to the floor. Pull out the ball pin (35) from the main frame and unfold the main frame. Then insert the ball pin (35) to the main frame again for fixation. Note: Before insert ball pin (35).
  • Page 9 Step 7 Open the meter (24) upward to show your exercise status. The handlebar (29) also can be put on the fixed bracket. Step 8 You can pull out the ball pin (35) and lift up the slide rail to fold the machine if you don’t want to use it.

  • Page 10: Computer Instructions

    COMPUTER INSTRUCTIONS FUNCTIONAL BUTTON: MODE/RESET – Push down to select functions. – Push down to reset time、distance、calories and count for 2 seconds. – After install batteries, electronic watch default into clock setting mode, press the “MODE” key setting electronic clock, set the finished wait 5 seconds, the electronic watch into motion window mode automatically.

  • Page 11: Exercise Instructions

    EXERCISE INSTRUCTIONS Using your TURBO ROWER will provide you with several benefits, it will improve your physical fitness, tone muscle and in conjunction with a calorie controlled diet help you lose weight. 1. The Warm Up Phase This stage helps get the blood flowing around the body and the muscles working properly. It will also reduce the risk of cramp and muscle injury.
  • Page 12 3. The Cool Down Phase This stage is to let your Cardio-vascular System and muscles wind down. This is a repeat of the warm up exercise e.g. reduce your tempo, continue for approximately 5 minutes. The stretching exercises should now be repeated, again remembering not to force or jerk your muscles into the stretch.

  • Page 13: Exploded Diagram

    EXPLODED DIAGRAM www.puretecfitness.com...
  • Page 14 www.puretecfitness.com...
  • Page 15 PARTS LIST PART NO. DESCRIPTION Main Frame Nylon Nut M8 Roller Wheel Allen Bolt M8*35 End Cap Anti-slip Pad Self Tapping Screw ST4*15 Front Post Floor Cap( L ) Front Post Floor Cap( R ) Front Post Self Tapping Screw ST5*20 Rowing Bar Holder( L ) Rowing Bar Holder( R ) Pedal Support...
  • Page 16 PART NO. DESCRIPTION Spring Washer φ5 Washer φ8xφ25 Rowing Rail Busing Rail Track End Cap( L ) Rail Track End Cap( R ) Rowing Rail Axle Allen Bolt M8*40 Washer φ8xφ17 End Cap Rowing Rail Rail Track( L ) Rail Track( R ) Self Tapping Screw Seat Roller Wheel Axle Seat Roller Wheel...
  • Page 17 PART NO. DESCRIPTION Sensor bracket Adjusted screw sets Spring clutch Belt pulley Nylon nut M6 Belt pulley bracket Bearing Clamp spring φ10 Belt Self-tapping screw ST5*16 Powder metal Pulley Axle for pulley Air outlet Self-tapping screw ST5*25 Chain cover ( L ) Chain cover ( R ) Woven tape ADDITIONAL INFORMATION...

  • Page 18: Pure-Tec Limited

    LIMITED WARRANTY Pure-Tec warrants this product to be free from defects in workmanship and material, under normal use and service conditions. Please refer to www.puretecfitness.com for warranty terms. This warranty extends only to the original purchaser and is valid for home use only. Pure-Tec’s obligation under this Warranty is limited to replacing damaged or faulty parts at Pure-Tec’s option.

Table of Contents
