x:panda
TM
English manual
G
B
© 2012 R82 A/S. All rights reserved.
The R82 logo and the x:panda chairs are trademarks of R82 A/S.
2017-06 - rev. 17

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the x:panda Series and is the answer not in the manual?

Questions and answers

Related Manuals for R82 x:panda Series

Summary of Contents for R82 x:panda Series

  • Page 1 English manual © 2012 R82 A/S. All rights reserved. The R82 logo and the x:panda chairs are trademarks of R82 A/S. 2017-06 - rev. 17...

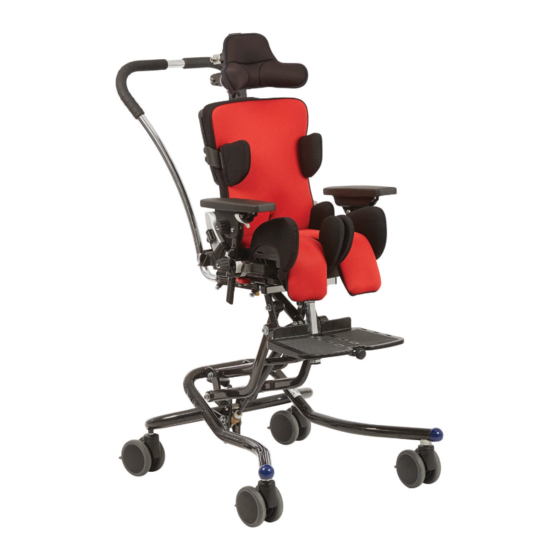

  • Page 2: X:panda - Intended Purpose

    The many adjustment possibilities and wide range of accessories makes it possible to adjust the seat to an individual child’s need for comfort and support. The seat fits on a variety of seat bases from R82, making it suitable for both indoor and outdoor use. Indoor use: High-low:x indoor frame •...

  • Page 3: Table Of Contents

    CONTENTS x:panda - Intended purpose............2 Instructions ................4-26 Declaration of Conformity ............27 R82 Warranty ................27 Safety ..................27 Disposal ..................27 Service information ..............28 Washing ..................28 Warewashing machine ..............28 Disinfection .................. 28 Accessories and spare parts ............28 Service interval ................
  • Page 4 READY FOR USE The x:panda is delivered so that it takes up minimum space during transport. Follow the instructions below to unpack the x:panda: • Remove the x:panda from the box • Adjust the back angle (A) • Adjust the back height (B) •...
  • Page 5 BACK RECLINE Release the handle (A) to recline the back. Warning 01 Squeezing hazard between the back and frame/Push brace when adjusting the back angle Firmly grab hold and support the back of the chair before releasing the handle to prevent sudden recline.
  • Page 6 HIP SUPPORTS - INDIVIDUAL ADJUSTMENT Angle, depth and width adjustment: Loosen the bolts (A) to adjust. Fasten at the desired position. Do not remove any of the bolts - only loosen to adjust. LEG SUPPORTS - INDIVIDUAL ADJUSTMENT Angle and depth adjustment: Loosen the bolt (A) to adjust.
  • Page 7 HEAD SUPPORTS Mounting and height adjustment: Loosen the handle (A). Angle adjustment: Loosen the screws (B) and (C) with a spanner. Sideways adjustment: Loosen the screw (D). Fasten all screws at the desired position. When adjusting the head support, please be carefull not to get fingers caught bet- ween the back of the chair and the head support fiitting.
  • Page 8 FIXED SIDE SUPPORTS Height adjustment: Remove the bolts (A). Place the supports in the desired position and remount the bolts. Width adjustment: Loosen the bolts (A). Fasten at the desired position. QUICK LOCKS FOR FIXED SIDE SUPPORTS Height adjustment: Remove the bolts (A). Place the side supports with quick locks in the desired position and remount the bolts.
  • Page 9 SWING-AWAY SIDE SUPPORTS Height adjustment: Remove the bolts (A). Place the supports and remount the bolts. Width adjustment: Loosen the bolts (A). Fasten at the desired position. Swing-away function: Press the red button (B) to release. The carer should check and oil (synthetic oil) the swing away parts occationally - at least every 3 months.
  • Page 10 ARM REST Height adjustment: Loosen the screw (A) and move it into desired height position. Fasten the screw. Loosen handle/screw (C) to move the arm rest into position. Fasten the handle/screw (hand- tight). Angling the arm rest cushion: Loosen the handle (B). Angling the arm rest bar (only size 1+2+3): Loosen the handle/screw (C).
  • Page 11 TRAY, SWING-AWAY ONLY FOR SIZE 1+2+3 A) Mounting and depth adjustment B) Width adjustment C) Angling the tray, by angling the arm rests. The tray can only be mounted on a x:panda equipped with arm rests. Entrapment hazard: Adjust tray and armrest before an user is seated in the product TRAY, TWO-ROD SYSTEM...
  • Page 12 ARM REST FOR TRAY ONLY FOR SIZE 1+2+3 A) Depth adjustment B) Angle adjustment The arm rests can only be mounted on a x:panda equipped with tray. TOYBAR FOR TRAY ONLY FOR SIZE 1+2+3 A) Angle ajdustment The toybar can only be mounted on a x:panda equipped with tray.
  • Page 13 VESTS & BELTS All vests and belts with 25 mm strap can be mounted on the seat. We recommend to use the fixlocks or belt guidances on the chair. Fixlocks: Use the fixlock (A) mounted on the chair to fa- sten and adjust all vests and belts.
  • Page 14 SEAT WEDGES Depth adjustment: Remove the seat cushion and release the wed- ges from the velcro in the seat. Flip up the velcro (A) and place the wedges at the desired depth position. Replace the seat cushion. SEAT STRAP Depending on the desired leg abduction the seat strap is mounted in one of the three holes in the seat.
  • Page 15 FOAM BACK PLATE The foam back plate can be adjusted to fit the gap beneath the back. * If necessary, cut the foam plate with a knife to make it fit the gap. * Place the foam plate on the back. COVER PLATE ONLY FOR SIZE 4 The cover plate fits the gap beneath the back.
  • Page 16 NON-DYNAMIC GAS SPRING ONLY FOR SIZE 1+2+3 The standard gas spring can be replaced with a non-dynamic gas spring. Loosen the handle (A) to angle the back. Please be aware not to get your fingers caught betweeen the gas spring and the seat when angling (B).
  • Page 17 X:PANDA MOUNTED ON HIGH-LOW:X To mount the seat: The interface and the footrest bar must be replaced on the old High-low frames. Place the seat adapter in the interface and push it all the way back, until it "clicks" into place. Lock the red handle (B) to secure the stability of the seat.
  • Page 18 MOUNTING THE SEAT ON THE HIGH-LOW:X SIZE 3 ONLY SIZE 3+4 Mount the x:panda seat directly on the High- low:x size 3 frame. * Lead the enclosed screws though the seat frame (A) from below. Make sure the seat is securely fastened before use.
  • Page 19 GROWTH FROM ONE SIZE TO ANOTHER - WIDTH ADJUSTMENT Follow this description to perform a smooth adjustment of the seat width. Also read the in- structions on the next page concerning depth adjustment. Dismount the hip supports (A) at both sides. Dismount the metalplate (B).
  • Page 20 GROWTH FROM ONE SIZE TO ANOTHER - DEPTH ADJUSTMENT Follow this description to perform a smoothly adjustment of the seat depth. Also read the in- struction on the previous page concerning width adjustment. Remove the two bolts (A) at both sides of the chair.
  • Page 21 REPLACEMENT OF BACK - ONE SIZE TO ANOTHER Loosen the two bolts (A) Remove the two cross-point screws (B) Remove the six bolts (C) Remove the cover plate Remove the back stop device (D) (only size 1+2+3). Pull up the back plate (E) and remove. Replace the desired back plate (E) and push it all the way down.
  • Page 22 THE X:PANDA SEAT ON HIGH-LOW:X FRAMES The x:panda seat adjusts in 3 different widths. Each seat in each width can be mounted on different sizes of High-low:x frames. Please see the chart below to find the right size frame for your seat.
  • Page 23 THE X:PANDA SEAT ON HIGH-LOW INDOOR FRAMES Mount a new interface on the High-low frames to mount the x:panda seats. Follow the instruction which follow the interface. High-low indoor High-low outdoor size 1 size 1 ● ● ● ● x:panda size 1S ●...
  • Page 24 THE X:PANDA SEAT ON COMBI FRAME:X The x:panda seat adjusts in 3 different widths. Each seat in each width can be mounted on different sizes of Combi frames. Please see the chart below to find the right size frame for your seat.
  • Page 25 THE X:PANDA SEAT ON OTHER FRAMES The x:panda seat adjusts in 3 different widths. Each seat in each width can be mounted on dif- ferent sizes of other frames. Please see the chart below to find the right size frame for your seat. Buggy frame Buggy frame Buggy frame...

  • Page 26: Instructions

    POSITION THE BACK BEFORE TRANSPORTATION The bush (A) on the gasspring (B) must be hand- tightened up against the gasspring house before transportation. The back MUST be placed in vertical position and the bush (A) MUST be hand- tightened before transportation. TRANSPORT FITTINGS ON A BUGGY FRAME Secure the x:panda seat on a buggy frame in...

  • Page 27: Declaration Of Conformity

    EN 12182 • If there is any doubt as to the continued safe use of your • R82 product or if any parts should fail, stop using the EN 12183 • product immediately and contact your local dealer as Enclosed tool:...

  • Page 28: Service Information

    Accessories and spare parts Maintenance of a medical device is wholly the responsibility The products from R82 can be supplied with a variety of of the owner of that device. Failure to maintain a device in accessories which comply with the needs of the individual accordance with the instructions may invalidate the device’s...

  • Page 29: Transport Fittings On The Combi Frame

    TRANSPORT FITTINGS ON THE COMBI FRAME Placing the Combi Frame in the vehicle: 1. By use of a 4-point strap system, the frame is secured in the vehicle. (Follow instructions from the manufacturer of the vehicle). A 4-point strap-system, approved accor- ding to ISO 10542-2 or SAEJ2249, must be used.

  • Page 30: Symbols

    Symbols For indoor and outdoor use Consult instructions The latest version of the instructions is always available on the R82 web- site and can be printed in larger sizes Warning This symbol appears in the User Guide along with a number referring to the instructions below.

  • Page 31: Measurements

    MEASUREMENTS x:panda x:panda x:panda x:panda Size 1 Size 2 Size 3 Size 4 mm (inch) mm (inch) mm (inch) mm (inch) Seat width (A) 160, 200, 240 200, 240, 280 260, 310, 360 340, 400, 460 (6¼,7¼,9¼") (7¼,9¼,11") (10¼,12,14") (13¼, 15½, 18") Width, thighs (A1) 70, 90, 110 100, 120, 140...

  • Page 32: Transfer

    LIFTING AND TRANSFER Always use the correct transfer and lifting techniques for this purpose PRODUCT XXXXXXX Max load: xxx kg DMR ver.: XXXX Max load: xxx kg XXXXXXX Max load: xxx kg Art. no.: XXXXXXX Product: XXXX - Size X (XX)XXXXXXXXXXXXXX(XX)XXXXXX(XX)XXXXXX IDENTIFICATION DMR ver.: XXXX...
