SLS Owner' s Manual

SPEAKER ADJUSTMENTS

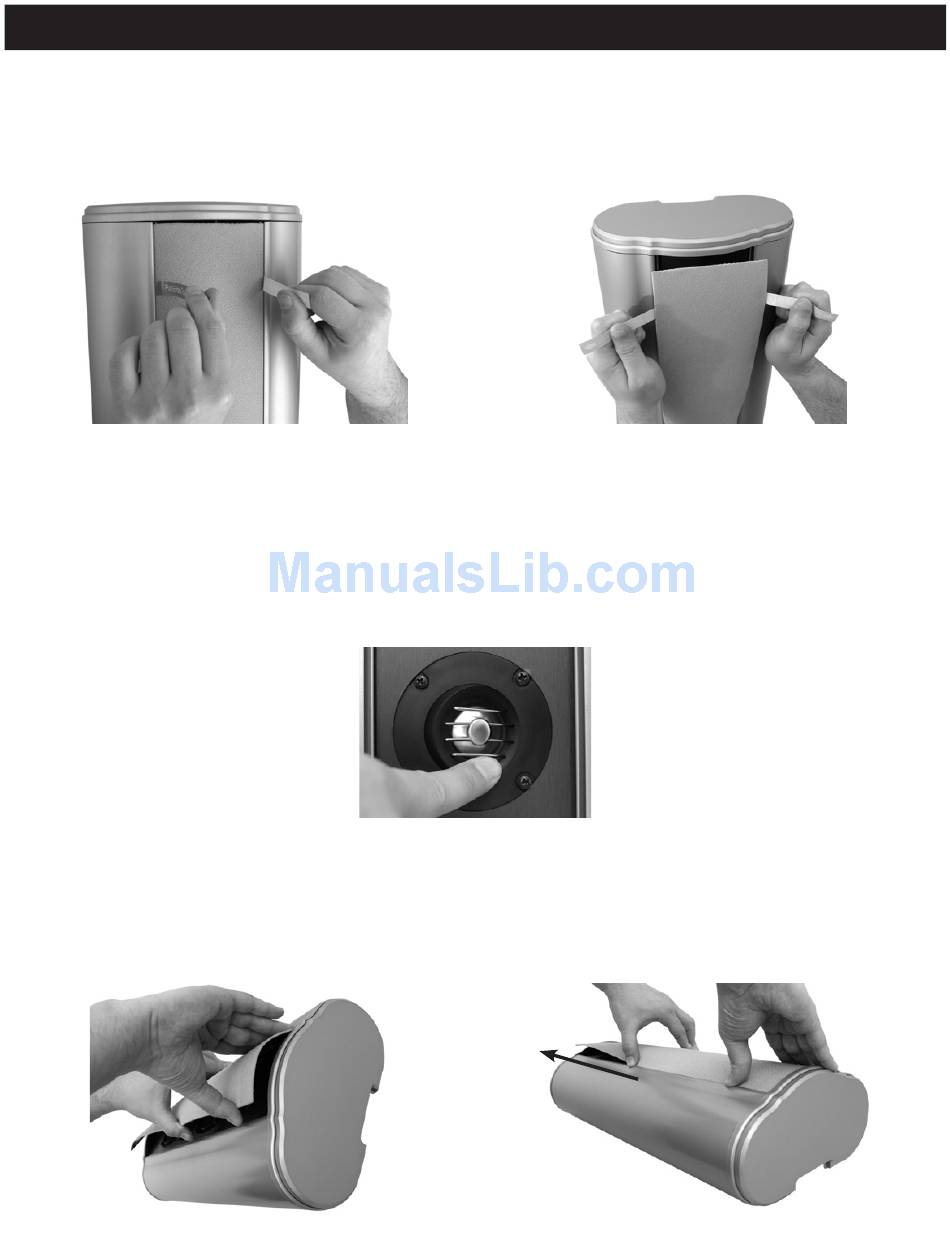

1) Initial Grille Removal
The SLS grille is pre-installed with pull tabs to remove it. Simply grab the tabs and firmly pull up as shown. (Figures 7 & 8)
2) Pivoting Tweeter Adjustment
SLS Series speakers come from the factory with the tweeter in the neutral position. This will result in the overall smoothest response.
However, depending on your particular primary area, room acoustics, ceiling height, or personal preference, you may find the sound
more pleasing by pointing the tweeters in a particular direction. If additional treble is desired in the primary listening area, point the
tweeter towards that area; and if less treble is required, point the tweeter away. When used in a home theater surround sound environ-
ment as side or rear channel speakers, the best result will be obtained by pointing the tweeters toward an adjacent wall. To adjust the
tweeter, push gently at the edge of the tweeter to point it in the desired direction. (Figure 9) CAUTION: Avoid touching tweeter dome
as damage WILL occur.
3) Grille Installation
To reinstall the grille, simply insert one end into the groove on the SLS and bend the grille inward. (Figure 10) Once a portion of the
grille is in place, simply slide your fingers along the open portion to finish installation. (Figure 11)
Figure 7
Figure 10
Figure 9
Figure 8
Figure 11
Page 3
