Summary of Contents for SpeakerCraft Terazza SC-TERR-4.1-BU

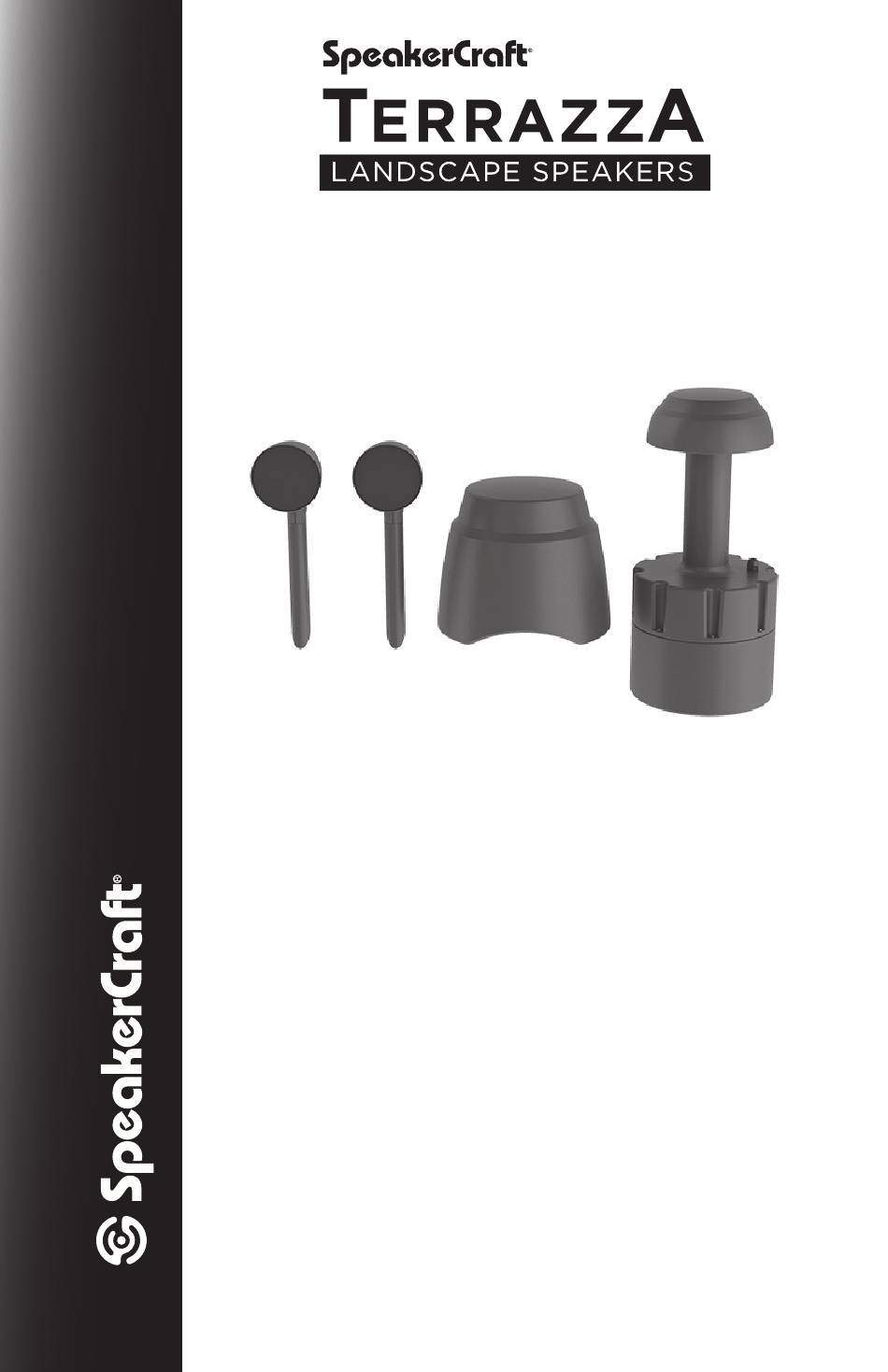

- Page 1 All Weather Outdoor Speakers INSTALLATION GUIDE...
-
Page 2: Required Tools

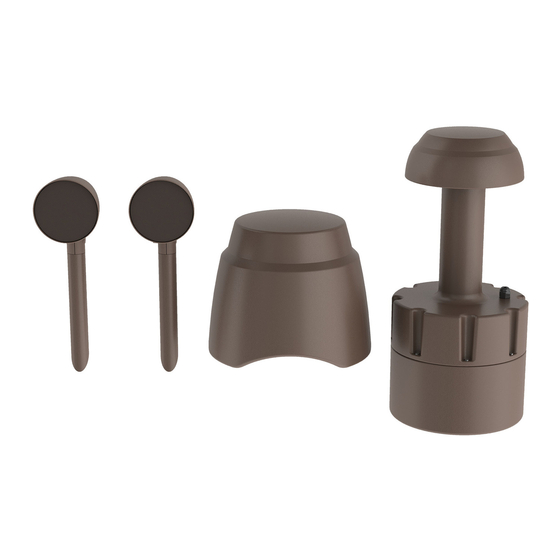

CONTENTS SC-TERR-4.1-BU: • (4) 4” Satellite Speakers with quick connect stakes • (1) 8” Burial Subwoofer • (1) Hammer Cap for stake installation • Silicone-Filled Wire Connectors for all connections SC-TERR-4.1-HS: • (4) 4” Satellite Speakers with quick connect stakes •... -
Page 3: Planning The Layout
PLANNING THE LAYOUT • Determine the location of your speakers. • Determine the positioning of subwoofer and satellite speakers. • Dig the trench according to speakers and accessories to be installed. • The trench should be 6”- 8” deep. 110° 110°... -
Page 4: Speaker Installation
SPEAKER INSTALLATION Satellite Speakers Once the final location for each of the speakers is selected, drive the stake into the ground using the included hammer cap. WARNING: Failure to use the hammer cap may result in damage to the stake. Hammer Cap 19-22”... - Page 5 “8” Hardscape Subwoofer Hardscape installation on a deck or other hard surface: Figure 4: Pre-Installed Keyway Attachment for Hard Surface 1. On the mounting surface, use the included mounting template to mark the holes for the mounting keyways. 2. Pre-drill holes into the mounting surface as indicated by the template.
- Page 6 8” Hardscape Subwoofer Hardscape installation using the supplied stakes: 1. When choosing a location, make sure that there is at least 1” clearance between the underside of the subwoofer’s grille and the ground below it. 2. Remove three attached keyways (as shown in Figure 7a) from the underside of the subwoofer. 3.
-
Page 7: Wiring & Speaker Installation
WIRING & SPEAKER INSTALLATION Stereo setup using 4-Conductor Burial Cable and Amplifier: Satellites Expanded System Ampli er Subwoofer Expanded Satellites System Figure 9: Wiring Setup... - Page 8 To Speaker From Ampli er To Remaining Speakers Figure 10: Wiring Bundle 1. Bundle all three of the LEFT channel positive (+) wires (amplifier wire, first speaker wire, and wire to the rest of the speakers) together and connect them with the first silicon filled wire nut. 2.
-
Page 9: Limited 5-Year Warranty
LIMITED 5-YEAR WARRANTY Nortek Security & Control, LLC (“Nortek Security & Control”) warrants to the original retail purchaser only that this product will be free of manufacturing defects in material and workmanship for the following periods and subject to the limitations and exclusions set forth below: 5-Year Warranty This warranty is not transferable to subsequent purchasers of the product. - Page 10 USA & Canada (800) 421-1587 & (800) 392-0123 (760) 438-7000 - Toll Free FAX (800) 468-1340 www.nortekcontrol.com Copyright © 2019 Nortek Security & Control LLC 10023049 A...
