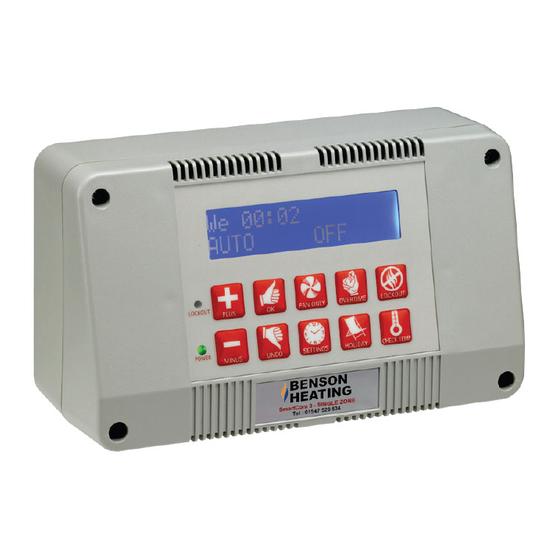

Ambirad SmartCom3 Technical Bulletin

Fm to cabinet heater, mounting kit installation

Hide thumbs Also See for SmartCom3:

Download this manual

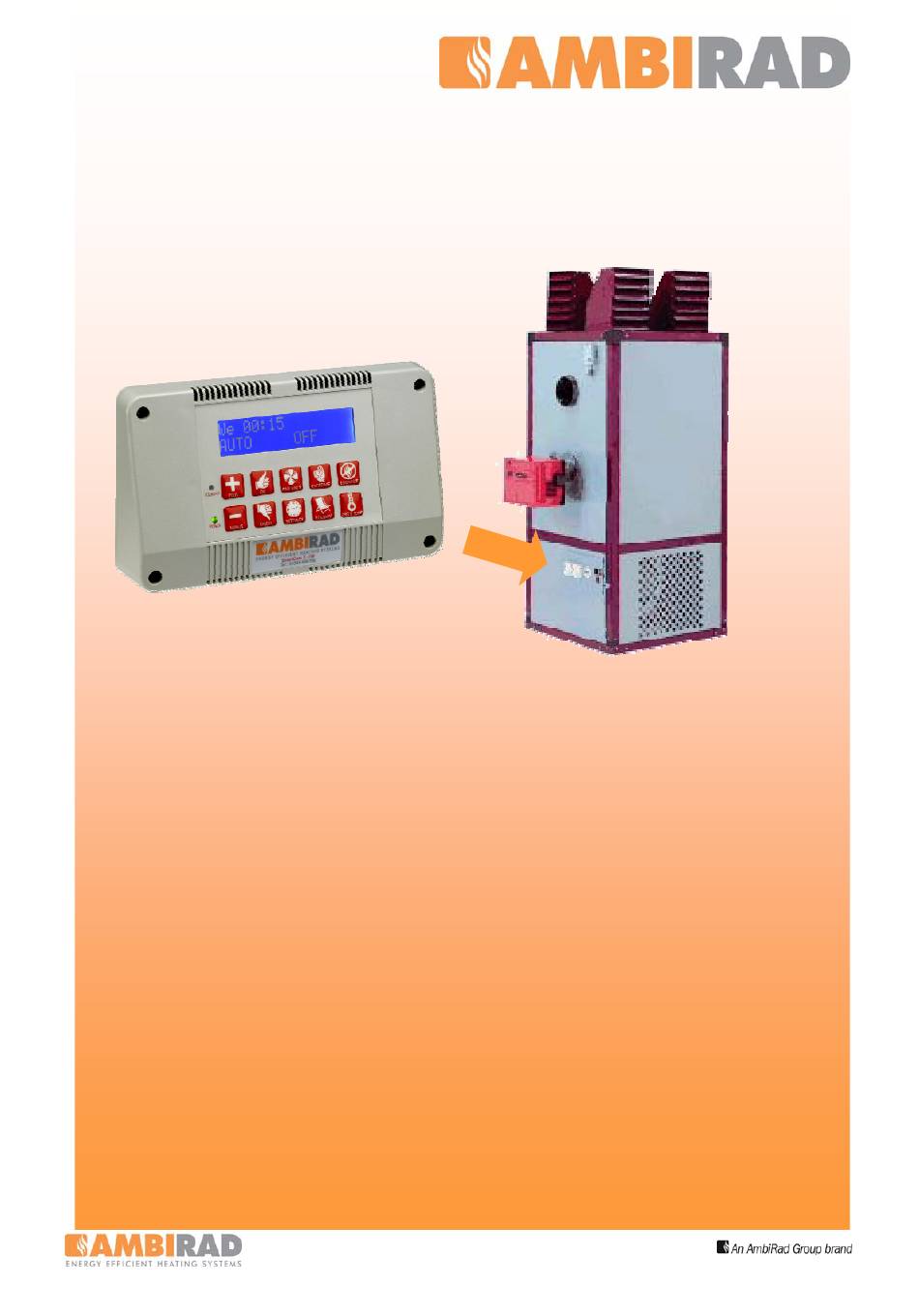

Technical Bulletin.

MART

INDEX

General Information -------------------------------------------------------- 1

Parts Requirement --------------------------------------------------------- 2

Instructions ------------------------------------------------------------------- 3

WARNINGS

AmbiRad equipment must be installed and maintained in accordance with the relevant

provisions of the Gas Safety (Installations and Use) Regulations 1998 for gas fired products,

and the current edition of the OFTEC regulations for oil fired products. Due account should

also be taken of any obligations arising from the Health and Safety at Works Act 1974 or

relevant codes of practice. In addition the installation must be carried out in accordance with

the current IEE wiring regulations (BS 7671), BS 6896:2005 (Industrial & Commercial) and

any other relevant British Standards and Codes of Practice by a qualified installer. All exter-

nal wiring MUST comply with the current IEE wiring regulations.

3 FM T

OUNTING

ABINET

NSTALLATION

EATER

Section

Need help?

Do you have a question about the SmartCom3 and is the answer not in the manual?

Page 1 Instructions ------------------------------------------------------------------- 3 WARNINGS AmbiRad equipment must be installed and maintained in accordance with the relevant provisions of the Gas Safety (Installations and Use) Regulations 1998 for gas fired products, and the current edition of the OFTEC regulations for oil fired products. Due account should also be taken of any obligations arising from the Health and Safety at Works Act 1974 or relevant codes of practice.
Page 2: General Information
2. Parts Requirement. SC3-FM-VKIT (VCH 100/150, VCHE 30/40) or The kit required depends on the size of the SC3-FM-HKIT (all other vertical models) cabinet heater. AmbiRad part Nos. are: The kits contain the parts in the following table: Part No. Quantity...
Page 3 3. Instructions. Before commencing any work ensure 4: Connect cables to the new SmartCom FM that both the gas/oil and electricity terminals as shown in the wiring diagram below. supplies are turned OFF. 5: Fit the new SmartCom FM to the heater using 1: Remove the four screws securing the original the four screws provided in the kit.
Page 4 Brierley Hill West Midlands DY5 1QA United Kingdom. Telephone 01384 489700 Facsimile 01384 489707 Email marketing@ambirad.co.uk Website www.ambirad.co.uk AmbiRad is a registered trademark of AmbiRad Limited. Because of continuous product Technical Support www.s-i-d.co.uk innovation, AmbiRad reserve the right to change product specification without due notice.
