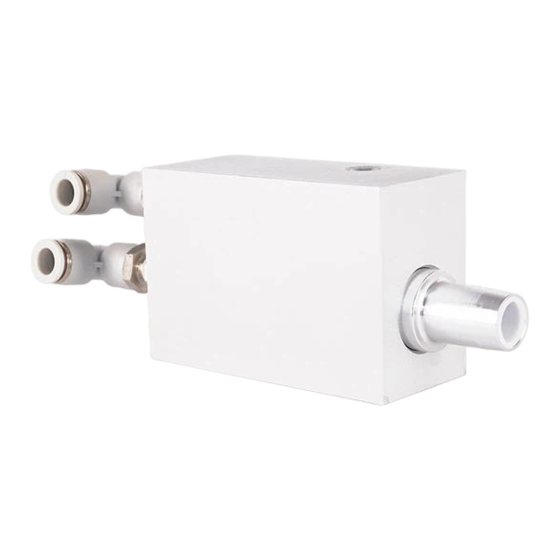

Porcelain powder pump
Hide thumbs Also See for 100 PLUS:

Advertisement

Quick Links

Download this manual See also: Manual
r
100 PLUS
Porcelain Powder Pump
1. Description
4
3
Fig. 1 100 PLUS Porcelain Powder Pump
1. Feed hopper
2. Fluidized powder
E 1999 Nordson Corporation
All rights reserved
See Figure 1. The Nordson100 PLUS porcelain powder pump is a highly
efficient venturi-type pump. The pump is designed to lift fluidized
powder (2) out of a feed hopper (1), atomize the powder stream and
deliver it to a powder spray gun.
Disassembly of the pump is simple. The venturi nozzles, throat, and
holder are held into the body, and the body onto the adapter, with
interference fits provided by silicone O-rings.
2
3. Flow rate air
107 946B
Issued 4/99
Instruction Sheet
P/N 107 946B
1
4. Atomizing air
3210001A
Manual 32-10

Advertisement

loading

Related Manuals for Nordson 100 PLUS

Summary of Contents for Nordson 100 PLUS

  • Page 1 Disassembly of the pump is simple. The venturi nozzles, throat, and holder are held into the body, and the body onto the adapter, with interference fits provided by silicone O-rings. 3210001A Fig. 1 100 PLUS Porcelain Powder Pump 1. Feed hopper 3. Flow rate air 4. Atomizing air 2.

  • Page 2: Installation

    See Figure 2. Use the following steps to install the pump. 2. Installation 1. If the pump mounts on a Nordson Model HTM hopper, locate the 28-mm (1.10-in.) hole to mount the pump. If using another hopper type, make a hole in the top of the hopper for the pick-up tube (8) using a 19-mm ( -in.) conduit punch.

  • Page 3: Operation

    100 PLUS Porcelain Powder Pump 2. Insert the pump adapter (5) into the hole in the hopper (6). 3. Tighten the conduit nut (9) on the pump adapter. 4. Screw the pick-up tube (8) into the pump adapter. The end of the pick-up tube usually extends 25–50-mm (1–2-in.) above the fluidizing...

  • Page 4: Maintenance (Contd.)

    100 PLUS Porcelain Powder Pump Blow parts clean with low-pressure compressed air and wipe with a 4. Maintenance (contd.) clean, lint free cloth. The cloth may be moistened with a non-toxic solvent if necessary, but do not immerse the O-rings in the solvent.
  • Page 5 100 PLUS Porcelain Powder Pump 3210003A Fig. 3 100 PLUS Porcelain Powder Pump 1999 Nordson Corporation 107 946B Manual 32-10 All rights reserved Issued 4/99...
  • Page 6 100 PLUS Porcelain Powder Pump Use the following lists to order an adapter and pick-up tube for the 6. Kits 100 PLUS porcelain powder pump Fixed Adapters See Figure 4. Item Part Description Quantity Note — 180 777 Mount, pump, w/pick-up tube, fixed, 18 in.
  • Page 7 100 PLUS Porcelain Powder Pump 3210004A Fig. 4 Fixed Adapter with Pick-up Tube 1999 Nordson Corporation 107 946B Manual 32-10 All rights reserved Issued 4/99...
  • Page 8 100 PLUS Porcelain Powder Pump See Figure 5. Thru-Lid Adapters Item Part Description Quantity Note — 309 476 Mount, pump, w/tube, fixed, 18 in., S Adapter, pump, thru-lid 309 471 S O-ring, silicone, conductive, 0.875 x 1.062 in. 941 185...
  • Page 9 Porcelain Powder Pump 3210005A Fig. 5 Thru-Lid Adapters with Pick-Up Tube Original copyright date 1989. 100 PLUS, Nordson and the Nordson logo are registered trademarks of Nordson Corporation. E 1999 Nordson Corporation 107 946B Manual 32-10 All rights reserved Issued 4/99...
  • Page 10 100 PLUS Porcelain Powder Pump Manual 32-10 107 946B 1999 Nordson Corporation All rights reserved Issued 4/99...
