2.1

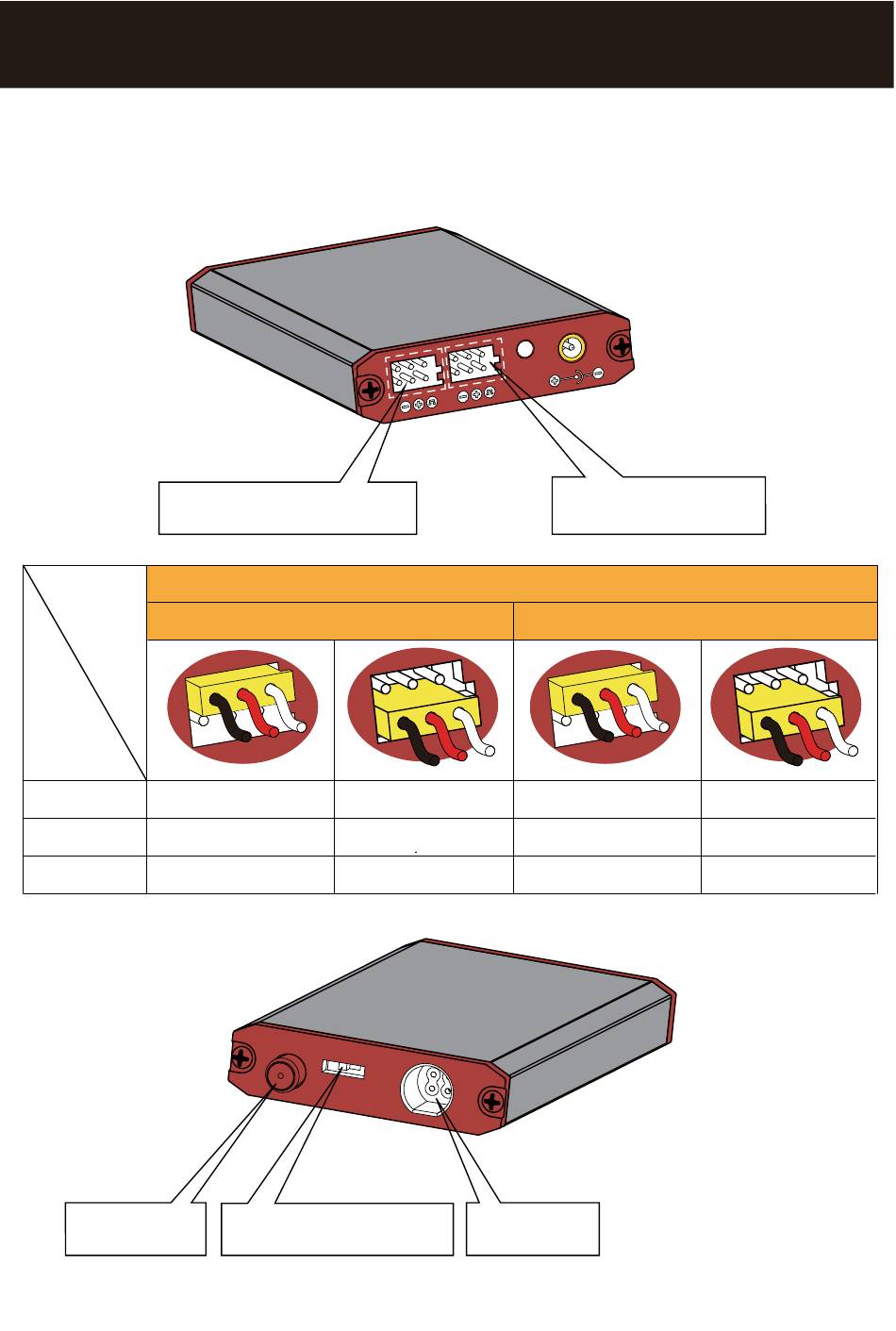

Connections of CCU
The following figures instruct how to connect the CCU box of X-Pilot with your bait boat.
The system could control most 2 engineers or 1 engine (with rudder) boat with proper settings.
Port A is connected to Speed
Contorller(ESC) or Servo
Xboat mode
ESC of Right Motor
2 Engines
ESC of Right Motor
1 Engine
Connector to
Antenna
Transmitter connection & function
Port A
ESC of Left Motor
ESC of Left Motor
ESC
Servo
Switch (Mode set between
X-Pilot and TF640 Gen2 )
Port B is connected to
Reciver of the remote
Port B
channel-3
channel of right Motor channel of left Motor
channel of ESC
Socket to
GPS receiver
channel-1
channel of servo
Advertisement
Need help?
Do you have a question about the X-Pilot and is the answer not in the manual?
Questions and answers
How do i calibrate Tolson x pilot
To calibrate the Toslon X-Pilot, follow these steps:
1. Perform Compass Calibration:
- Calibration is required when installing the X-Pilot on a new boat or moving to a new environment.
- Do not calibrate the compass inside a house or car.
2. Compass Test:
- Use this function to check if the compass is working correctly.
3. Adjust Sensitivity:
- If the boat is light and flexible, set a lower sensitivity.
- If the boat is heavier, set a higher sensitivity.
These steps ensure accurate navigation and stability of the X-Pilot system.
This answer is automatically generated
What happens when u go to calibrate compass through settings as i just get a picture of a boat with a left and right arrow and then it just goes off no status bar showing calibration or anything to say its completed and compass is still of a bit Im pulling my hair out with it even moved compass outside of boat (orange compass)
If the Toslon X-Pilot compass calibration process shows a boat image with arrows but does not complete the calibration, perform the [Wiring Test] to check if the motor or rudder is controlled properly. If the motor or rudder does not move correctly, go to the [Advanced Set.] / [CH Reverse] menu and reverse the relevant channel.
