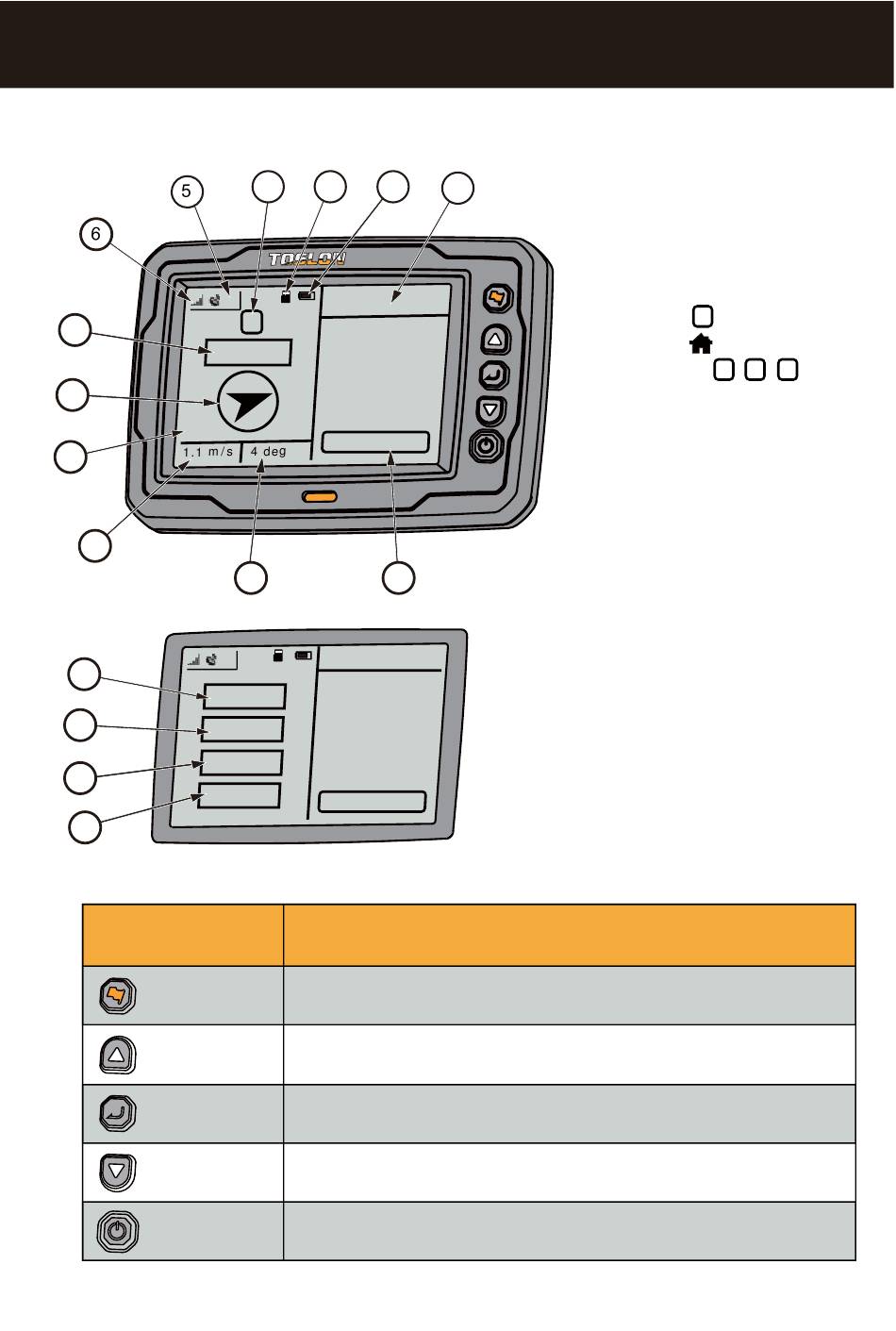

What's on the display & Keypad instruction
7
8
12.1V
9
10
13
275.2
14
1.2
18
15
11.6
16
Key
[Autopilot]
[Up]
[Menu / Enter]
[Down]
[Power / Exit]
4
3
X-Pilot
X-Pilot
10
Waypoints
2
H
0427-161201
86.5m
2
0615-161004
3
0930-160842
4
XXXX - XXXX
5
XXXX - XXXX
Home
11
Waypoints
10
H
0427-161201
m
2
0615-161004
m/s
3
0618-150904
4
0618-152206
deg
5
0930-160842
v
Home
1) Start / Stop autopilot mode
2) Switch between pages in the waypoints list
1) Shortcut to enter waypoints list
2) Move up menu or increase value of an option
1) Confirm a setting / selection
2) Enter the menu settings
1) Shortcut to mark current pisition as Home point
2) Move down menu or decrease value of an option
1) Power on / off the unit
2) Exit the selection or menu
2
1
12
Function
1) Waypoint list
2) Strength of display battery
3) SD card is ready
4) Instruction icon of autopilot
N
condition (
means North
direction;
means backing to
1 2
HOME point;
,
,
the Quick Reach Target which
the boat is running toward)
5) Number of GPS Satellites
6) Strength of radio signal
7) Distance to target (or HOME
Point)
8) Boat heading
9) Voltage of X-Pilot CCU
10) Speed of the boat
11) Angle between boad heading
direction and the north
12) Home position
13) The distance to Target (or
HOME Point)
14) Speed of the boat
15) Angle between boad heading
direction and the north
16) Voltage of X-Pilot CCU
3
means
Advertisement
Need help?
Do you have a question about the X-Pilot and is the answer not in the manual?
Questions and answers
How do i calibrate Tolson x pilot
To calibrate the Toslon X-Pilot, follow these steps:
1. Perform Compass Calibration:
- Calibration is required when installing the X-Pilot on a new boat or moving to a new environment.
- Do not calibrate the compass inside a house or car.
2. Compass Test:
- Use this function to check if the compass is working correctly.
3. Adjust Sensitivity:
- If the boat is light and flexible, set a lower sensitivity.
- If the boat is heavier, set a higher sensitivity.
These steps ensure accurate navigation and stability of the X-Pilot system.
This answer is automatically generated
What happens when u go to calibrate compass through settings as i just get a picture of a boat with a left and right arrow and then it just goes off no status bar showing calibration or anything to say its completed and compass is still of a bit Im pulling my hair out with it even moved compass outside of boat (orange compass)
If the Toslon X-Pilot compass calibration process shows a boat image with arrows but does not complete the calibration, perform the [Wiring Test] to check if the motor or rudder is controlled properly. If the motor or rudder does not move correctly, go to the [Advanced Set.] / [CH Reverse] menu and reverse the relevant channel.
This answer is automatically generated
