Summary of Contents for Toslon X-Pilot

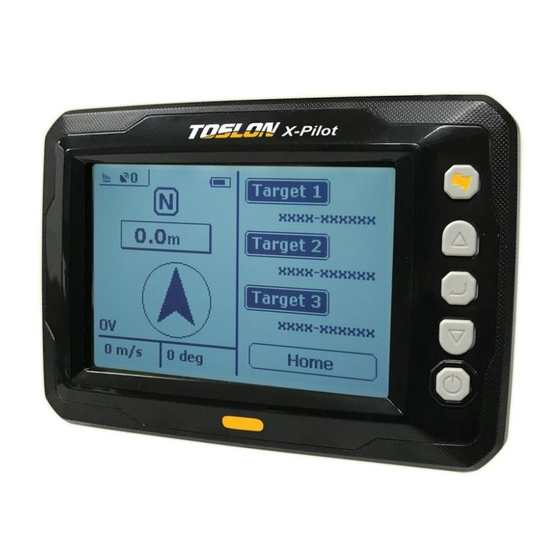

- Page 1 X-Pilot X-Pilot autopilot for bait boats Quick Start Guide V1.1 www.toslon.com...
- Page 2 5) Number of GPS Satellites 6) Strength of radio signal 7) Distance to target (or HOME Point) 8) Boat heading 9) Voltage of X-Pilot CCU 10) Speed of the boat 11) Angle between boad heading direction and the north Waypoints...
- Page 3 Connections of CCU The following figures instruct how to connect the CCU box of X-Pilot with your bait boat. The system could control most 2 engineers or 1 engine (with rudder) boat with proper settings. Port B is connected to...
- Page 4 Start Autopilot & Back to Home NOTE: after connecting the X-Pilot to the boat, please refer the [Wiring Test] in charpter 3.1 and confirm the wiring before start autopilot model. 1) set a HOME point, which is generally the point where you start the autopilot...
-
Page 5: Save A Waypoint
Save a waypoint How to save a waypoint? Waypoint 1/100 X-Pilot could save up to 500 waypionts in the memory. 0427-161201 0615-161004 0930-160842 1) Push the [Up] key to enter into the waypoint XXXX-XXXXXX interface. XXXX-XXXXXX 2) Move the [Up] or [Down] key to select an Lat.: xxx xxxx... - Page 6 Turn Right reverse the relative channel. RF Channel When more than one user operate the X-Pilot at the same time, it is necessary to choose a different channel for each user to avoid the possible radio interferance. Steering sens. Used to set the sensitivity of boat to keep it steering in a straight way when using with the device.
-
Page 7: Advanced Set
Advanced Set. Boat Option X-Pilot can work with most kinds of bait boats( with 2 engines or 1engine & rudder) . So, before you start the operation, please select the corresponding boat type. X-Boat: specially for Toslon X-Boat. 1 Engine: for the boat designed with 1 engine (and rudder). - Page 8 Select boat type to match X-Pilot setting CH Reverse To correct the running direction of motor (or rudder) Advanced Set. Channel Limit Limite the max speed of boat (with X-Pilot built in) Dev. Mode Developing Mode for engineer test System Info. Show system information of device...
-
Page 9: Specifications And Features
Easy program upgrading with SD card Quickly fixed to remote with special metal bracket (optional) For the details of product, please visit TOSLON website and download the manual : http://www.toslon.com Features and specifications listed are the most recent available at the time of printing and are subject to change without notice. -
Page 10: Battery Installation And Charging
Battery installation & Charging Battery Installation Battery Charging... - Page 11 YACHTING ELECTRONIC CO., LTD Building 29, No. 2 Qiancheng Road, Liuhe District, Nanjing City, China 211500 Email: info@toslon.com www.toslon.com Facebook: Toslon Marine...
Need help?
Do you have a question about the X-Pilot and is the answer not in the manual?
Questions and answers
How do i calibrate Tolson x pilot
To calibrate the Toslon X-Pilot, follow these steps:
1. Perform Compass Calibration:
- Calibration is required when installing the X-Pilot on a new boat or moving to a new environment.
- Do not calibrate the compass inside a house or car.
2. Compass Test:
- Use this function to check if the compass is working correctly.
3. Adjust Sensitivity:
- If the boat is light and flexible, set a lower sensitivity.
- If the boat is heavier, set a higher sensitivity.
These steps ensure accurate navigation and stability of the X-Pilot system.
This answer is automatically generated
What happens when u go to calibrate compass through settings as i just get a picture of a boat with a left and right arrow and then it just goes off no status bar showing calibration or anything to say its completed and compass is still of a bit Im pulling my hair out with it even moved compass outside of boat (orange compass)
If the Toslon X-Pilot compass calibration process shows a boat image with arrows but does not complete the calibration, perform the [Wiring Test] to check if the motor or rudder is controlled properly. If the motor or rudder does not move correctly, go to the [Advanced Set.] / [CH Reverse] menu and reverse the relevant channel.
This answer is automatically generated
