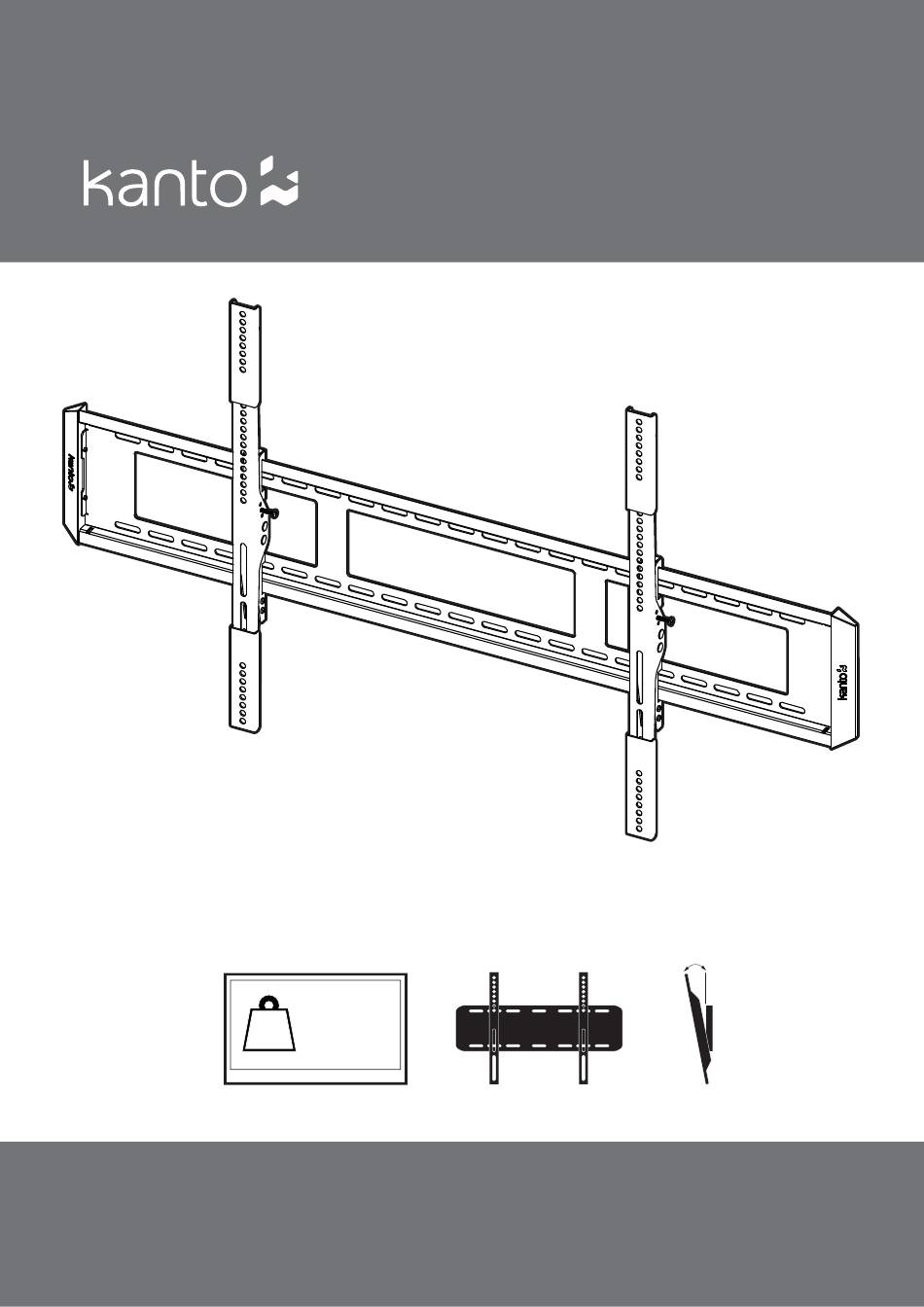

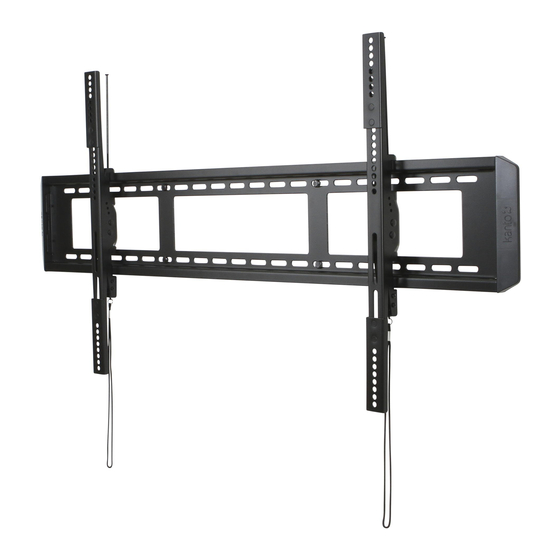

- Page 1 English User Manual T6090 TV Mount TILTING FLAT PANEL TV MOUNT +10°/-5° 100 x 100 1100 x 600 200 lb (91 kg) VESA Supporting your digital lifestyle ™...
- Page 2 Setup - Step 1 ......4 Other Kanto Products ..... . 8 Setup - Step 2 .
-
Page 3: Supplied Parts And Hardware
Supplied Parts and Hardware A: M5 x 15mm B: M5 x 25mm C: M6 x 15mm D: M6 x 25mm E: M8 x 20mm Bolt Bolt Bolt Bolt Bolt F: M8 x 35mm G: M8 x 50mm H: Washer I: Lag Bolt Washer J: 5mm Bolt Bolt... - Page 4 848-2643 or email at support@kantoliving.com The T6090 uses 400mm brackets for most TVs, but is shipped with extensions that you should connect if your TV has vertical VESA spacing up to 600mm, or if you require vertical shift. All extension parts are supplied in a separate package with washers and nuts attached.
- Page 5 Step 2: Mount Wall Plate Attach the two plastic End Caps (O) to the Wall Plate. Wood Stud Wall Brick or Concrete Wall The Wall Plate can be mounted to three wood studs with Using the Wall Plate as a template, mark six holes (four 16”...
- Page 6 CAUTION Read this section carefully prior to install. Step 3: Attach TV to Wall Plate With the Quick-Lock brackets fi rmly secured to the TV, use two people to lift the TV into position and hook the Quick- Lock brackets onto the Wall Plate, as shown in Diagram D. Swing the bottom of the television towards the Wall Plate, and the Quick-Lock bracket will lock into place, as shown in Diagram E.
- Page 7 TV to your desired viewing angle, between +10° and −5°, and your installation is complete. As an added feature, the T6090 can be locked into position at three tilt positions, as shown in Diagram F. Use the M5 x 10mm bolts (N) supplied to lock the tilt arm in place at either -5°, 0°...
- Page 8 5 years parts and labour If equipment fails because of such defects and Kanto or an authorized dealer is notifi ed within 5 years from the date of shipment with proof of original invoice, Kanto will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi...
