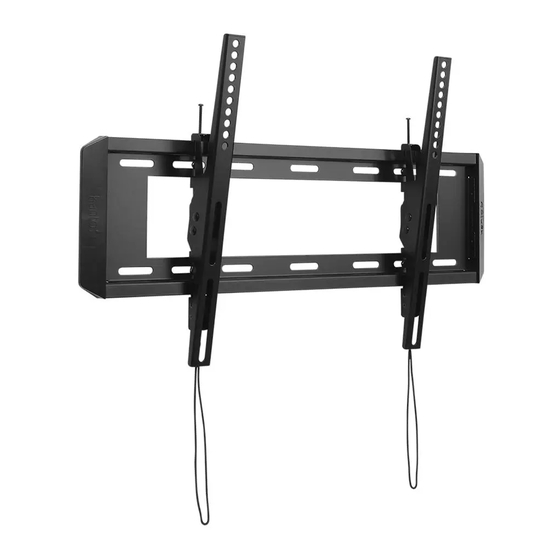

- Page 1 English User Manual T3760 TV Mount TILTING FLAT PANEL TV MOUNT +10°/-5° 100 x 50 600 x 400 150 lb (68 kg) VESA Supporting your digital lifestyle ™...
- Page 2 Setup - Step 1 ......4 Other Kanto Products ..... . 8 Setup - Step 2 .
-
Page 3: Supplied Parts And Hardware
Supplied Parts and Hardware Wall Plate A: M5 x 15mm B: M5 x 25mm C: M6 x 15mm D: M6 x 25mm Bolt Bolt Bolt Bolt E: M8 x 20mm F: M8 x 35mm G: M8 x 50mm H: Washer Bolt Bolt Bolt... - Page 4 The washer will work for both bolt sizes. The washer is not required for M8 size bolts (E, F & G). If your TV has Kanto provides 3 bolt diameters (Metric sizes M5, M6 a curved back or the mounting holes are recessed, you and M8) in various lengths.
- Page 5 Step 2: Mount Wall Plate Attach the two plastic end caps (O) to the Wall Plate. Wood Stud Wall Brick or Concrete Wall The Wall Plate must be mounted to two wood studs. Use Using the Wall Plate as a template, mark four holes a stud sensor to locate the two studs, clearly marking toward the outer edge of the Wall Plate at your desired the outer edges of the studs (see Diagram B).
- Page 6 CAUTION Read this section carefully prior to install. Step 3: Attach TV to Wall Plate With the TV brackets fi rmly secured to the TV, use two people to lift the TV into position and hook the TV brackets onto the wall plate, as shown in Diagram D. Swing the bottom of the television towards vthe wallplate, and the Quick-Lock bracket will lock into place.
- Page 7 TV to your desired viewing angle, between +10° and −5°, and your installation is complete. As an added feature, the T3760 can be locked into position at three tilt positions, as shown in Diagram F. Use the M5 x 10mm bolts (N) supplied to lock the tilt arm in place at either -5°, 0°...
- Page 8 5 years parts and labour If equipment fails because of such defects and Kanto or an authorized dealer is notifi ed within 5 years from the date of shipment with proof of original invoice, Kanto will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi...
