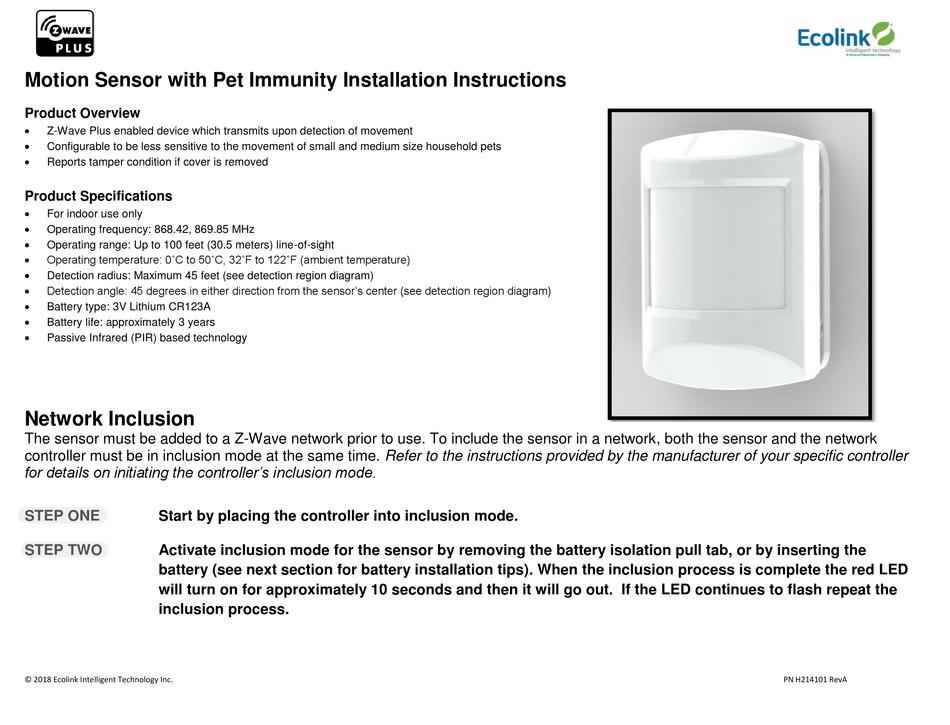

Motion Sensor with Pet Immunity Installation Instructions
Product Overview

Z-Wave Plus enabled device which transmits upon detection of movement

Configurable to be less sensitive to the movement of small and medium size household pets

Reports tamper condition if cover is removed
Product Specifications

For indoor use only

Operating frequency: 868.42, 869.85 MHz

Operating range: Up to 100 feet (30.5 meters) line-of-sight

Operating temperature: 0˚C to 50˚C, 32˚F to 122˚F (ambient temperature)

Detection radius: Maximum 45 feet (see detection region diagram)

Detection angle: 45 degrees in either direction from the sensor's center (see detection region diagram)

Battery type: 3V Lithium CR123A

Battery life: approximately 3 years

Passive Infrared (PIR) based technology
Network Inclusion
The sensor must be added to a Z-Wave network prior to use. To include the sensor in a network, both the sensor and the network
controller must be in inclusion mode at the same time. Refer to the instructions provided by the manufacturer of your specific controller
for details on initiating the controller's inclusion mode.
STEP ONE Start by placing the controller into inclusion mode.
STEP TWO Activate inclusion mode for the sensor by removing the battery isolation pull tab, or by inserting the
battery (see next section for battery installation tips). When the inclusion process is complete the red LED
will turn on for approximately 10 seconds and then it will go out. If the LED continues to flash repeat the
inclusion process.
© 2018 Ecolink Intelligent Technology Inc. PN H214101 RevA
