Performance Tool M664 Owner's Manual page 4

LUBRICATION & MAINTENANCE
Daily
Air Supply Maintenance: Every day, perform maintenance on the air supply according
to the component manufacturers instructions. The lubricator's oil level needs to be
maintained and the moisture filter must be regularly drained. Performing routine
maintenance on the air supply will allow the tool to operate more safely and will also
reduce wear on the tool.
Weekly
Grease Lubrication: Lubricate the internal mechanism of the tool, using white lithium
grease through the grease fittings. Access for lubrication is through the opening beneath
the Oil Cover (39) screw.
Disassembly, Cleaning, and Inspection: Quarterly (every 3 months) have the internal
mechanism cleaned, inspected, and lubricated by a qualified technician. If the Rotor
Blades (18) need replacement, all blades should be replaced as a set.
Air Tool
Oil
Whip
hose
Yes
TROUBLESHOOTING
INSUFFICIENT POWER:
Probable Cause Solution
Dirty or clogged air passages . . . . . . . . . Flush and lubricate tool, drain air tank and supply line
Insufficient air supply . . . . . . . . . . . . . . . . . . . . . . Increase line pressure, Make sure compressor
matches tool's air pressure and consumption needs
Air leakage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Use PTFE tape at all fittings and joints. Check tool for
worn or damaged O-rings & seals.
Worn/damaged wear & tear parts . . . Replace as necessary.
Tool matching . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Be sure you are using a tool suited for the torque
requirements of the job at hand.
T r a n s .
F lu id
M o t o r
B r a k e
O il
F lu id
Water
No

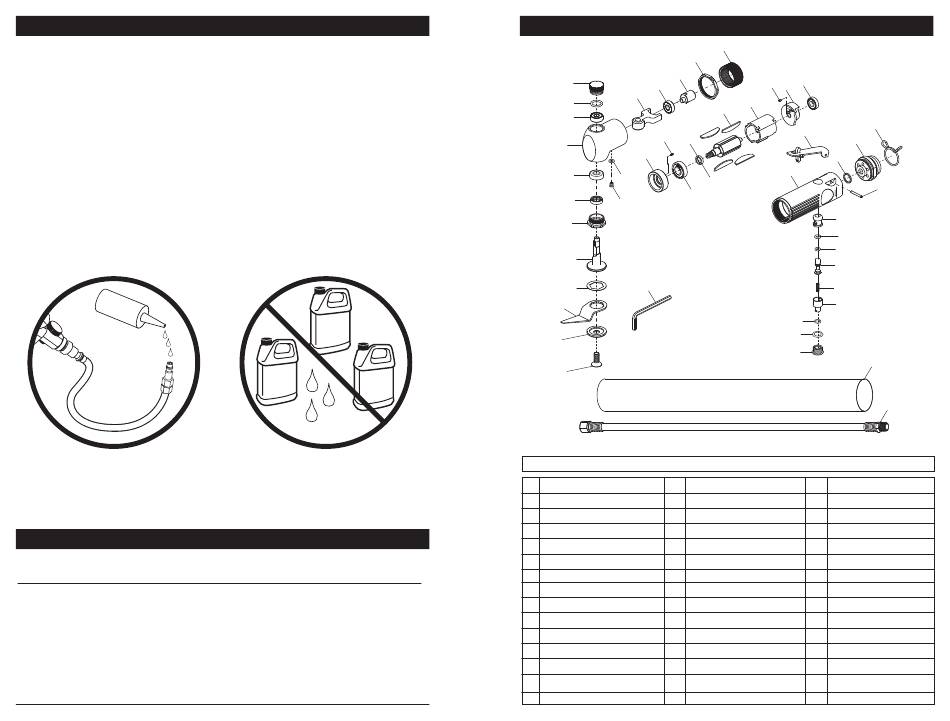

PARTS LIST
13
12
1
11
10
40
2
21
17
3
16A
4
27B
15
5
39
6
7
41
9A
8
9B
9C
Ram Assembly Parts List
# Description Qty. # Description
1 Plug 1 14 Retainer
2 Ball Bearing 1 15 Ball Bearing
3 Head 1 16A Front Plate
4 Ball Bearing 1 16B Washer
5 Oil Seal 1 17 Rotor
6 Nut Clamp 1 18 Rotor Blade
7 Spindle Drive 1 19 Cylinder
8 Blade 57mm (2-1/4 in.) 1 20 End Plate
9A Packing 1 21 Pin (2.5 x 4)
9B Blade Retainer 1 22 Ball Bearing
23 Throttle Lever
9C Screw (M8 x 20) 1
10 Fork Drive 1 24 Lever Pin (M3 x 23)
11 Ball Bearing 1 25 Housing
12 Shaft Crank 1 26 O-Ring
13 Nut 1 27A Valve Stem
14
22
21
20
19
18
35
23
34
38
25
16B
24
33
26
27B
27A
28
29
30
31
32
37
Qty. # Description
1 27B O-Ring
1 28 Valve Spring
1 29 Air Regulator
1 30 O-Ring
1 31 O-Ring
4 32 Throttle Valve Plug
1 33 Valve Bushing
1 34 Exhaust Deflector
2 35 Stop Ring
1 36 Air Hose Assembly 1/4 in. 1
1
37 Exhaust Hose Assembly 1
1 38 Packing
1 39 Screw (M5 x 6)
1 40 O-Ring
1 41 Hex Key Wrench
36
Qty.
2
1
1
1
1
4
2
1
1
1
1
1
