Performance Tool W54201 Owner's Manual

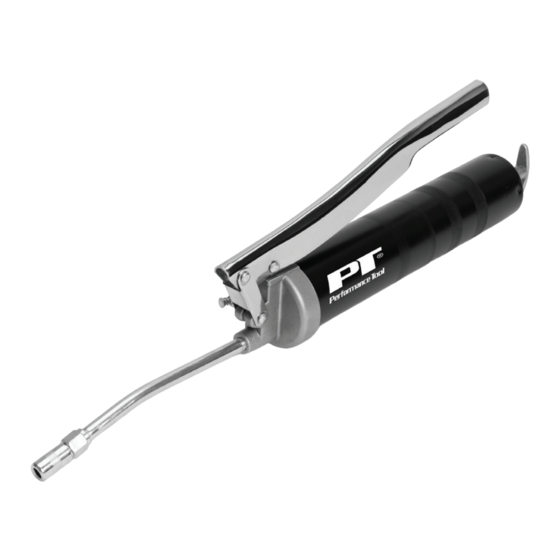

Lever action grease gun

LEVER ACTION GREASE GUN

PISTOLA PARA GRASA CON PALANCA

Item Number W54201, W54203

OWNER'S MANUAL / INSTRUCTIVO

SPECIFICATIONS / CARACTERÍSTICAS - W54201/W54203

Capacity:................................................................................ Bulk - 16 oz. (473ml)

....................................................................................... Cartridge - 14 oz. (414ml)

Load Type: .................................................................................................... 2 Way

Develops up to:....................................................................................... 9,000 PSI

Delivers:........................................................................ 1 oz. / 28 Strokes (29.5ml)

Hose / Length: ..................................................................... 6 in. Rigid 1/8 in. NPT

WARNING: READ, UNDERSTAND AND FOLLOW ALL INSTRUCTIONS AND

WARNINGS BEFORE OPERATING THIS TOOL. FAILURE TO DO SO MAY

RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE AND WILL

VOID WARRANTY.

Table of Contents

Need help?

Do you have a question about the W54201 and is the answer not in the manual?

Page 1 LEVER ACTION GREASE GUN PISTOLA PARA GRASA CON PALANCA Item Number W54201, W54203 OWNER'S MANUAL / INSTRUCTIVO SPECIFICATIONS / CARACTERÍSTICAS - W54201/W54203 Capacity:................Bulk - 16 oz. (473ml) ..................Cartridge - 14 oz. (414ml) Load Type: ....................2 Way Develops up to:..................9,000 PSI Delivers:................
Page 2 GREASE CARTRIDGE LOADING/PARA LLENAR CARTUCHO DE GRASA NOTE: This is a basic instruction manual which covers various models of grease guns. The illustrations below may not depict exactly your specific gun. 1. Rotating counter clockwise, unscrew Head Cap from gun Barrel. (Fig. 1) NOTA: Este es un manual de instruciones basico que cubre varios modelos de pistolas de grasa.
Page 3 BULK LOADING WITH DISPENSER/RELLENO EN VOLUMEN CON DISPENSADOR NOTE: Used cartridges must be removed prior to bulk loading. 1. Make sure the bulk loading filler valve is compatible with the adapter on the pump. (Figure 5) 2. Attach the filler valve to the adapter by pushing in and rotating slightly. 3.
Page 4 PERFORMANCE TOOL® does not authorize any other person to make any warranty or to assume any liability in connection with its products.

W54203
