POOL & SPA HEAT PUMP
INSTALLATION/OPERATION
MANUAL
Models :
AT75 • AT115 • AT130 • AT150
MODEL # ___________________________________________________
SERIAL # ___________________________________________________
INSTALL DATE ______________________________________________
INSTALLING CONTRACTOR ___________________________________
Advertisement
Table of Contents
Related Manuals for aquatherm AT75
Summary of Contents for aquatherm AT75
- Page 1 POOL & SPA HEAT PUMP INSTALLATION/OPERATION MANUAL Models : AT75 • AT115 • AT130 • AT150 MODEL # ___________________________________________________ SERIAL # ___________________________________________________ INSTALL DATE ______________________________________________ INSTALLING CONTRACTOR ___________________________________...
-
Page 2: Table Of Contents
Maintenance & Operation ..........13-14 Proper Water Flow Water Chemistry Standards Pool & Spa Refinishing Irrigation and Storm Run-Off Proper Clearances Heating Tips ................15 Operational & Maintenance Recommendations ......16 Troubleshooting ..............17-18 Safety Information ..............18 Recommended Maintenance ............19 Aquatherm Contact Information .......Back Cover... -
Page 3: Heat Pump Options
HEAT PUMP OPTIONS The heart of your heat pump is the patented titanium heat exchanger. One of the primary causes of premature heat pump demise is the failure of the heat exchanger. Ordinary heat exchangers are made from a cupronickel alloy. This cupronickel material is susceptible to attack from the sanitizers used in pools and spas and from other related water chemistry conditions. -
Page 4: Heating Quick Start & Stop
HEATING QUICK START AND STOP 1. Verify Electrical Power is Present at Heater: A. Ensure that the unit has electrical power connected; the heater controller display should be illuminated. B. If the display is blank, be certain the electrical breaker, and heater disconnect, are switched to “ON.”... - Page 5 temperature and maintained per the setting determined previously in: “Set the Heater Controls.” D. In operation, whenever the actual (displayed) water temperature falls below the desired set point, after an initial time delay of 4-minutes, the unit will begin heating. THE HEATER CONTROLLER HAS AN ANTI-SHORT CYCLE TIME DELAY.
-
Page 6: Heater Controls
HEATER CONTROLS Appearance may vary by model TO UNLOCK CONTROLS: SLIDE FINGER ACROSS THE YELLOW ARROW (MAKE SURE FINGER IS DRY) POOL / SPA SELECTOR – Selects either pool or spa thermostat. UP ARROW – Increases temperature setting. (Maximum setting is DOWN ARROW –... -
Page 7: Operational & Programming Codes
Heat pumps contain no owner-serviceable components. Owner-initiated adjustments, must not be attempted. Failure to heed the following may result in equipment damage and voiding of manufacturer’s warranty. If adjustments are deemed necessary, the owner should contact installing dealer or Aquatherm Customer Support at 239-482-0606. -
Page 8: User Lock Codes
USER LOCK CODE OPTION [ULC]: Heat pumps are shipped from the factory with the [ULC] option disabled. En- abling the [ULC] function permits the heat pump owner to restrict access to the unit’s controls. With the [ULC] function enabled, unless the correct ULC code number is entered, changes to Level-1 programming are not possible. - Page 9 2) When reset to the factory default settings the user lock code [ULC] is deacti- vated and the user lock code number [ELC] is reset to “0.” 3) In addition, all other settings are returned to the factory defaults. If an external controller is in use, contact Aquatherm at 888-297-3826. Ask for assistance with re-configuring the controller for use with an external controller.
-
Page 10: Plumbing & Water Connections

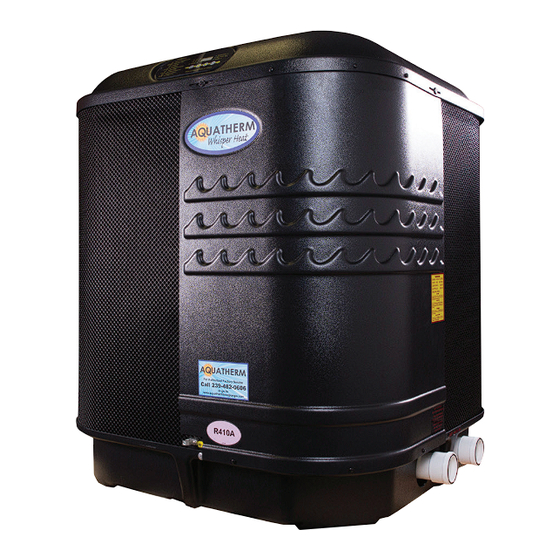

UNIT DESCRIPTION AIR DISCHARGE FAN WARNING: ROTATING BLADE KEEP HANDS & HAIR CLEAR CONTROLS WITH LED READ OUT DATA PLATE WATER IN 2” THREADED UNION ELECTRICAL (INCLUDED) INSTALLATION WATER OUT PORTS 2” THREADED UNION (INCLUDED) PLUMBING & WATER CONNECTIONS 1. BASIC PLUMBING. For a pool only or spa only, install the plumb- ing piping as shown. -
Page 11: Electrical Connections
4. POOL/SPA COMBINATION W/SPILL-OVER Use this diagram for a connected pool and spa, where the spa has a spill-over type waterfall into the pool. Where one pump and one heater are used for both the pool and spa. If the water pump exceeds 1.5 H.P. - Page 12 A knock out is located on the bottom of the box just below the contactor. A sealtight fitting must be used to attach the conduit to the electric box. WIRE SIZE REQUIREMENTS AT75 ...........#8 AT100 ..........#6 AT115 ..........#6 AT130 ..........#6 AT150 ..........#6 •...
-
Page 13: Automation Connections
AUTOMATION CONNECTIONS Full Automation: (Uses Automation Thermostats) Jandy (Zodiac) Aqualink, Goldline Aqualogic, Pentair Easy Touch etc. 2 Wire Connection - Wire into Y & Z *Need to enter service menu to program HP to communicate with control Menu Programming Instructions (JAO Paramater): Slide finger across the yellow arrow on display to unlock control Hold Temp Up Arrow &... -
Page 14: Seasonal Use & Shut Down
AT START UP: CONTINUOUS CIRCULATION PUMP OPERATION REQUIRED When starting a heat pump for the first time, it must be permitted to operate, contin- uously, until the desired water temperature is attained. This may take several hours, to several days, depending upon the size of the pool or spa and weather conditions. If a time clock or similar device controls the operating times of the water circula- tion pump, temporarily override the water pump controller, allowing for 24-hour, continuous water pump operation. -
Page 15: Maintenance & Operation
“HP5”) shut the heater off. • Before calling for service, always check the filter, the pump basket, and water valve positions and turn the breaker off and back on to clear the error. If the problem persists, please call Aquatherm at: 239-482-0606 MAINTAIN PROPER WATER CHEMISTRY • IMPORTANT! Your heat pump is engineered for exceptional durability and reliability. -
Page 16: Proper Clearances
CAUTION- POOL/SPA REFINISHING OPERATIONS During pool refinishing or acid cleaning, the water flow through the heater must be shut off. Water flow to the heater must remain off until water chemistry is once again in balance and the water is clear in appearance. Failure to follow these in- structions may void heater warranty. CONTROL IRRIGATION AND STORM RUN OFF • Control Irrigation: Irrigation water spray can damage heater components. Regardless of water quality, it is important that irrigation be directed away from the heat pump. -
Page 17: Heating Tips
HEATING TIPS Heating in Cooler Weather... Late night and early morning, generally being the coolest times of the day, are least efficient for heating. For most efficient heating operation, heat pumps should be timed to operate during the warmest, daylight portions of the day. Please set water pump and heat pump controls accordingly. Pool/Spa Blankets A “solar” blanket will significantly reduce your heating bills. Check with the in- stalling dealer to see if your heat pump was sized to be used in conjunction with... -
Page 18: Operational & Maintenance Recommendations
For service plan information, please see: Planned Maintenance Program, later in this section, or contact Aquatherm Customer Support at: 239-482-0606... -
Page 19: Troubleshooting
Is the air blowing out of the top of the unit noticeably cooler than the surrounding air? (With heating indicator light illuminated, a 9°F to 12°F difference is typical.) If not, contact Aquatherm for service at: 239-482-0606. But first, be sure all air coil surfaces are free from obstructions– low roof overhangs, landscaping, walls, fences, etc., can restrict air flow. The heat pump needs good airflow to operate at peak efficiency. -
Page 20: Safety Information
Using a water test kit, or a test strip, check a sample of the water for chlorine or bromine. If the sample tests positive for sanitizer, call Aquatherm for service at: 239-482-0606. If the test is negative, the water is probably harmless condensation. -
Page 21: Recommended Maintenance
3 Check water temperature differential 3 Check pool chemical levels 3 Calibrate thermostat Annual maintenance should be performed starting one year after the installation of the heater. Call Aquatherm Customer Service at 239-482-0606 for recommendation of service company in your area. - Page 22 POOL & SPA HEAT PUMPS 2213 Andrea Lane Fort Myers, FL 33912 (239) 482-0606 FAX: (239) 482-7737 (888) 297-3826 www.aquathermheatpumps.com...
