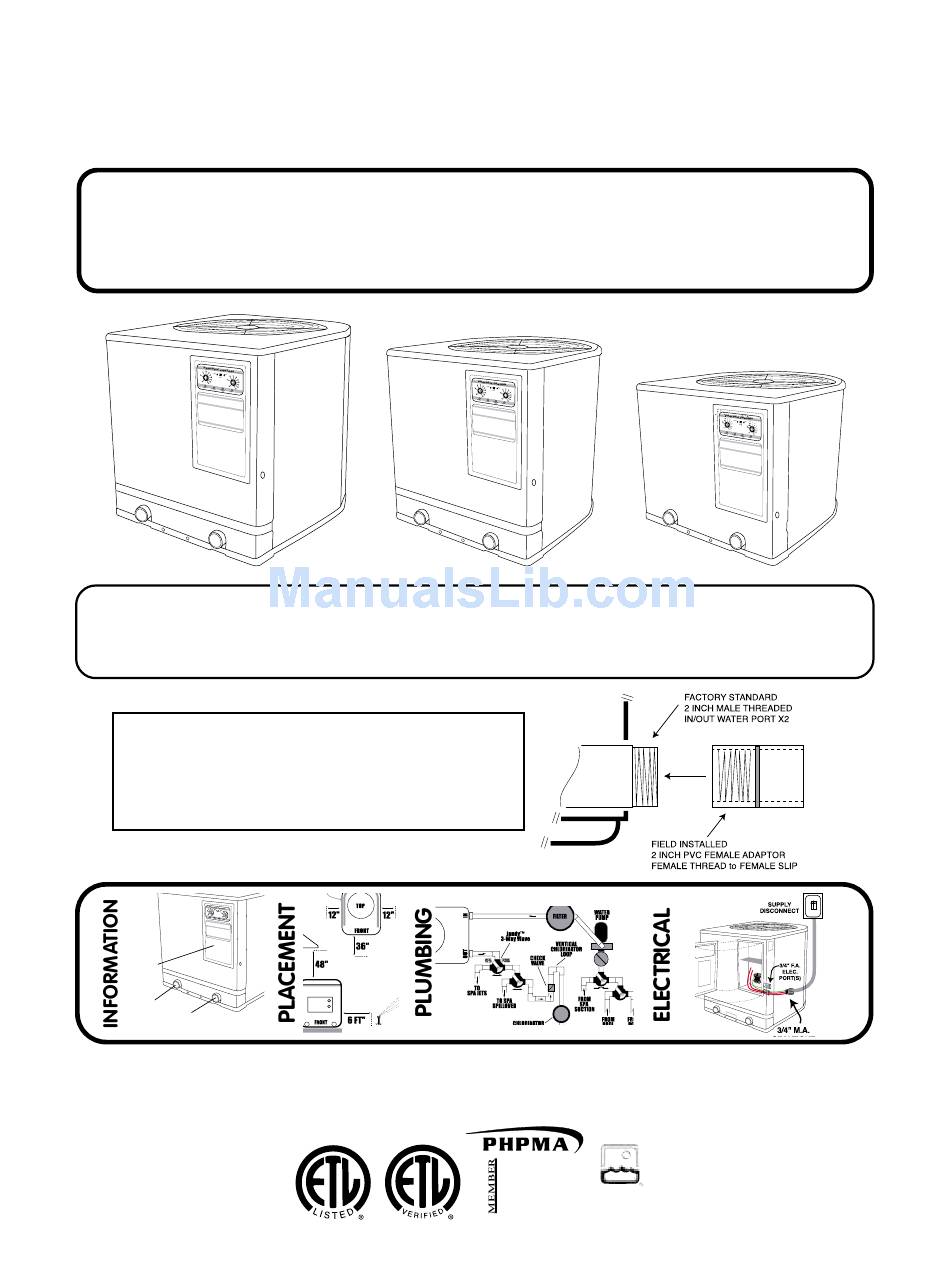

INSTALLATION MANUAL
Model AT800 AT600 & AT400
"BLACK CABINET" with ANALOG PROLOGIC CONTROL SERIES ONLY
NOTICE: UNIT REQUIRES TWO,
2 INCH FEMALE ADAPTORS
FOR PLUMBING CONNECTIONS !
ELEC.
PANEL
WATER
OUT
WATER
IN
WARNING:
Specifications may change without notice. Intended for licensed factory
authorized installers only! Users should review separate owners operational manual.
WARNING: Specifications may change without notice.
V6.0-AT-A © 2001 Aquatherm Heat Pumps a division of Calorex U.S.A. LLC
HEAT PUMPS
HEAT PUMPS
SPA
POOL
MEMBER
Pool
Heat
Pump
NATIONAL
Manufacturers
POOL & SPA
Association
INSTITUTE
Advertisement
Related Manuals for aquatherm AT800
Summary of Contents for aquatherm AT800
-
Page 1: Installation Manual
Specifications may change without notice. Intended for licensed factory authorized installers only! Users should review separate owners operational manual. MEMBER Pool Heat Pump NATIONAL Manufacturers POOL & SPA Association INSTITUTE WARNING: Specifications may change without notice. V6.0-AT-A © 2001 Aquatherm Heat Pumps a division of Calorex U.S.A. LLC... - Page 2 Table of Contents Page 3 A. Introduction .................... 1. Unit Description 2. Explanation of Heat Pump Heat Transfer 3. Efficiency Comparisons B. Unit Placement ..................Pages 4 1. Placement Requirements 2. Air Flow Clearances & Service Access 3. Gutters, Overhangs & Sprinklers Pages 5 - 7 C.
-
Page 3: Unit Description
Unit Description AIR DISCHARGE FAN WARNING POOL/OFF/SPA WARNING: ROTATING BLADE KEEP SELECT SWITCH HANDS & HAIR CLEAR! THERMOSTAT DANGER FROM ELECTRICAL CONTROLS SHOCK & ROTATING FAN ! POOL/SPA SHUT OFF ALL POWER BEFORE SERVICING ! CAUTION: MORE THAN ONE STATUS DISCONNECTION MAY BE INDICATOR REQUIRED TO ELIMINATE ALL... - Page 4 Heat Pump Placement & Clearances FAN DISCHARGE AIR FLOW OUT AIR COIL AIR FLOW IN ON 3 SIDE 2” THREADED MALE PIPING CONNECTIONS WATER IN-OUT PORT BASE INDICATOR LABEL CONCRETE OR 1. To allow for proper condensation drain- PREFAB age, use a level slab to elevate the heat pump to at least the same height as the pool filter system slab or 2 to 3 inches “minimum”...
- Page 5 Plumbing & Water Connections - 2” Threaded Male For a simple pool only or spa only, install the plumbing piping as shown: Connections from factory are 2” threaded male pipe, requiring 2 inch female adaptors, see diagram. Use teflon tape and pipe sealer. Tighten hand tight plus 1/2 snug tight with pliers. Water IN on the RIGHT, Water OUT on the LEFT, PLUMB AFTER the FILTER &...
- Page 6 Plumbing & Water Connections for Pool/Spa Combinations For a connected pool and spa, where the spa has a spill over type waterfall into the pool. Where one pump and one heater is used for either the pool or the spa. If the water pump exceeds 1.5 H.P.
- Page 7 Plumbing & Water Connections with Solar Plumbing for a system where a solar pool heater is installed. It is If the water pump exceeds 1.5 H.P. then strongly advised that an auto- install either of the optional bypasses as matic solar control device be shown on page 5.
- Page 8 BREAKER SIZE RECOMMENDATION tions as required by National MODEL AT800 & A T600: 50 AMPS Electrical Code. MODEL AT400: 40 AMPS MINIMUM WIRE SIZE for ALL MODELS You must bond the heater ex- #8 A.W.G.
- Page 9 HEAT PUMPS Pool Heat a Division of Calorex USA L.L.C. Pump NATIONAL Manufacturers 2213 Andrea Lane Ft. Myers FL 33912 POOL & SPA Association INSTITUTE 888-297-3826 941-482-0606 Specifications may change without notice. www.aquathermheatpumps.com © 2001 Aquatherm Heat Pumps www.calorexusa.com Page 9...
- Page 10 Wiring Diagram AT800, AT600 & AT400 “Prologic”Analog Control Models Single Phase, 208/240 Volts, 60 Hz. Page 10...
- Page 11 Wiring Diagram for “3-Phase” Model AT800 & AT600, 208/240 Volts, 60 Hz, with “Prologic” Analog Control WARNING: THREE PHASE MODELS: 3 Phase Compressor Is Rotation Sensitive! Use Refrigerant Gages! Do Not Go By Fan Rotation Since It Will Always Be Single Phase!
- Page 12 Interfacing “Prologic” Analog Control Models with: Jandy™ AquaLink RS, AquaSwitch, JI 2000 & Compool™ To interface the “Prologic” analog control heat pump models with the Jandy™ AquaLink RS series or Compool, run a 2 wire (16 A.W.G. or larger) insulated cable from the device to the heat pump.
- Page 13 Jandy™ & Compool™ Connections for “Prologic” Analog Control Models for Compool Attach the 2 wire cable to the Compool’s power center board located on the terminals labeled “HTR” *See the controllers installation guide also. for AquaLink RS Attach the 2 wire cable to positions #1 and position # 2 on the 10 slot, green terminal bar inside the AquaLink’s power center.
- Page 14 “Prologic” Analog Control Panel Information TEMPERATURE CONTROLS: The top Thermostat controls the pool temperature. The bottom Thermostat controls the spa temperature. If you do not have a spa you can use the two thermostats as a high and low temperature preset. THERMOSTAT/OFF SWITCH- POOL/OFF/SPA: The Thermostat/Off Switch determines which thermostat is active, up for pool, down for spa.
- Page 15 Operational Sequence & Troubleshooting Flow Chart for “Prologic” Analog Control Models 220V Power Water Pump To Heater On Timer Activates Power Light On Water Pump Starts Flowing Water Flow Water Not No Water Flow Through Light On Flowing Through Heater Off Heater Heater Confirmed Thermostat...
- Page 16 Division of Calorex USA L.L.C. 2213 Andrea Lane Ft. Myers FL 33912 888-297-3826 941-482-0606 www.aquathermheatpumps.com www.calorexusa.com MEMBER Pool Heat Pump NATIONAL Manufacturers POOL & SPA Association INSTITUTE Specifications may change without notice. © 2001 Aquatherm Heat Pumps a Division of Calorex USA L.L.C.
