The Zone Terminal can be connected directly to a VAV/UNT through a
Zone Sensor without the use of the CBLCON-0 (Figure 4). This is a
portable application.
Zone Terminal

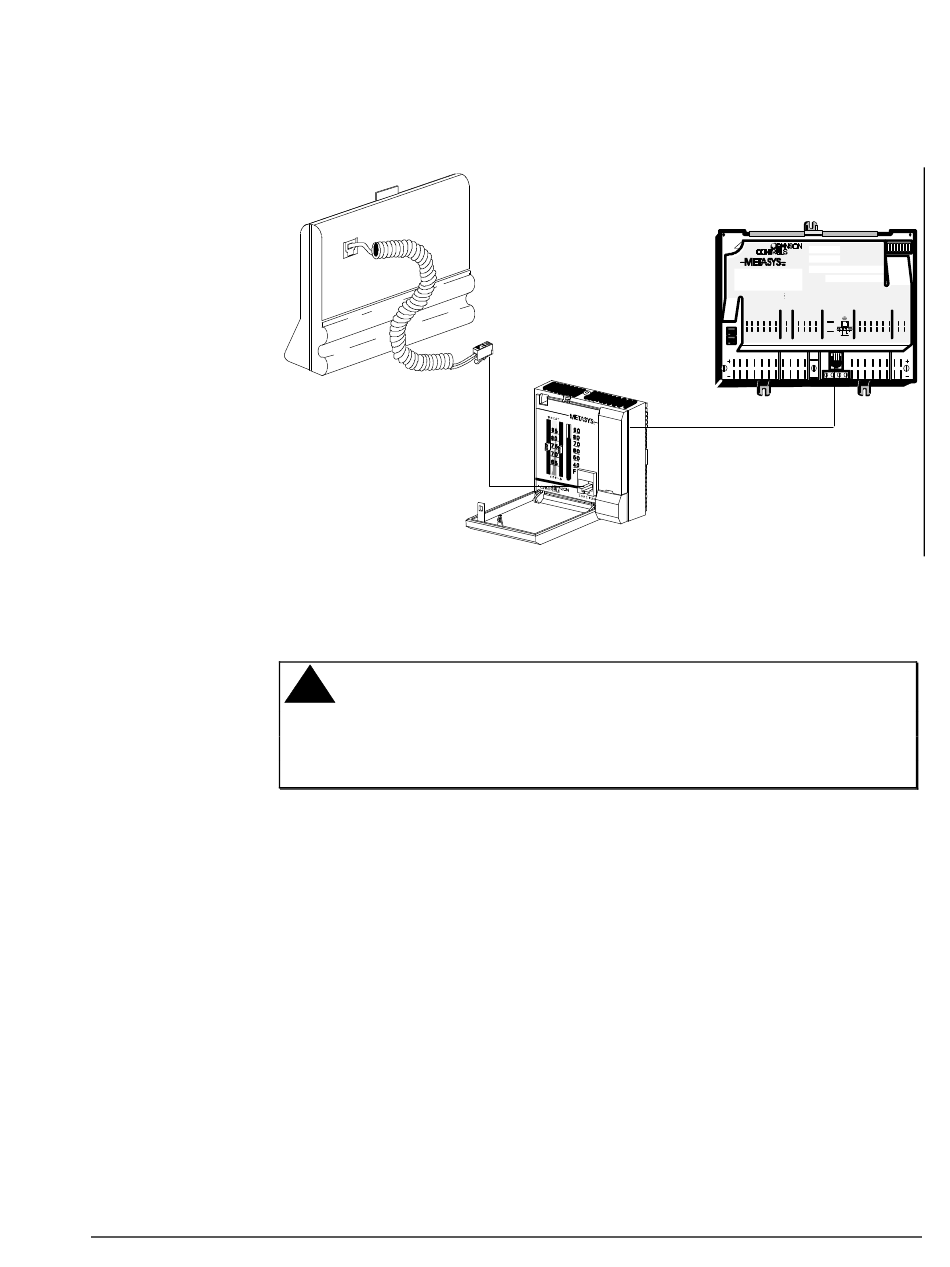

Figure 4: Remote Connect ZT to VAV/UNT through the
!
CAUTION: The ZT must be plugged into a 6-pin telephone-type
jack. Plugging the ZT into an 8-pin jack destroys the
8-pin receptacle and prevents the ZT from powering
up.
TE-6400
Zone Sensor
Zone Terminal Installation Sheet 5
VAV/UNT
O F F
AS - UNT101-0
0 - 1 0 V D C
A N A LO G
O U TP U T
A N A L O G I N P U T S B INARY IN B IN A R Y O U T P U T
C O M
1 2 3 4 5 6 1 2 3 4 1 2 3 4 5 6 1 2
PWR
I N
2 4 V
AN ALOG IN PU TS B I N A R Y C O M 2 4 V A C T O LO A D S
AC A N A L O G
C O MM ON O U T P U T
C O M M O N
ANALOG INPUTS BI NARY IN BI N A RY O UT PU TS AN A OUT
CONCT3J
