Mounting the ZTU
Externally on the
UPM
10 Zone Terminal Installation Sheet
Using the wall mounting base, follow the instructions below to mount the
Zone Terminal on a UPM.
Zone
Terminal
Mounted on
the Outside

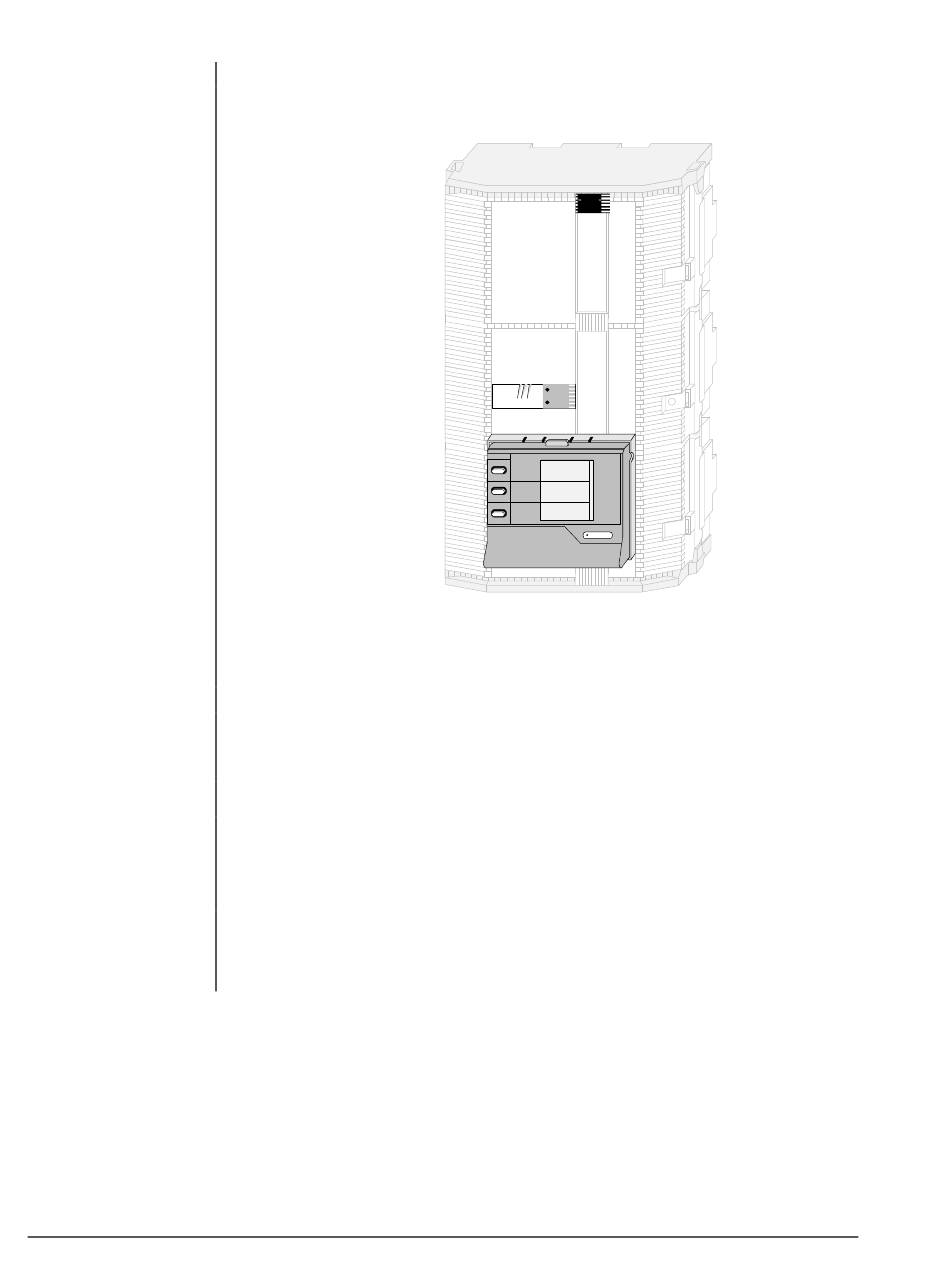

Figure 9: Mounting the Zone Terminal on a UPM
1. Position the Zone Terminal Wall Mounting Base flush on the cover at
eye level (approximately 65 inches from the floor to top of ZT).
2. Mark mounting holes.
3. Mark cable hole.
4. Drill three size 3/32 inch pilot holes for mounting the base.
5. Drill 5/8 to 1 inch hole for cable.
6. Mount the base to the UPM cover using three No. 6 thread forming or
sheet metal screws. Use a No. 6 x 3/4 inch screw for the top hole and
two No. 6 x 1/2 inch screws for the bottom screws.
M E TA S Y S
N2
Zone
Bus
AHU103
A LA R M
ztcontr
