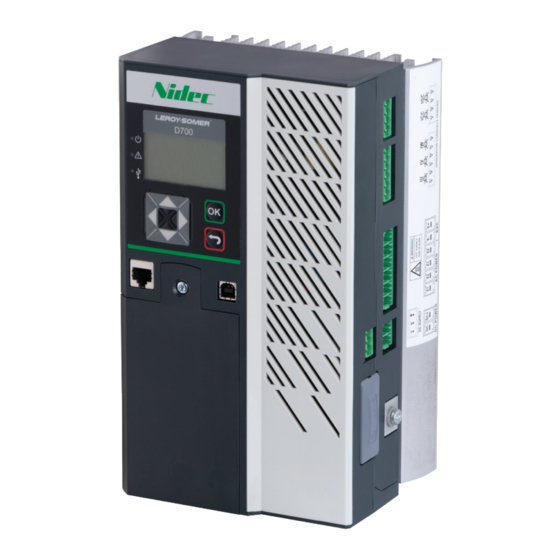

Summary of Contents for Nidec Leroy-Somer D700
- Page 1 D700 Dual plate Installation and maintenance...
-
Page 3: Table Of Contents
Electric Power Generation Installation and maintenance 5747 en - 2018.10 / a Dual plate D700 Table of contents 1. General instructions ..............................4 1.1. Identity card ..............................4 1.2. General presentation ............................4 1.2.1. Of the product ............................. 4 1.2.2. Of the equipment ............................5 1.3. -
Page 4: General Instructions
45800 SAINT JEAN DE BRAYE France Tel: +33 2 38 60 40 00 E-mail: savorleans.ials@mail.nidec.com Internal LEROY SOMER reference: P5 198 0003 1.2. General presentation 1.2.1. Of the product This manual describes the instructions for installation, use, setup and maintenance of the dual plate D700. -
Page 5: Of The Equipment
Electric Power Generation Installation and maintenance 5747 en - 2018.10 / a Dual plate D700 1.2.2. Of the equipment The dual plate D700 allows switching from one AVR to a second one, while the generator is running. To make this switching happen, different components come into play: •... -
Page 6: Technical Characteristics
Electric Power Generation Installation and maintenance 5747 en - 2018.10 / a Dual plate D700 1.3. Technical characteristics Plate equipped with two AVRs for generators, with the following main regulation functions: voltage, power factor, voltage match circuit, kVAR, power factor at the delivery point, manual mode. For each AVR: •... - Page 7 Electric Power Generation Installation and maintenance 5747 en - 2018.10 / a Dual plate D700 119.5 371.32 28.8 • Fixings:...
-
Page 8: Safety Devices And General Safety Instructions
Electric Power Generation Installation and maintenance 5747 en - 2018.10 / a Dual plate D700 1.4. Safety devices and general safety instructions For the user's own safety, the dual plate D700 must be connected to approved earth terminals on the plate. The tools needed to make this connection are not included with the plate. -
Page 9: Use
Electric Power Generation Installation and maintenance 5747 en - 2018.10 / a Dual plate D700 1.4.2. Use D700 voltage regulators are components designed for integration in installations or electrical machines. When integrated in a machine, commissioning must not take place until it has been verified that the machine conforms with directive 2006/42/EC (Machinery Directive). -
Page 10: Operation
Electric Power Generation Installation and maintenance 5747 en - 2018.10 / a Dual plate D700 1.4.6. Operation Installations in which dual plate D700s are to be integrated must be fitted with additional protection and monitoring devices as laid down in the current relevant safety regulations, such as the law on technical equipment, accident prevention regulations, etc. - Page 11 Electric Power Generation Installation and maintenance 5747 en - 2018.10 / a Dual plate D700 • XM: AVR measurement. These are isolating blade terminals. • XP: AVR power and field excitation • X24: 24 VDC power supplies, used redundantly with the 230 VAC power supplies on the plate •...
- Page 12 Electric Power Generation Installation and maintenance 5747 en - 2018.10 / a Dual plate D700 Plate Generator D700 Connection Terminals XS.5 Phase 230 VAC power supply - AVR 2 (plate power supply redundancy) XS.6 Phase 230 VAC power supply - Control circuit (plate power supply redundancy) XC.1 Maintenance mode –...
-
Page 13: Consumption
Electric Power Generation Installation and maintenance 5747 en - 2018.10 / a Dual plate D700 2.3. Consumption • Power supplies: • Consumption < 2A • Generator voltage sensing: • Consumption < 2VA • Mains voltage sensing: • Consumption < 2VA •... -
Page 14: Setup Instructions
Electric Power Generation Installation and maintenance 5747 en - 2018.10 / a Dual plate D700 3. Setup instructions 3.1. Stator voltage and current measurement For the plate to work correctly, the stator voltage and current measurement on both AVRs must be identical. For generators with an unbalanced load, using different phases can result in a measurement fault and a bump in regulation on switching from one AVR to the other. - Page 15 Electric Power Generation Installation and maintenance 5747 en - 2018.10 / a Dual plate D700 Click "Yes" for the AVR which should be "active" when the plate starts, and "No" for the AVR which should be "Online". If the AVR is the "Master", the "Master regulator" box is checked. In both cases, the drawing on the right is updated with the appearance of a second D700.
-
Page 16: Checks Prior To Commissioning
Electric Power Generation Installation and maintenance 5747 en - 2018.10 / a Dual plate D700 On the "Inputs/Outputs" page • Inputs DI14 to DI16 are assigned as follows: • DI14: activation of "Maintenance" mode. This mode can be used to set the D700 offline. Redundancy between the two AVRs is then no longer active: only the second D700 is able to regulate. -
Page 17: Aligning Measurements
Electric Power Generation Installation and maintenance 5747 en - 2018.10 / a Dual plate D700 • Or with the HMI: • On the "Master" AVR: the "AVR active" and "AVR online" outputs are active, as well as the output controlling the contactor (DO10). •... -
Page 18: Instructions For Use
Electric Power Generation Installation and maintenance 5747 en - 2018.10 / a Dual plate D700 Step 2: The active AVR will be the reference for voltage and current measurements. The accuracy of its readings should therefore be checked against any devices present on the customer's premises (instruments measuring voltage, current, power factor, etc.). -
Page 19: Correction Of Setpoints With Digital Inputs
Electric Power Generation Installation and maintenance 5747 en - 2018.10 / a Dual plate D700 An "active" AVR can then be switched to an "online" AVR: Start Start AVR 1 = active AVR 1 = online AVR 2 = online AVR 2 = active Contact closed on terminals Contact closed on terminals... - Page 20 Electric Power Generation Installation and maintenance 5747 en - 2018.10 / a Dual plate D700 4.3.4.1. Loss of power supply If the power supply fails, switching to the "online" AVR occurs automatically. Start AVR 1 = active AVR 2 = online Power supply fault on AVR 1? Switching: AVR 1 = fault...
- Page 21 Electric Power Generation Installation and maintenance 5747 en - 2018.10 / a Dual plate D700 4.3.4.3. Loss of sensing Loss of voltage sensing on the machine is monitored throughout operation. • If loss of sensing is detected on the "active" AVR and not on the "online" AVR, the active AVR switches to fault mode.
- Page 22 Electric Power Generation Installation and maintenance 5747 en - 2018.10 / a Dual plate D700 4.3.4.4. Reactive reverse power fault The reactive reverse power fault on the machine is monitored throughout operation. • If this fault is detected on the "active" AVR and not on the "online" AVR, the active AVR switches to fault mode.
-
Page 23: Procedure For Replacing A Faulty Avr
Electric Power Generation Installation and maintenance 5747 en - 2018.10 / a Dual plate D700 4.3.5. Procedure for replacing a faulty AVR If one of the AVRs is faulty, the AVR concerned must be replaced. This change can be made (while observing the safety conditions), even while the installation is running, by performing the steps below: Step 1: Isolating the AVR •... -
Page 24: Anomalies And Problems
Electric Power Generation Installation and maintenance 5747 en - 2018.10 / a Dual plate D700 4.4. Anomalies and problems Several anomalies can occur on the AVR, which may result in it being replaced. These faults are listed in the table below. ANOMALIES CAUSES REMEDIES... -
Page 25: Maintenance Instructions
Electric Power Generation Installation and maintenance 5747 en - 2018.10 / a Dual plate D700 5. Maintenance instructions 5.1. Technical data 5.1.1. Mechanical drawings The layout plan for the dual plate D700 is available under reference P5 198 0003. 5.1.2. Wiring diagrams The wring diagram for the dual plate D700 is available under reference WD 198 0003. - Page 26 Electric Power Generation Installation and maintenance 5747 en - 2018.10 / a Dual plate D700...
- Page 27 Service & Support Our worldwide service network of over 80 facilities is at your service. This local presence is our guarantee for fast and efficient repair, support and maintenance services. Trust your alternator maintenance and support to electric power generation experts. Our field personnel are 100% qualified and fully trained to operate in all environments and on all machine types.
- Page 28 Linkedin.com/company/Leroy-Somer Twitter.com/Leroy_Somer_en Facebook.com/LeroySomer.Nidec.en YouTube.com/LeroySomerOfficiel 5747 en - 2018.10 / a...
