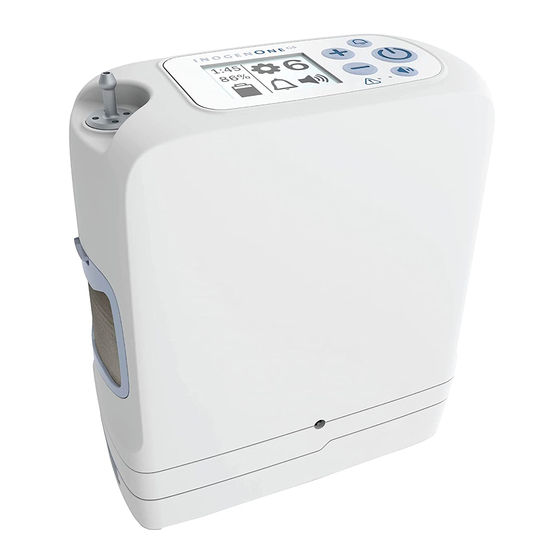

INOGEN ONE G5
PRODUCT OVERVIEW
Julien Gineste

Advertisement

loading
Need help?

Need help?

Do you have a question about the ONE G5 and is the answer not in the manual?

Questions and answers

Summary of Contents for Inogen ONE G5

  • Page 1 INOGEN ONE G5  PRODUCT OVERVIEW Julien Gineste...
  • Page 2 Inogen One G5 Specifications Dimensions: L / W / H: 7.19 in. / 3.26 in. / 7.11 in. w/ 8‐cell battery L / W / H: 7.19 in. / 3.26 in. / 8.15 in. w/ 16‐cell battery L / W / H: 7.19 in. / 3.26 in. / 9.03 in. Weight: 4.7 pounds (includes single battery) Noise: 38 dBA at setting 2  Maximum Sound Power of 60 dBA and Maximum  Sound Pressure level of 50 dBA per ISO 80601‐2‐69 Warm up time: 2 minutes Oxygen Concentration**: 90% ‐ 3% /+ 6% at all settings Flow Control Settings: 6 settings: 1 to 6 Maximum Outlet Pressure < 28.9 PSI Power: AC Power Supply: AC Input: 100 to 240 VAC   50 to 60 Hz Auto‐Sensing: 2.0‐1.0A DC Power Cable: DC Input: 13.5‐15.0VDC Rechargeable Battery: Voltage: 12.0 to 16.8 VDC (±0.5V) Battery Duration*: Up to 6.5 hours with single battery Up to 13 hours with double battery Battery Charging Time: Up to 3 hours for a single battery Up to 6 hours for a double battery Environmental Ranges Intended for Use: Temperature: 41 to 104˚F (5 to 40˚C) Humidity: 0% to 95%, non‐condensing Altitude: 0 to 10,000 ft (0 to 3048 meters) Environmental Ranges Intended for ...
  • Page 3 Bluetooth App Compatibility  (Not available yet) • EMEA version will have BT disabled.  • In the future BT can be activated in an Authorized Inogen Service Center when  available in the EMEA markets...
  • Page 4 G5 System Weight and Dimensions Configuration Alone With Bag Concentrator 1.61 3.55 1.95 4.30 Concentrator w/ 8-cell 2.15 4.74 2.49 5.48 Concentrator w/ 16-cell 2.60 5.73 2.93 6.47 8-cell battery 0.54 1.19 16-cell battery 0.99 2.18 0.34 0.74 Power Supply (with cord) 0.59 1.31 Length Width Height...
  • Page 5 G5 Pulse Volumes at Flow Settings Same as G3 and G4 but with one more setting G5 Flow Setting Breaths per Minute mL/breath +/- 15% per ISO 80601-2-67 Total Volume per Minute (ml/min) 1050 1260...
  • Page 6 G5 User Interface Panel • New Larger Display Screen  • Displays Symbols and Numbers Only • No Text (refer to user manual for all symbol definitions) Flow Setting Control  Backlight Display Buttons Audible Alert  Button Power On/Off A removable static cling label is  applied over the display screen  with the text below, please  have user remove upon set up. Volume Control  Button Contains Transmitter Module IC: 2417C-BX31A Audible Signals FCC ID: N7NBX31A This device complies with Part 15 of the Indicator Lights FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference...
  • Page 7 G5 Power Supplies BA‐501 AC Power Supply  Input: 100 to 240 VAC, 50 to 60 Hz Auto‐sensing: 2.0‐1.0A for worldwide  BA‐306 DC Power Cable  Input: 13.5‐15.0 VDC...
  • Page 8 G5 Power Port Power port access...
  • Page 9 G5 Battery Location Slide battery on Latch will click into place when  the battery is in positon...
  • Page 10 G5 Battery Options Model # BA‐500 8 Cell Battery ~ 6.5 Hours Run Time Model # BA‐516 16 Cell Battery ~ 13 Hours Run Time Battery Indicator Gauge...
  • Page 11 G5 Battery Run Times Power Consumption 8-cell run time Power Consumption 16-cell run time (hours:minutes) (hours:minutes) Setting 1.0 14.6 6:35 14.8 13:28 Setting 2.0 18.7 5:03 18.4 10:22 Setting 3.0 26.9 3:27 26.7 7:01 Setting 4.0 37.8 2:25 37.4 4:55 Setting 5.0 48.5 1:51 48.4 3:48...
  • Page 12 G5 Battery Charge Times 8-cell charge time 16-cell charge time (hours:minutes) (hours:minutes) Standby 2:46 3:48 Setting 1.0 2:49 3:53 Setting 2.0 2:47 3:53 Setting 3.0 2:46 3:50 Setting 4.0 2:45 3:49 Setting 5.0 2:43 4:43 Setting 6.0 3:09 5:40...
  • Page 13 Air Intake and Exhaust Locations Intake Vents  Gross Particle Filters should be removed  and cleaned weekly – #RP‐500 Exhaust Vent...
  • Page 14 G5 Columns # RP‐502 Remove Dust  Caps before  installing Access columns by removing battery and  sliding latch, open wire ring and pull columns  out. Remove Dust  Caps before  installing...
  • Page 15 Inogen One G5 Carry Bag Model # CA‐500 G5 intake and exhaust vents should be visible through mesh, on  front, sides and bottom of bag Padded footing is designed for  Exhaust Vent Intake Vent Intake Vent use with both single and  double battery. Bottom mesh  is intended to allow air flow  for exhaust and battery.
  • Page 16 Inogen One G5 Carry Bag Model # CA‐500 continued Cut angle in top of bag for  proper orientation of  device to access cannula  Velcro top flap  port Small pocket with  to access display Small front  zipper closure  pouch for extra  under front flap cannula tubing  Pouch for inserting onto  luggage handle or cart Grab Handle Perforated material at back of  bag to allow for air flow to  Cut out for power  device and battery port access ...
  • Page 17 Inogen One G5 Carry Bag Model # CA‐500, Carry Strap Details Carry strap is adjustable from 28” to 53”  Removable shoulder pad Includes a removeable shoulder pad and  swivel fasteners Swivel fasteners...
  • Page 18 Optional Accessory G5 Backpack Model # CA‐550 Grab handle or for hanging  backpack Velcro loops to hold  cannula tubing  Front pocket  w/zippered closure Cut angle in top front of  backpack for proper  Clear plastic window to  orientation of device to  view display access cannula port Side pockets Adjustable flap closure to  accommodate single or  double battery G5 intake and exhaust vents should be visible through mesh, on  front, sides and bottom front of backpack for proper air flow...
  • Page 19 G5 Backpack continued Inside view;  two back  mesh pockets,  large inside  pocket  and  small hook for  keys  Padded for  comfort Adjustable and  removable chest  strap 7” to 16” Buckles for adjusting  straps 26” to 58”...
  • Page 20 Optional Accessory External Battery Charger Model # BA‐503 When the battery is in the correct position, a solid  red light will indicate that the battery is charging. When the green light illuminates, the battery is  fully charged. ...
  • Page 21 FAA Clearance This statement is located at the bottom of each ratings label that  is applied to the G5 device and provides the necessary clearance  for airline onboard use...
  • Page 22 Inogen One G5 System Includes: • Inogen One G5 Concentrator • One Single Battery*  • (1) Nasal Cannula (7ft. Soft style) • Carry Bag • AC Power Supply w/cable • DC Power Cable • User Manual • Getting Started Guide • Getting Started Guide Bluetooth App • Warranty Statement (Invoice will state the specific warranty period) *Varies based on package sold, refer to IS‐500‐XX for details.
  • Page 23 Inogen One G5 System Packaging...
  • Page 24 Positioning of the G5 in the Market Inogen One Caire Philips Respironics ResMed Freestyle Comfort SimplyGo Mini Mobi Single/Internal Battery System Price $2,995  $2,695  $2,995  $2,295  Settings 1‐6 pulse 1‐5 pulse 1‐5 pulse 1‐4 pulse Weight w/single battery 4.7lbs 5lbs 5lbs 5.5lbs w/internal battery Dimensions w/single battery 7.19" x 8.15” x 3.26" 10" x 7.3" x 3.1" 9.4" x 8.3" x 3.6" 7.95" x 9.6" x 4.49" Sound at setting 2 38dBA 43dBA 42dBA 38dBA Single Battery: Up to 5 hours  Single Battery: up to 4 hours  Single Battery: up to 4.5 hours  Internal Battery: 6 hours  Battery Duration at setting 2 Double Battery: Up to 10 hours Double Battery: up to 8 hours Double Battery: up to 9 hours...
  • Page 25 Talking Points • Lighter than Inogen One G3. • Quieter than Inogen One G3. • Smaller than Inogen One G3. • One more setting than Inogen One G3. • Highest oxygen output per pound of any portable concentrator  cleared for use in the U.S. homecare market.
  • Page 26 Component Maintenance and Replacement Component Maintenance Replacement Filter Maintenance Gross particle filter Wash weekly Not required within 5 year life As needed indicated by alert prior to any Intake filter None performance degradation Output filter None Replace as needed As indicated by alert prior to performance Sieve bed maintenance None degradation...
  • Page 27 THANK YOU!
