Theben LUNA 121 top3 RC Operating Instructions Manual

Digital twilight
EN
switch

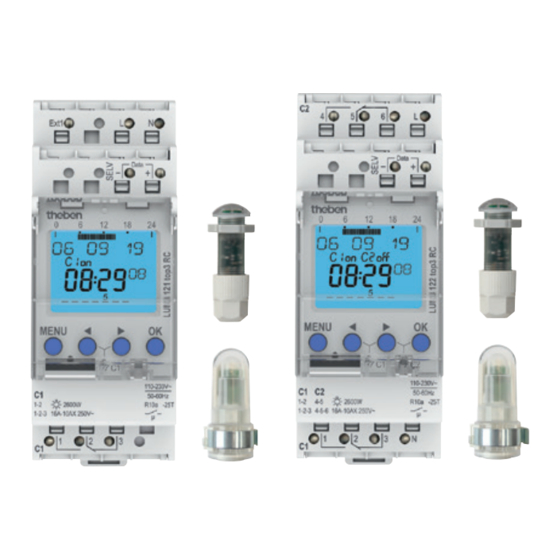

LUNA 121 top3 RC
1210130/1210230
LUNA 122 top3 RC
1220130/1220230
1. Basic safety information
WARNING
Danger of death through electric shock or fire!
Installation should only be carried out by a
¾ ¾
qualified electrician!
•
The device is designed for installation on DIN top hat
rails (in accordance with EN 60715)
2. Proper use
•
The digital twilight switch is used for lighting equipment
(streets), external stairways, display windows, entrances etc.
•
Only for use in closed, dry rooms
!
Do not use on safety devices, e.g. escape route doors, fire
safety equipment etc.
Disposal
Dispose of device in environmentally sound manner
†
¾
3. Installation and connection
Mounting the time switch
WARNING
Danger of death through electric shock or fire!
Installation should only be carried out by a
¾ ¾
qualified electrician!
click
45° cable
307529 01
Mount on DIN top hat rails (as defined in EN 60715)
†
¾
Switched voltage-free
†
¾
Ensure device cannot be switched on
† ¾
Check absence of voltage
† ¾
Earth and bypass
† ¾
Cover or shield any adjacent live components
†
¾
L N
Ext1
– +
Data
C1
1 2 3
Connecting the cable
Strip cable to 8 mm (max. 9)
† ¾
Insert cable in the open DuoFix plug-in terminal at 45°
†
¾
L 2 cables per terminal position possible
To open the DuoFix plug-in terminal, press screwdriver
† ¾
downwards
Disconnecting the cable
Use the screwdriver to push the load line connection
† ¾
opener downwards
DuoFix spring plug-
in terminal
Test connection
Spring plug-in
terminal opener
Bluetooth
OBELISK top3
(9070130)
4 5 6 L
Lux
C2
– +
Data
RC DCF
C1
1 2 3 N
N
L
L
Lux
RC DCF
N
L
L
