SAFETY WARNINGS
B E F O R E
INSTALLING THIS PUMP, READ
THIS MANUAL AND FOLLOW
A L L S A F E T Y R U L E S A N D
OPERATING INSTRUCTIONS.
SAFETY
•
CAREFULLY READ THE SAFETY MESSAGES IN
THIS MANUAL AND ON THE PUMP.
CAUTION
•
Review instructions before operating.
WARNING - ELECTRICAL PRECAUTIONS
•
All wiring, electrical connections, and system grounding must
comply with the National Electrical Code (NEC) and with any
local codes and ordinances. Employ a licensed electrician.
WARNING - RISK OF ELECTRICAL SHOCK
•
Have an electrician provide electrical power to the motor
plug receptacle.
•
Always disconnect plug from power source before
handling.
•
This product is furnished with a three prong plug for
grounding, connect only to properly grounded receptacle.
•
Do not under any circumstances remove ground plug.
•
Keep electric plug dry.
•
Do not lift pump using cord.
•
Not investigated for use in swimming pool area.
•
A ground fault interrupter (GFI) protected circuit is
recommended for use with any electrical appliance
operating in or near water.
This pump is suitable for sump water applications where
the total head requirement (including pipe friction losses)
does not exceed the pump's maximum capability. Also, the
Before installation, check your local electrical and
plumbing codes. These regulations are for your
safety.
1) Location: The pump should be installed in a location that:
a) Has adequate room for servicing.
b) Is protected from freezing.
c) Will require minimal piping to keep friction losses
as low as possible.
O P E R AT I N G
O R
APPLICATION
INSTALLATION
1

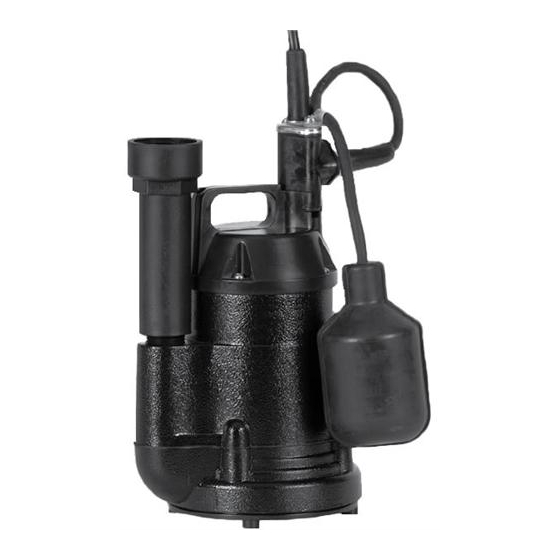

SUBMERSIBLE
SUMP PUMP
SP25A, SP33A, SP33M
maximum solids size must not be greater than the pump ca-
pability. This pump is for use as a cellar drainer, NOT FOR
USE IN EFFLUENT OR SEWAGE APPLICATIONS!
2)
WARNING
- RISK OF ELECTRICAL SHOCK
All installations must be made into a grounded outlet.
A ground fault interrupter (GFI) protected circuit is
recommended for use with any electrical appliance
operating in or near water. For installations consult a
licensed electrician.
Advertisement
Table of Contents
Related Manuals for Franklin Electric SP25A
Summary of Contents for Franklin Electric SP25A

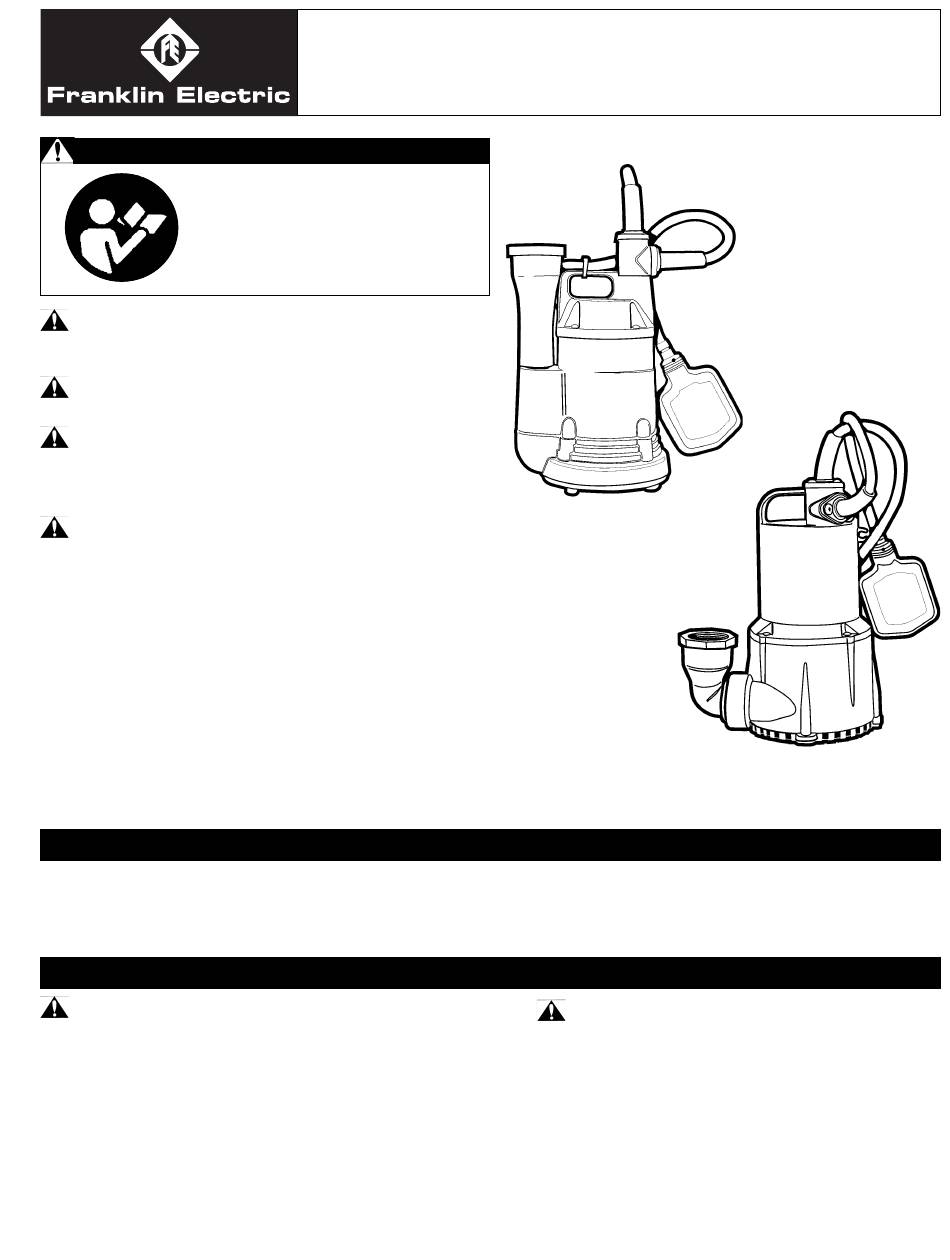

- Page 1 SUBMERSIBLE SUMP PUMP SP25A, SP33A, SP33M SAFETY WARNINGS B E F O R E O P E R AT I N G INSTALLING THIS PUMP, READ THIS MANUAL AND FOLLOW A L L S A F E T Y R U L E S A N D OPERATING INSTRUCTIONS.
-
