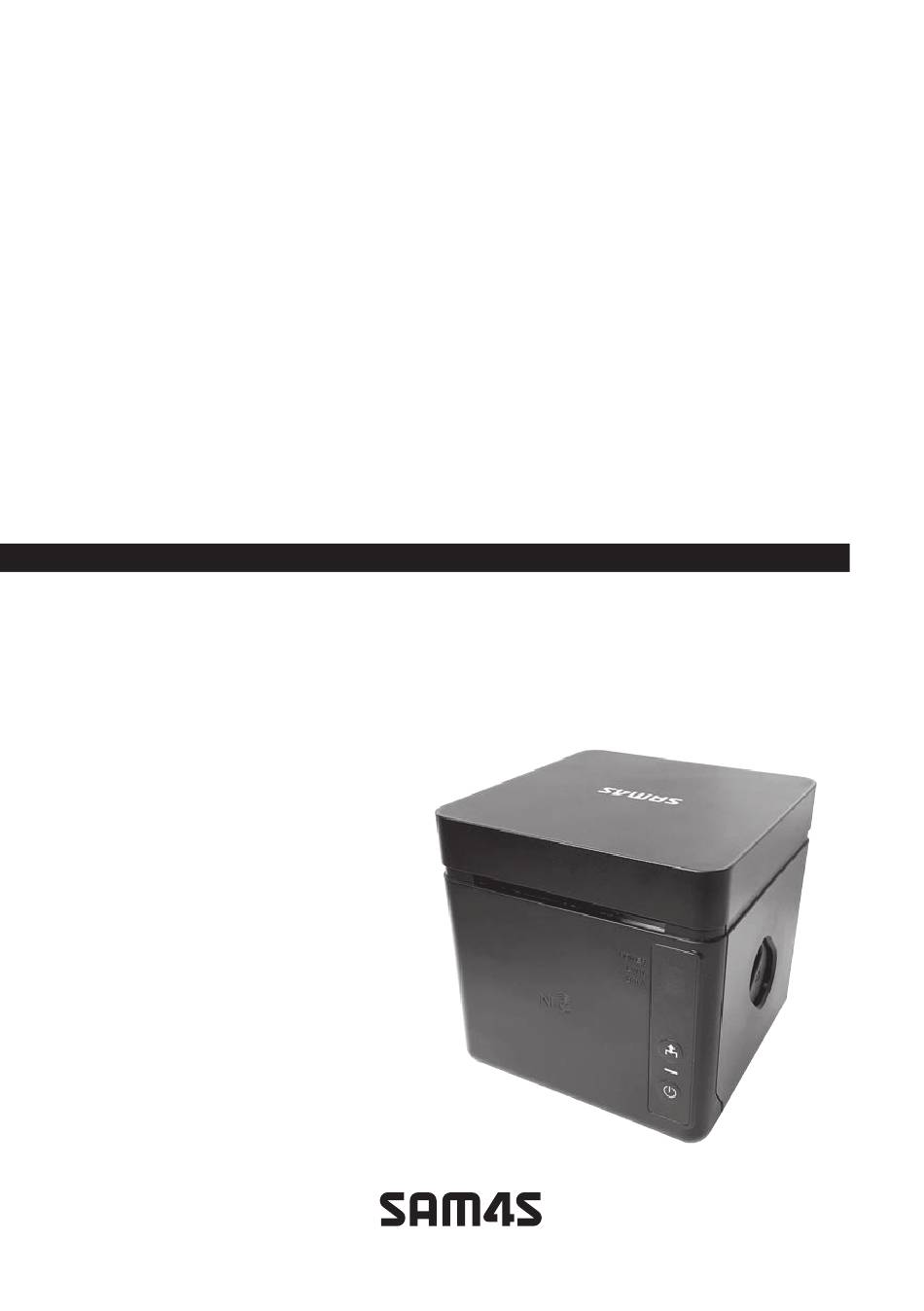

- Page 1 Gcube Series Receipt Printer User Guide All specifications are subject to change without notice.
- Page 3 Warning - U.S. This equipment has been tested and founded to comply with the limits for a Class A digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
- Page 4 ECR, POS, banking equipment, computer peripheral equipment, etc. The main features of the printer are as follows: 1. High speed printing Gcube-100 : 250mm/s, 59 lines per second(12X24 Font) Gcube-102 : 250mm/s, 66 lines per second(12X24 Font) 2. Low noise thermal printing.
- Page 5 5. Characters can be scaled up to 64 times compared to it’s original size. 6. The data buffer allows the unit to receive print data even during printing. 7. Bar code printing is possible by using a bar code command. 8.
-
Page 6: Table Of Contents
Contents Chapter 1. Setting Up the Printer ·····························7 1.1. Unpacking ································································ 7 1.2. Connecting the Cables ············································ 7 1.3. Connecting the host device ····································· 8 1.4. Connecting the Drawer ··········································· 8 1.5. Connecting the Power Supply ································· 9 1.6. Installing options & Replacing the Paper Roll ········ 10 1.6.1. -
Page 7: Chapter 1. Setting Up The Printer
CHAPTER Setting Up the Printer 1.1. Unpacking Your printer box should include these items. If any items are damaged or missing, please contact your dealer for assistance. Interface cable(option) Power-cord Roll paper Gcube Series Receipt Printer User Guide All specifications are subject to change without notice. Gcube Series Operator’s AC Adapter... -
Page 8: Connecting The Host Device
1.3. Connecting the host device You need the appropriate interface cable. 1. Plug the cable connector securely into the printer’s interface connector. 2. Tighten the screws on both sides of the cable connector. 3. Attach the other end of the cable to the host device. 1.4. -
Page 9: Connecting The Power Supply
1.5. Connecting the Power Supply WARNING : Make sure that you use the power supply provided with the printer or equivalent. CAUTION : When connecting or disconnecting the power supply from the printer, make sure that the power supply is not plugged into an electrical outlet. Otherwise you may damage the power supply or the printer. -
Page 10: Installing Options & Replacing The Paper Roll
1.6. Installing options & Replacing the Paper Roll 1.6.1. Wall Mount Installation 1. Using the bracket, mark it on the wall where you want to install the printer. 2. Make 3 holes in the marked places. 3. Install the wall mount bracket with screws as in picture 3. 4. -
Page 11: Paper Roll Installation
1.6. Installing options & Replacing the Paper Roll 1.6.2. Paper Roll Installation NOTES : Be sure to use paper rolls that meet the specifications. Do not use paper rolls that have the paper end glued to the core. 1. Open the paper roll cover by pressing the cover-open button. ➊... -
Page 12: Adjustments And Settings
1.7. Adjustments and Settings Printer settings can be changed using NFC APP 1.7.1 How to install APP 1. Configure NFC Function from User’s Smart Phone into Read/Write, P2P Mode. (not workable in a Card Mode) 2. Tag your cellphone horizontally on NFC logo with the cellphone screen unlocked. -
Page 13: Change Device Setting
1.7. Adjustments and Settings 1.7.2 Change device setting 1. In Device Settings Menu, Run a Config the setting values. 2. Change setting values you wish to change on a Setting screen. After completion of setting, touch the upper screen. 3. If the message “Tag on Gcube” appears in the middle of screen, then tag asmart phone on Printer. -
Page 14: Using The Printer
1.8. Using the Printer 1.8.1. Control Panel POWER LINK DATA 1.8.2. Button •POWER Button Press the POWER button to turn on the printer. "-"is displayed on the FND. •FEED Button Press the FEED button once to advance paper one line. You can also hold down the FEED button to feed paper continuously. - Page 15 MEMO OPERATOR’S Manual...
-
Page 16: Chapter 2. Appendix
CHAPTER APPENDIX 2.1. Adjusting the Paper Near-End Sensor Location The sensor has five sensitivity settings. 1. Push the open button and open the printer cover. 2. If you find there is too much paper remaining when the sensor is triggered, set the near end sensor to position #4 or #5. -
Page 17: Printer Head Cleaning
2.2. Printer Head Cleaning Paper dust on the heating elements may lower the printing quality. In this case, clean the printer head as follows: NOTES : Before cleaning the inside of printer or the head, make sure the power is off. 1. -
Page 18: Error Status And Error Resolution
2.3. Error Status and Error Resolution When the printer error occurs, the alphabet corresponding to the error condition is shown on FND Error Status Indicator includes: • Cutter Jam When ERROR FND indicates "J", the printer is on Cutter Jam error status. - Page 19 2.3. Error Status and Error Resolution When the printer error occurs, the alphabet corresponding to the error condition is shown on FND Error Status Indicator includes: •Paper Out Error The buzzer beeps “ Beep---,Beep---” and When the printer cover open by pressing the cover open button, the buzzer will stop.
-
Page 20: Specification
Thermal Line Printing 180DPI (Gcube-100) Resolution 203DPI (Gcube-102) Printing width 72mm Paper width 80mm Font A : 42(Gcube-100), 48(Gcube-102) Characters per line(default) Font B : 56(Gcube-100), 64(Gcube-102) 59 lines/sec(250mm/sec, Gcube-100) Printing speed 66 lines/sec(250mm/sec, Gcube-102) Receive buffer size Max 64kbytes... - Page 21 MEMO OPERATOR’S Manual...
- Page 22 MEMO Gcube Series Receipt Printer...
- Page 24 Gcube Series Receipt Printer OPERATOR’S Manual JK68-61108A(Rev 01)
