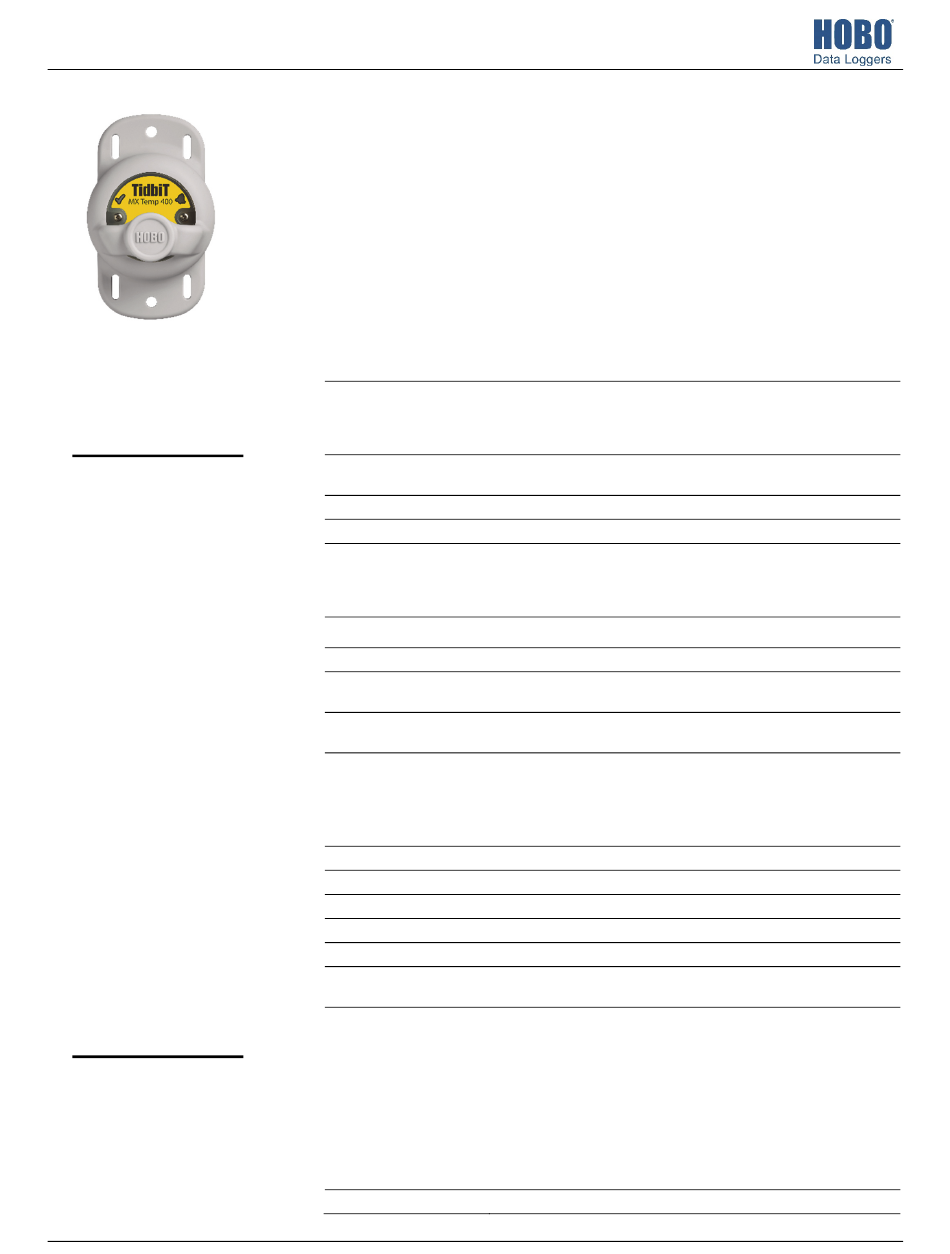

HOBO® TidbiT® MX Temp 400 (MX2203) and
Temp 5000 (MX2204) Logger Manua
MX2203 Model Shown

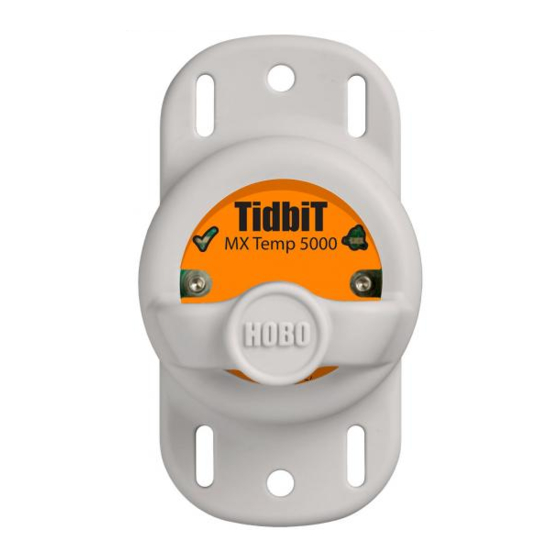

HOBO TidbiT MX Temp
Logger
Models:
• MX Temp 400 (MX2203)
• MX Temp 5000
(MX2204)
Items included:
• Protective boot
Required Items:
• HOBOconnect app
• Mobile device with
Bluetooth and iOS,
iPadOS®, or Android™
Accessories:
• Solar radiation shield
(RS1 or M-RSA) for
MX2203
• Mounting bracket for
solar radiation shield
(MX2200-RS-BRACKET),
for use with MX2203
models
• Replacement O-rings
(MX2203-ORING) for
MX2203
• Replacement boots for
both models in gray
(BOOT-MX220x-GR),
black (BOOT-MX220x-
BK), or white (BOOT-
MX220x-WH)
21537-L
l
HOBO TidbiT MX Temp loggers measure temperature in streams, lakes, oceans, coastal
habitats, and soil environments. Housed in a protective boot, these rugged loggers are
designed for extended deployments in fresh or salt water at depths up to 400 ft (MX2203) or
5,000 ft (MX2204). The loggers use Bluetooth® Low Energy for wireless communication with a
mobile device and are equipped with an optional water detection feature that automatically
turns Bluetooth advertising off when the logger is submerged in water, thereby preserving
battery power. Using the HOBOconnect™ app, you can easily configure the loggers, download
logged data to your phone or tablet, or automatically upload the data to HOBOlink® for further
analysis. You can also configure the loggers to calculate statistics, set up alarms to trip at
specific thresholds, or enable burst logging in which data is logged at a faster interval when
sensor readings are above or below certain limits.
Specifications
Temperature Sensor
Range
Accuracy
Resolution
Drift
Response Time
Logger
Logger Operating Range
Buoyancy (Fresh Water)
Waterproof
Water Detection
Radio Power
Transmission Range
Wireless Data Standard
Logging Rate
Time Accuracy
Battery
Battery Life
Memory
MX2203: -20° to 70°C (-4° to 158°F) in air; -20° to 50°C (-4° to 122°F) in
water
MX2204: -20° to 70°C (-4° to 158°F) in air; -20° to 50°C (-4° to 122°F) in
water, maximum sustained temperature in water 30°C (86°F)
±0.25°C from -20° to 0°C (±.45°F from -4° to 32°F)
±0.2°C from 0° to 70°C (±0.36°F from 32° to 158°F)
0.01°C (0.018°F)
<0.1°C (0.18°F) per year
MX2203: 17 minutes typical to 90% in air moving 1 m/s, unmounted;
7 minutes typical to 90% in stirred water, unmounted
MX2204: 15 minutes typical to 90% in air moving 1 m/s, unmounted;
4 minutes typical to 90% in stirred water, unmounted
-20° to 70°C (-4° to 158°F)
MX2203: 3.1 g (0.11 oz) negative
MX2204: 7.6 g (0.27 oz) negative
MX2203: To 122 m (400 ft)
MX2204: To 1,524 m (5,000 ft)
Water conductivity level of 100 µS/cm or greater necessary for reliable
detection of water. Deionized water or water below 100 µS/cm may
not be detected.
The water conductivity circuit may not reliably detect water that has
frozen around the electrodes, i.e. below 0°C (32°F).
1 mW (0 dBm)
Approximately 30.5 m (100 ft) line-of-sight
Bluetooth Low Energy (Bluetooth Smart)
1 second to 18 hours
±1 minute per month at 25°C (77°F)
CR2477 3V lithium, user replaceable in MX2203, non-replaceable in
MX2204
3 years, typical at 25°C (77°F) with logging interval of 1 minute and
Bluetooth Always Off disabled in software.
5 years, typical at 25°C (77°F) with logging interval of 1 minute and
Bluetooth Always Off or Bluetooth Off Water Detect enabled in
software.
Faster logging intervals and statistics sampling intervals, burst logging,
remaining connected with the app, excessive downloads, and paging
may impact battery life.
To ensure proper battery installation, see Battery Information for
detailed instructions on replacing the battery in the MX2203 logger.
96,000 measurements
