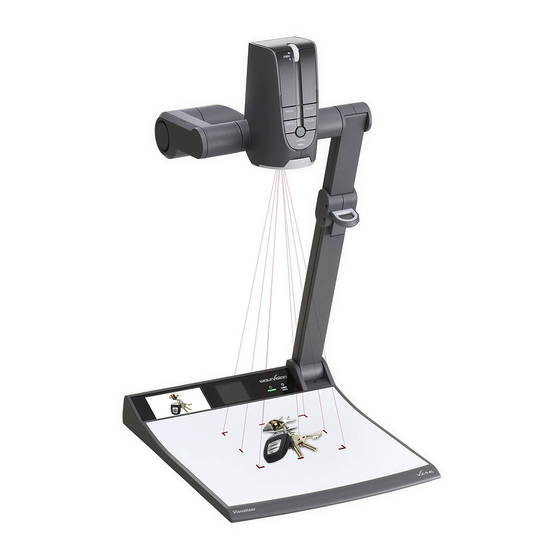

WolfVision VZ-9.4 Quick Setup Manual

Quick Setup Guide - First Steps

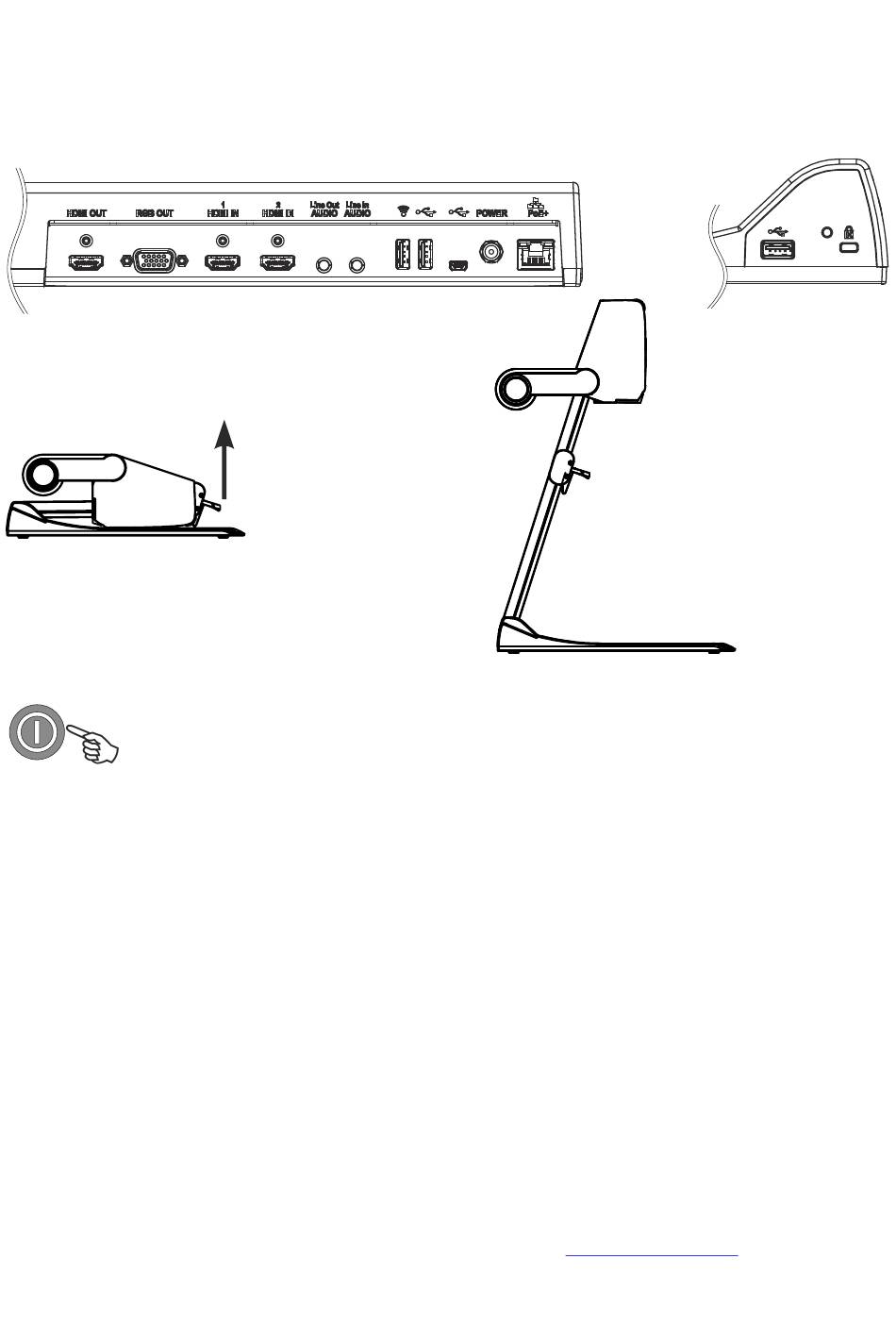

Before Starting

Connect the power supply and establish all needed cable connections.
Raise the arm up to turn the camera to working position.
The Visualizer will start automatically.

Power Key

The Visualizer will be switched on and off by raising the arm up and down.
Additionally, the Visualizer can be switched on and off by using the POWER key quickly.

Basic Menu Settings

When the Visualizer is switched on the first time, the Quick Setup Guide will be started automatically on-
screen (visible on built-in display HDMI and RGB output). Use the arrow keys to navigate through the menu.

Language

Select the desired language for the on-screen menu.

Ethernet Settings

Setup the network interface according your infrastructure.

Time Settings

Set time and date.

Audio

Select the desired audio inputs and outputs

Feature Pack

The Visualizer offers the possibility to upgrade using an optional Feature Pack which adds additional
functionality. This upgrade will be activated by loading a valid Feature Pack code.
Depending on your order, the Feature Pack license code will be delivered together with the unit.
The Feature Pack is not pre-installed and user activation is required!
Consult the user manual to get the Feature Pack activated.
Manuals, Firmware, Apps, Software, Dimension Drawings,... @
Printed in Austria - August 2016
